SKU: WKS.1/16X1/4IN

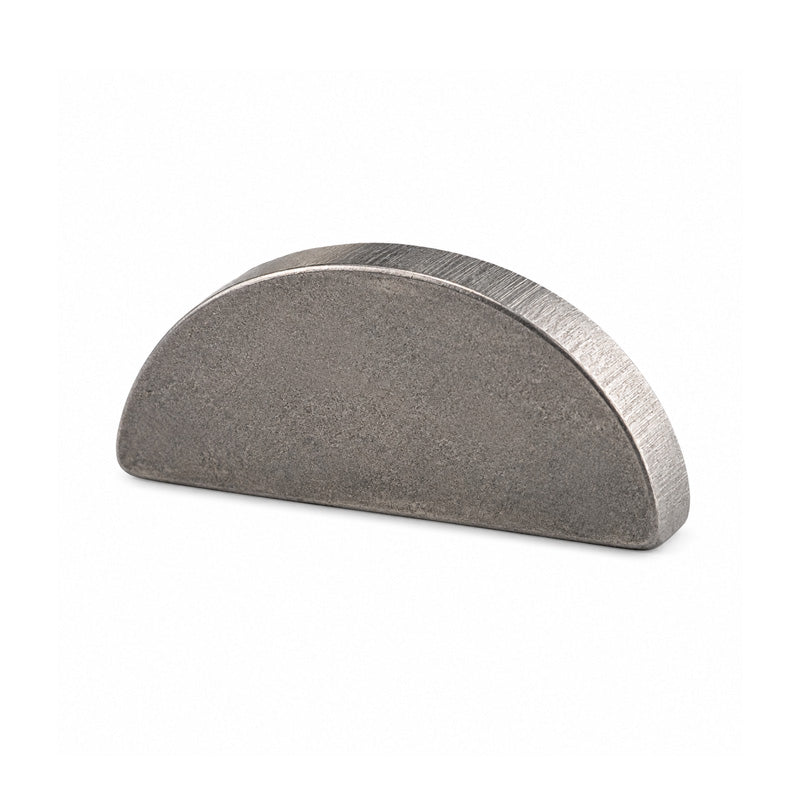

Imperial Carbon Steel BS46 Woodruff Key 1/16x1/4x1/64 inch
Imperial Carbon Steel BS46 Woodruff Key 1/16x1/4x1/64 inch
Regular price
$1.90
ex VAT
Regular price
Sale price
$1.90
ex VAT
In stock
Price Break
5+
$1.00
10+
$0.86
20+
$0.79
50+
$0.72
100+
$0.57
500+
$0.50
1000+
$0.43
Quantity
Couldn't load pickup availability
Description
Description
Carbon Steel Woodruff Key Steels: These semicircular keys are to be installed into circular segment keyways. The benefit of using this style of key is the elimination of milling near shaft shoulders. Also, to remove woodruff keys it takes just a simple hammer blow to dislodge. These keys are manufactured from carbon steel (DIN6888 or C45+C).
Benefits: Cost-effective, quick removal, quick installation
- Brand / Quality:
- Simply Key Steel - High Quality
- Outside Diameter:
- 6.35mm = 0.25 (1/4) inch
- Width:
- 1.59mm = 0.063 (1/16) inch
- Height:
- Approx 0.1065 inch
- Length:
- Approx 0.243 inch
- Material:
- Carbon Steel
Technical
Technical
| Nominal Diameter A | 1/4 inch |
|---|---|
| Actual Length L (min) | 0.238 inch |
| Actual Length L (max) | 0.248 inch |
| Width C | 1/16 inch |
| Height B (min) | 0.104 inch |
| Height B (max) | 0.109 inch |
| Distance Below Center | 1/64 inch |
| Material | Carbon Steel C45+C / BS46 |
| Weight per key (Approx) | 0.001 kg |
