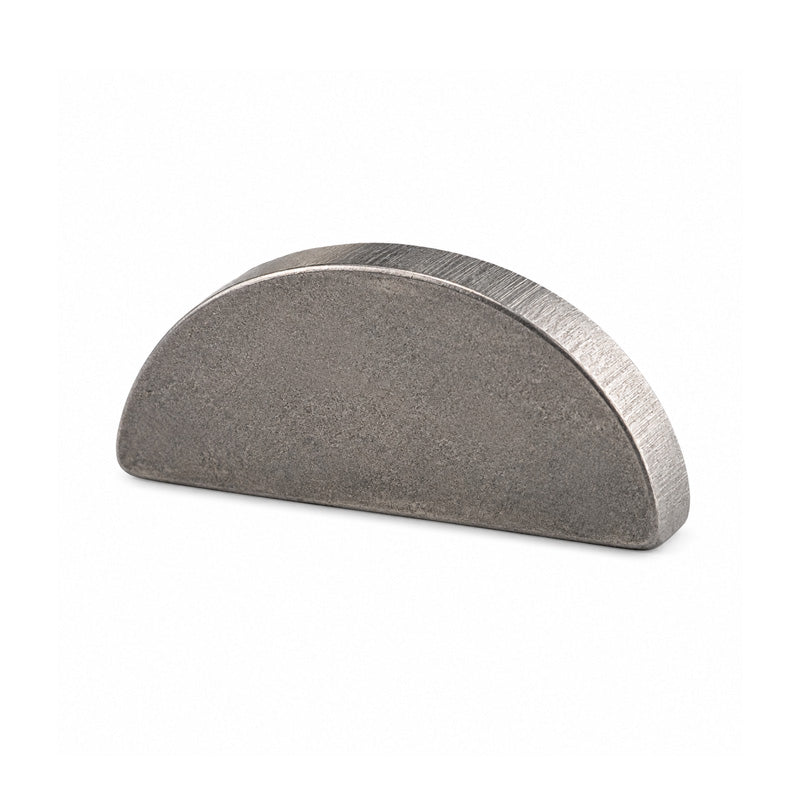

Metric Carbon Steel DIN6888 Woodruff Key 3x3.7x10mm

Carbon Steel Woodruff Key Steels: These semicircular keys are to be installed into circular segment keyways. The benefit of using this style of key is the elimination of milling near shaft shoulders. Also, to remove woodruff keys it takes just a simple hammer blow to dislodge. These keys are manufactured from carbon steel (DIN6888 or C45+C).
Benefits: Cost-effective, quick removal, quick installation

Brand / Quality:

Simply Key Steel - High Quality

Outside Diameter:

10mm

Width:

3mm

Height:

3.7mm

Length:

9.66mm

Material:

Carbon Steel
