• Metric Carbon Steel DIN6888 Woodruff Key 6x11x28mm
1 1

SKU: WKS.6X11X28MM

Metric Carbon Steel DIN6888 Woodruff Key 6x11x28mm

Metric Carbon Steel DIN6888 Woodruff Key 6x11x28mm
$2.54 ex VAT
$2.54 ex VAT
Sale Sold out

In stock

Price Break
5+ $1.34
10+ $1.15
20+ $1.05
50+ $0.96
100+ $0.76
500+ $0.67
1000+ $0.57

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

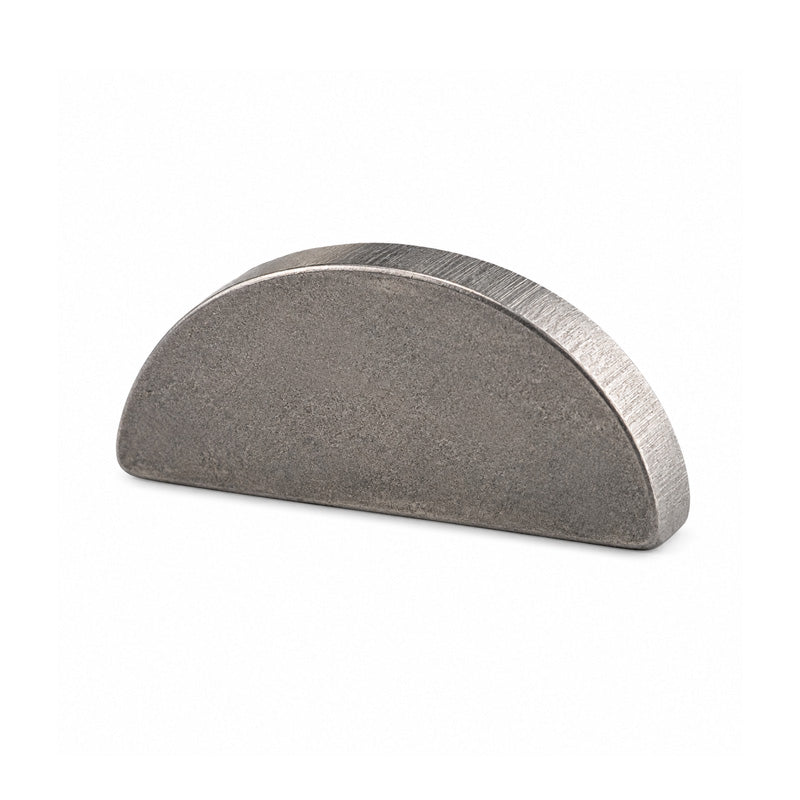

Carbon Steel Woodruff Key Steels: These semicircular keys are to be installed into circular segment keyways. The benefit of using this style of key is the elimination of milling near shaft shoulders. Also, to remove woodruff keys it takes just a simple hammer blow to dislodge. These keys are manufactured from carbon steel (DIN6888 or C45+C).
Benefits: Cost-effective, quick removal, quick installation

Brand / Quality:
Simply Key Steel - High Quality
Outside Diameter:
28mm
Width:
6mm
Height:
11mm
Length:
27.35mm
Material:
Carbon Steel
Technical
Width C 6mm (Tol -0.036mm)
Height B 11mm (Tol -0.18mm)
Nominal Diameter A 28mm (Tol -0.2mm)
Actual Length L 27.35mm
Material Carbon Steel C45+C / DIN6888
Weight per key (Approx) 0.0144144 kg
