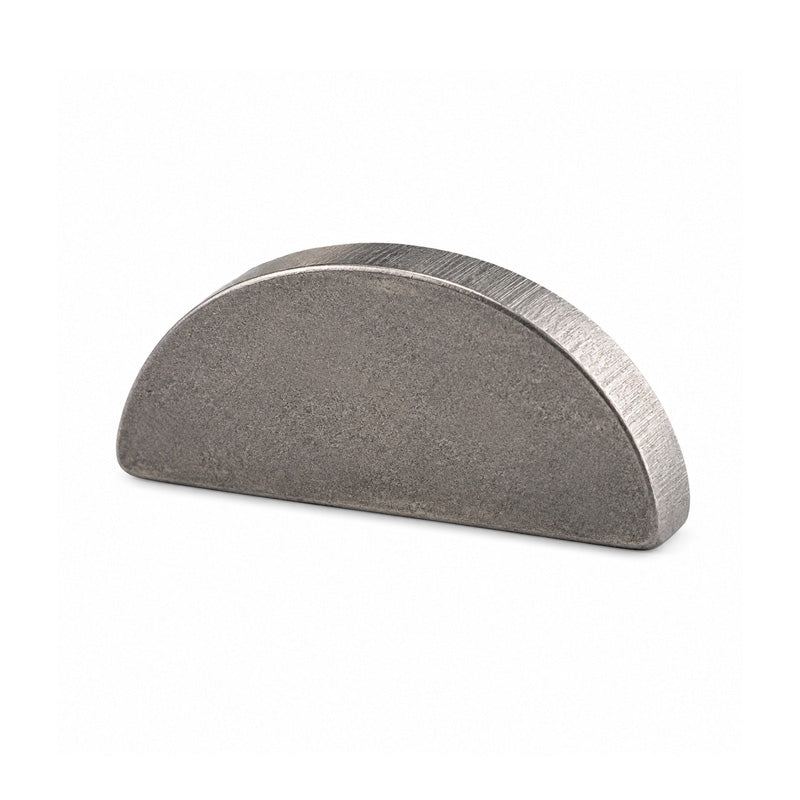

• Metric Carbon Steel DIN6888 Woodruff Key 6x7.5x19mm
1 1

SKU: WKS.6X7.5X19MM

Metric Carbon Steel DIN6888 Woodruff Key 6x7.5x19mm

Metric Carbon Steel DIN6888 Woodruff Key 6x7.5x19mm
$1.58 ex VAT
$1.58 ex VAT
Sale Sold out

In stock

Price Break
5+ $0.83
10+ $0.71
20+ $0.65
50+ $0.60
100+ $0.48
500+ $0.42
1000+ $0.36

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Carbon Steel Woodruff Key Steels: These semicircular keys are to be installed into circular segment keyways. The benefit of using this style of key is the elimination of milling near shaft shoulders. Also, to remove woodruff keys it takes just a simple hammer blow to dislodge. These keys are manufactured from carbon steel (DIN6888 or C45+C).
Benefits: Cost-effective, quick removal, quick installation

Brand / Quality:
Simply Key Steel - High Quality
Outside Diameter:
19mm
Width:
6mm
Height:
7.5mm
Length:
18.57mm
Material:
Carbon Steel
Technical
Width C 6mm (Tol -0.030mm)
Height B 7.5mm (Tol -0.15mm)
Nominal Diameter A 19mm (Tol -0.1mm)
Actual Length L 18.57mm
Material Carbon Steel C45+C / DIN6888
Weight per key (Approx) 0.006669 kg
