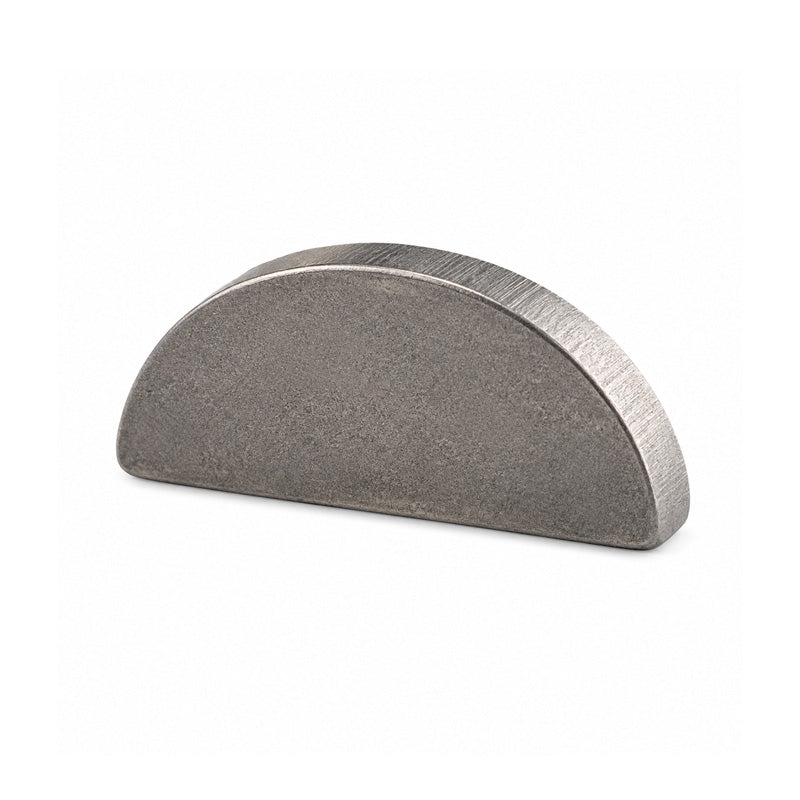

• Imperial Stainless Steel A4-316 Woodruff Key 3/32x1/2x3/64 inch
1 1

SKU: WKSS.3/32X1/2IN

Imperial Stainless Steel A4-316 Woodruff Key 3/32x1/2x3/64 inch

Imperial Stainless Steel A4-316 Woodruff Key 3/32x1/2x3/64 inch
$6.03 ex VAT
$6.03 ex VAT
Sale Sold out

In stock

Price Break
5+ $3.18
10+ $2.72
20+ $2.50
50+ $2.27
100+ $1.82
500+ $1.59
1000+ $1.36

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Stainless Steel Woodruff Key Steels: These semicircular keys are to be installed into circular segment keyways. The benefit of using this style of key is the elimination of milling near shaft shoulders. Also, to remove woodruff keys it takes just a simple hammer blow to dislodge. These keys are manufactured from stainless steel (A4-316).
Benefits: Cost-effective, quick removal, quick installation

Brand / Quality:
Simply Key Steel - High Quality
Outside Diameter:
12.7mm = 0.5 (1/2) inch
Width:
2.38mm = 0.094 (3/32) inch
Height:
Approx 0.2005 inch
Length:
Approx 0.486 inch
Material:
Stainless Steel
Technical
Nominal Diameter A 1/2 inch
Actual Length L (min) 0.481 inch
Actual Length L (max) 0.491 inch
Width C 3/32 inch
Height B (min) 0.198 inch
Height B (max) 0.203 inch
Distance Below Center 3/64 inch
Material Stainless Steel A4-316 / A4-316
Weight per key (Approx) 0.001 kg
