• Metric Stainless Steel A4-316 Woodruff Key 5x9x22mm - Allow 2-3 Days
1 1

SKU: WKSS.5X9X22MM

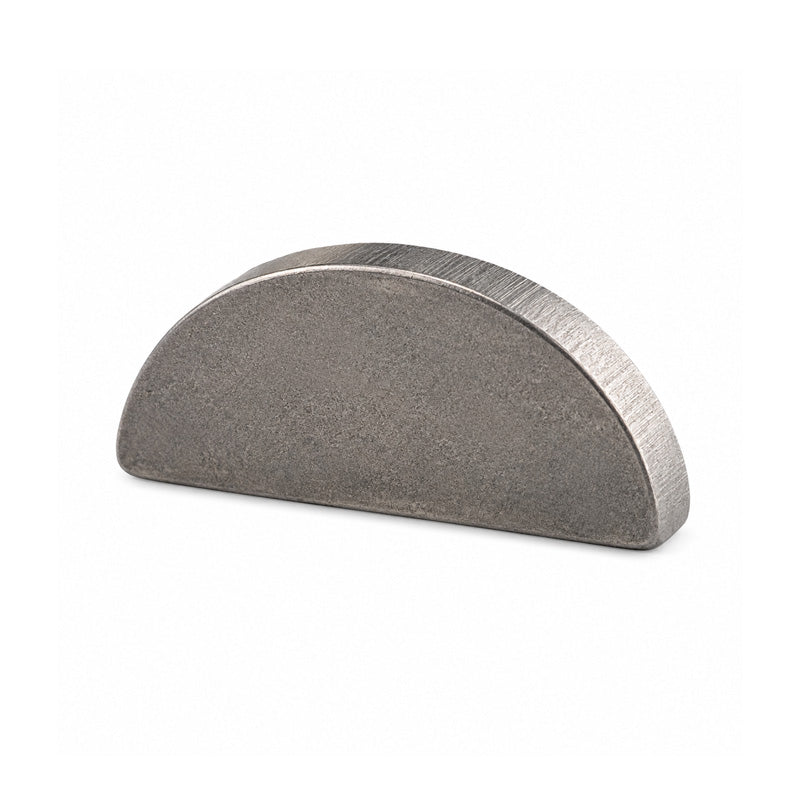

Metric Stainless Steel A4-316 Woodruff Key 5x9x22mm - Allow 2-3 Days

Metric Stainless Steel A4-316 Woodruff Key 5x9x22mm - Allow 2-3 Days
$3.80 ex VAT
$3.80 ex VAT
Sale Sold out

In stock

Price Break
5+ $2.00
10+ $1.72
20+ $1.57
50+ $1.43
100+ $1.14
500+ $1.00
1000+ $0.86

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Stainless Steel Woodruff Key Steels: These semicircular keys are to be installed into circular segment keyways. The benefit of using this style of key is the elimination of milling near shaft shoulders. Also, to remove woodruff keys it takes just a simple hammer blow to dislodge. These keys are manufactured from stainless steel (A4-316).
Benefits: Cost-effective, quick removal, quick installation

Brand / Quality:
Simply Key Steel - High Quality
Outside Diameter:
22mm
Width:
5mm
Height:
9mm
Length:
21.63mm
Material:
Stainless Steel
Technical
Width C 5mm (Tol -0.030mm)
Height B 9mm (Tol -0.15mm)
Nominal Diameter A 22mm (Tol -0.1mm)
Actual Length L 21.63mm
Material Stainless Steel A4-316 / A4-316
Weight per key (Approx) 0.00792 kg
Reviews
View full details
