SKU: WMOF-1218-20

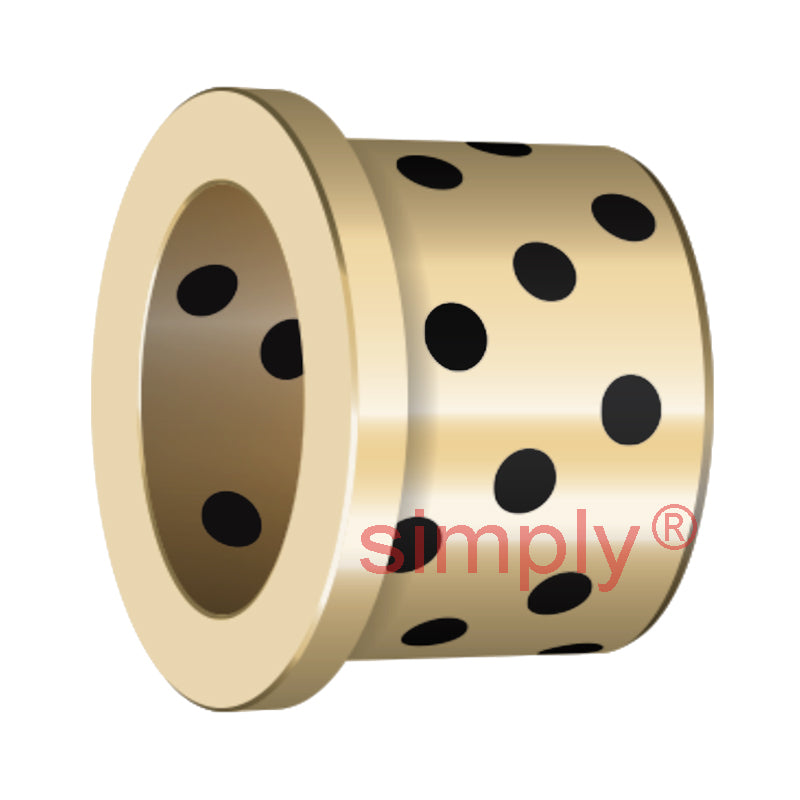

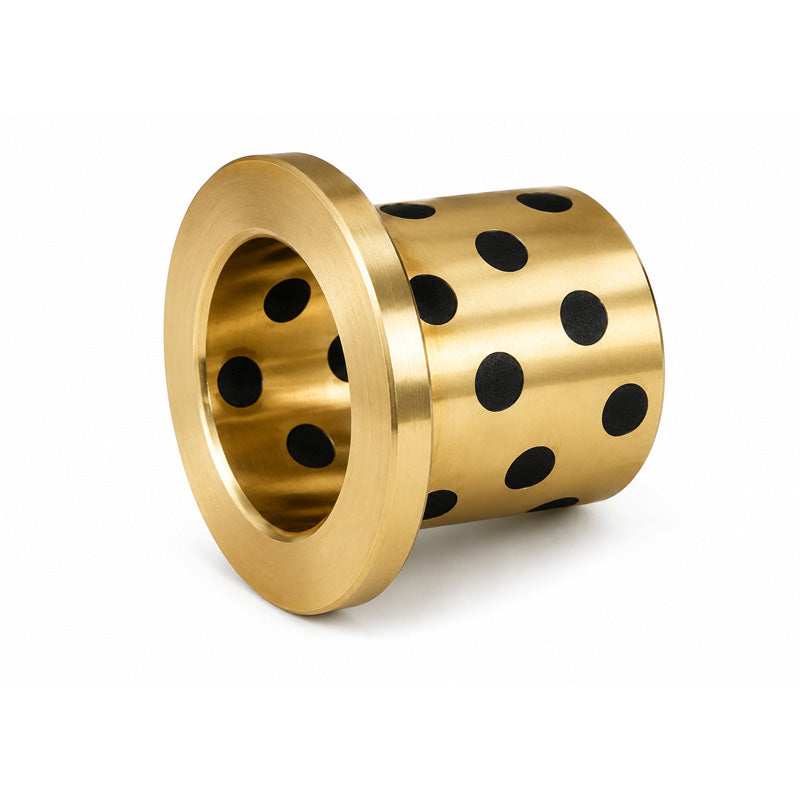

WMOF121820 Flanged Oilless Bronze Bush 12x18x20mm
WMOF121820 Flanged Oilless Bronze Bush 12x18x20mm
Regular price
$22.20
ex VAT
Regular price
Sale price
$22.20
ex VAT
Equivalent to: WMOF121820
In stock
Price Break
3+
$14.87
5+
$14.03
9+
$13.87
19+
$13.70
49+
$13.53
74+
$13.37
99+
$12.53
199+
$12.36
249+
$12.20
499+
$12.03
999+
$11.70
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Oilless Bronze Bush Bearings: These bushes are manufactured from CuZn25Al6Mn4 high-strength bronze with specially formed solid graphite lubricant inserts. These bushes can operate at temperatures up to +300 deg C while also capable of cryogenic temperatures as low as -200 deg C. Also, these bushes provide outstanding resistance to chemicals and corrosion. Suitable for dry, wet or humid environments.
Benefits: Lubricated for life, greatly reduces the cost of maintenance, outstanding chemical and corrosion resistance
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 18mm
- Length:
- 20mm
- Item Type:
- Flanged
Technical
Technical
| d | 12mm |
|---|---|
| D | 18mm |
| L | 20mm |
| F | 25mm |
| L1 | 3mm |
| PV | 3.3 max (N/mm? x m/s) |
| Static load | 100 max (N/mm?) |
| Sliding speed | 0.3 max (m/s) |
| Operating temperature | Up to 300 (?C) |
| Coefficient of thermal expansion | 19 x 10-5/?C |
| Coefficient of friction | 0.16 |
| Hardness | 210 min (HB) |
| Tensile strength | 750 min (N/mm?) |
| Elongation | 12 min (%) |
| Density | 8 (g/cm?) |
| Max rpm | 397.887 rpm |
| Max load | 2446.483 kg |
| Housing Tolerance | H7 |
