SKU: WMOF-5060-40

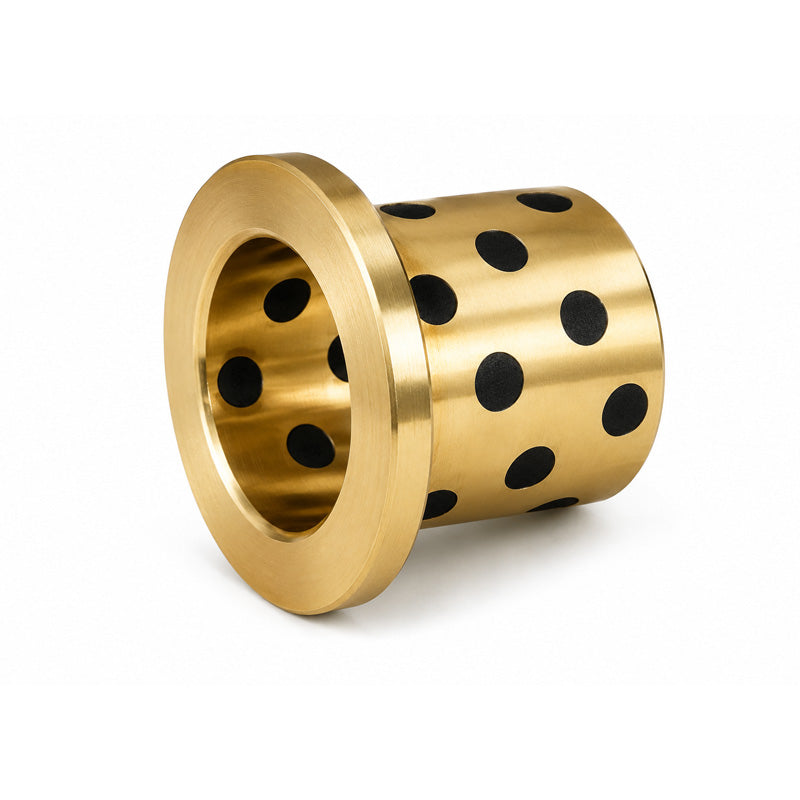

WMOF506040 Flanged Oilless Bronze Bush 50x60x40mm - Allow 2-3 Days
WMOF506040 Flanged Oilless Bronze Bush 50x60x40mm - Allow 2-3 Days
Regular price
$47.07
ex VAT
Regular price
Sale price
$47.07
ex VAT
Equivalent to: WMOF506040
In stock
Price Break
3+
$35.07
5+
$33.65
9+
$32.94
19+
$31.88
49+
$31.17
74+
$29.40
99+
$24.79
199+
$0.00
249+
$0.00
499+
$0.00
999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
Oilless Bronze Bush Bearings: These bushes are manufactured from CuZn25Al6Mn4 high-strength bronze with specially formed solid graphite lubricant inserts. These bushes can operate at temperatures up to +300 deg C while also capable of cryogenic temperatures as low as -200 deg C. Also, these bushes provide outstanding resistance to chemicals and corrosion. Suitable for dry, wet or humid environments.
Benefits: Lubricated for life, greatly reduces the cost of maintenance, outstanding chemical and corrosion resistance
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 60mm
- Length:
- 40mm
- Item Type:
- Flanged
Technical
Technical
| d | 50mm |
|---|---|
| D | 60mm |
| L | 40mm |
| F | 75mm |
| L1 | 5mm |
| PV | 3.3 max (N/mm? x m/s) |
| Static load | 100 max (N/mm?) |
| Sliding speed | 0.3 max (m/s) |
| Operating temperature | Up to 300 (?C) |
| Coefficient of thermal expansion | 19 x 10-5/?C |
| Coefficient of friction | 0.16 |
| Hardness | 210 min (HB) |
| Tensile strength | 750 min (N/mm?) |
| Elongation | 12 min (%) |
| Density | 8 (g/cm?) |
| Max rpm | 95.493 rpm |
| Max load | 20387.36 kg |
| Housing Tolerance | H7 |
