• WS81108 Budget Shaft Washer Series WS 40x60x3.5mm
1 1

SKU: WS81108-EU

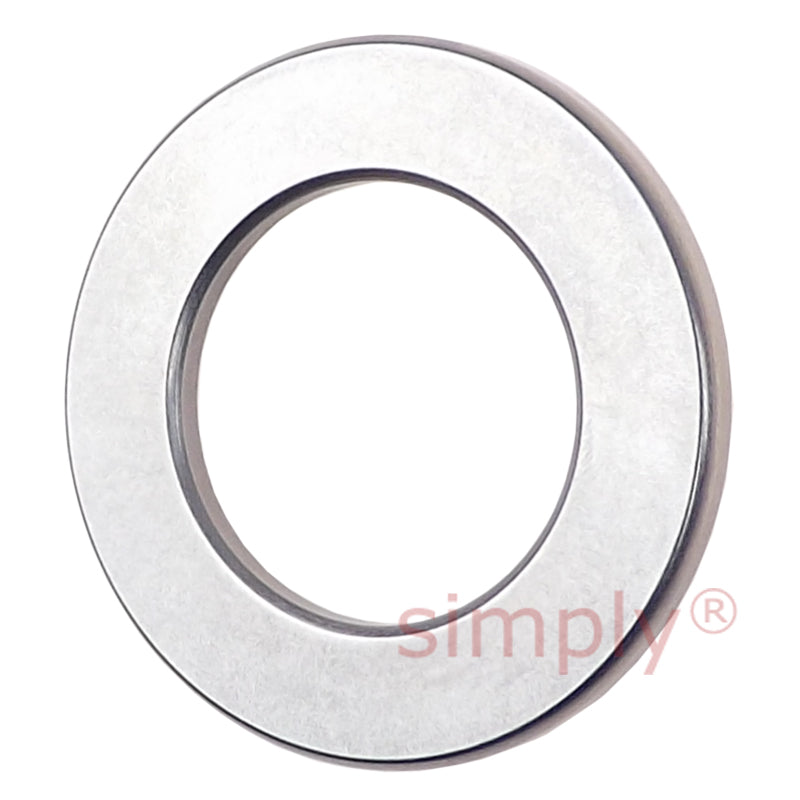

WS81108 Budget Shaft Washer Series WS 40x60x3.5mm

WS81108 Budget Shaft Washer Series WS 40x60x3.5mm
$19.56 ex VAT
$19.56 ex VAT
Sale Sold out

In stock

Price Break
10+ $13.10
19+ $12.37
29+ $12.22
39+ $12.07
49+ $11.92
74+ $11.78
99+ $11.04
199+ $10.89
249+ $10.75
499+ $10.60
999+ $10.30

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Budget WS Type Housing Washers: An accurately machined washer component to be used with needle roller thrust assemblies providing precise centering of the housing or raceway washer. These are thicker than the LS and AS series of washers thus providing a very rigid assembly.
Benefits: Accurately machined, provides centering & rigidity, thicker cross section, inexpensive cost effective solution.

Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
40mm
Outside Diameter:
60mm
Width:
3.5mm
Technical
d 40mm
d1 60mm
D 60mm
D1 42mm
B 3.5mm
r1r2 0.6mm
Weight 40 g
