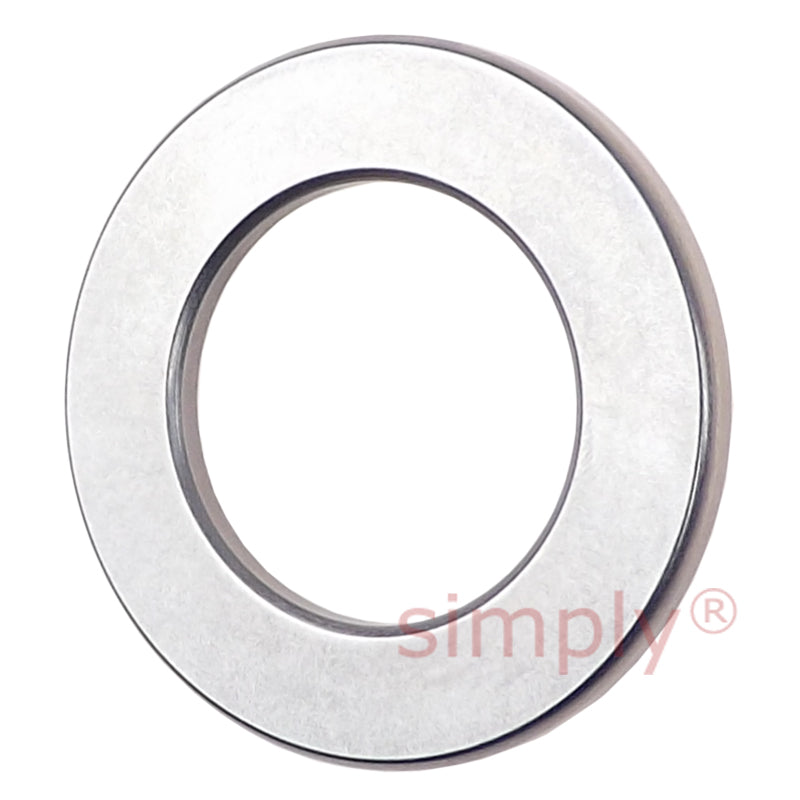

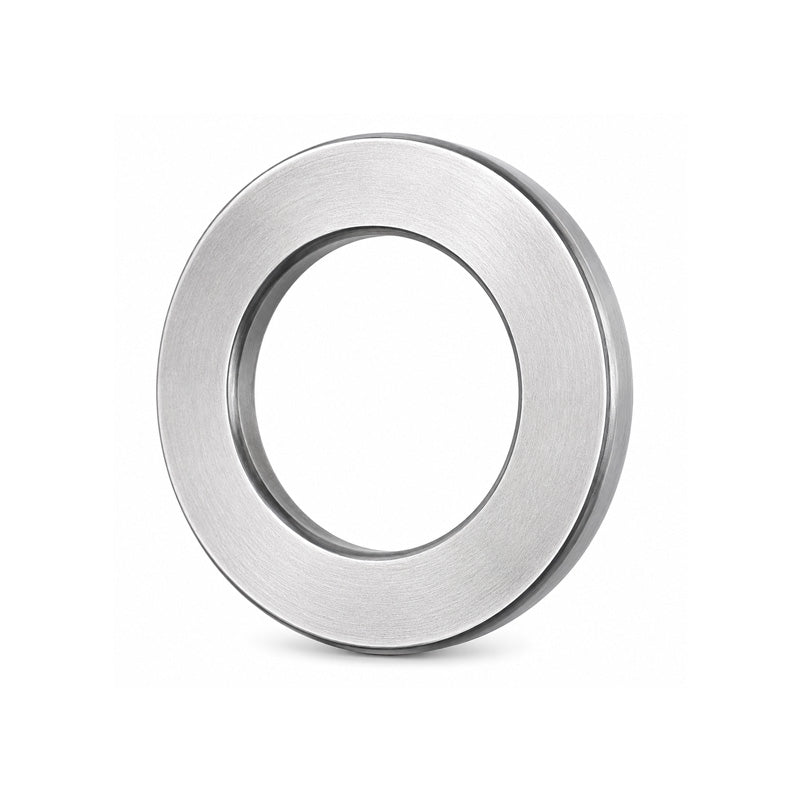

• WS81130 Budget Shaft Washer Series WS 150x188x9.5mm
1 1

SKU: WS81130-EU

WS81130 Budget Shaft Washer Series WS 150x188x9.5mm

WS81130 Budget Shaft Washer Series WS 150x188x9.5mm
$197.30 ex VAT
$197.30 ex VAT
Sale Sold out

In stock

Price Break
10+ $132.16
19+ $124.73
29+ $123.25
39+ $121.76
49+ $120.28
74+ $118.79
99+ $111.37
199+ $109.88
249+ $108.40
499+ $106.91
999+ $103.94

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Budget WS Type Housing Washers: An accurately machined washer component to be used with needle roller thrust assemblies providing precise centering of the housing or raceway washer. These are thicker than the LS and AS series of washers thus providing a very rigid assembly.
Benefits: Accurately machined, provides centering & rigidity, thicker cross section, inexpensive cost effective solution.

Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
150mm
Outside Diameter:
190mm
Width:
9.5mm
Technical
d 150mm
d1 188mm
D 190mm
D1 152mm
B 9.5mm
r1r2 1mm
Weight 795 g
