SKU: WSZC50-JCS

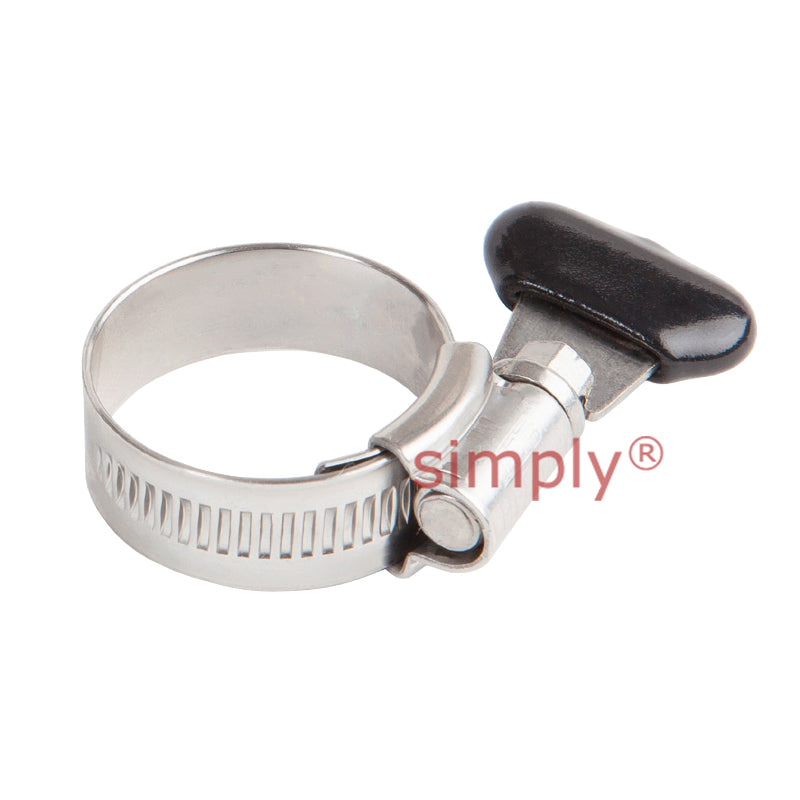

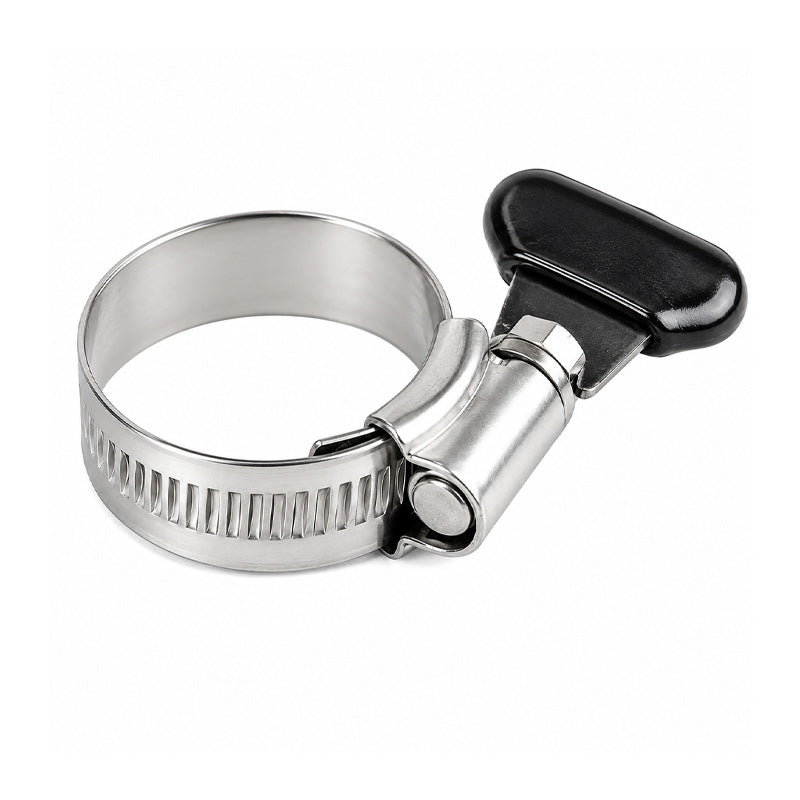

JCS WSZC50 Zinc Plated Steel Hi-Grip Wing Screw Adjustment Range 35-50mm Band Width 13mm
JCS WSZC50 Zinc Plated Steel Hi-Grip Wing Screw Adjustment Range 35-50mm Band Width 13mm
Regular price
$6.59
ex VAT
Regular price
Sale price
$6.59
ex VAT
In stock
Price Break
3+
$4.41
5+
$4.17
9+
$4.12
19+
$4.07
49+
$4.02
74+
$3.97
99+
$3.72
199+
$3.67
249+
$3.62
499+
$3.57
999+
$3.47
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Zinc Plated Steel Hi-Grip Wing Screw: Specifically designed for frequently removed hoses, the unique dovetail locking and side lugs of the wing plate ensure excellent sealing and longevity. Used for a wide variety of domestic, automotive and industrial applications, the standard Hi-Grip hose clip is made from mild steel, electroplated, passivated and tested to EN9227. Hi-Grip general-purpose worm drive hose clips are widely regarded for their quality, durability and ability to withstand a great deal of abuse.
- Brand / Quality:
- JCS - High Quality
- Width:
- 13mm
- Min Adjustment Range:
- 35mm
- Max Adjustment Range:
- 50mm
Technical
Technical
| BS No. | 50 |
|---|---|
| Adjustment Range (mm) | 35-50mm |
| Adjustment Range (inch) | 1-3/8 - 2 inch |
| A | 13mm |
| B | 37mm |
| C | 12mm |
| D | 16mm |
| E | 13mm |
| F | 0.9mm |
| G | 24mm |
| Recommended Torque Nm | 6Nm |
| Recommended Torque lb-in | 54lb-in |
