XPB1650 Premier Quality SPBX-Section Cogged V-Belt

SKU: XPB.1650.CVBELT.PREM

XPB1650 Premier Quality SPBX-Section Cogged V-Belt

$40.34 ex VAT
$40.34
ex VAT
Equivalent to: SPBX1650
In stock

Quantity Price Breaks

3 $35.90
5 $33.89
10 $33.48
15 $33.08
20 $32.68
30 $32.27
40 $30.26
50 $29.85
60 $29.45
75 $29.04
100 $28.24
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
XPB1650 Premier Quality SPBX-Section Cogged V-Belt
SKU: XPB.1650.CVBELT.PREM

XPB1650 Premier Quality SPBX-Section Cogged V-Belt

$40.34 ex VAT
$40.34
ex VAT

Description

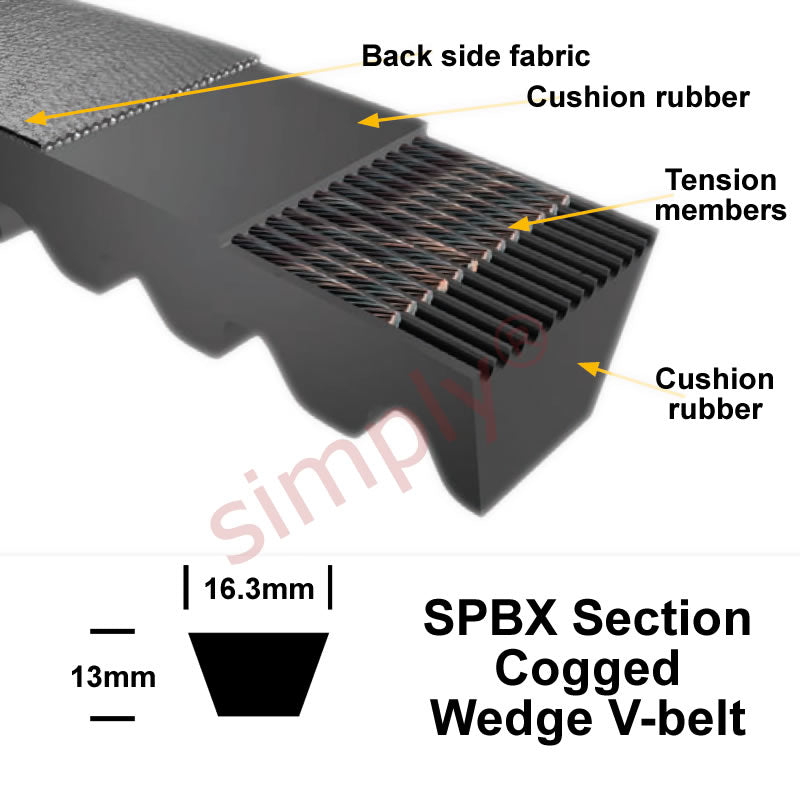

SPBX Section / XPB Section Cogged Type V Belts: Premier longer life cogged 17x14mm (11/16x9/16 inch) belts, premium quality cogged belts offer greater air flow which can greatly improve running temperatures. As cogged belts aren't wrapped the cross sectional area that would normally be occupied by the cover is used for greater load carrying cord. Cogged belts tend to be far more flexible and can be operated with significantly smaller sheaves.
Benefits: Premium quality cogged profile to fit ISO 4183/4184 pulleys, Low stretch polyester tensile member, Oil, ozone and abrasion resistant, Temperature resistance: -20deg C to +70deg C, Static conductive to ISO 1813
Note: Matched Pairs: All V Belts conform to DIN 2215 (For Classic V Belts Z, A, B, C, D, etc) and DIN 7753 (For Wedge Type Belts SPZ, SPA, SPB etc) and ISO 4184 and as such will match taking into account dimensional tolerances. If you require belts from the same batch, please contact our Sales Support Team who will gladly assist you further.

Technical

Inside Length = 1611mm
Outside Length = 1663mm
Datum Length = 1650mm
