SKU: YAR205-100-2FW/VA201-SKF

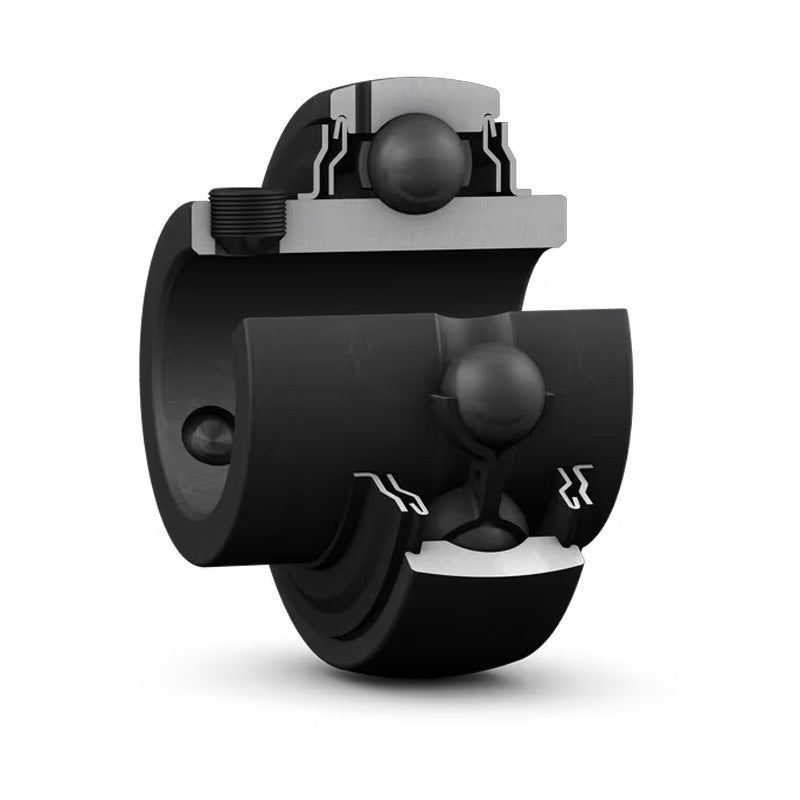

SKF YAR2051002FWVA201 Y Bearing Insert for High Temperature Application with Pressed Steel Cage and Grub Screw Location 1 inch shaft

Name: SKF YAR2051002FWVA201 Y Bearing Insert for High Temperature Application with Pressed Steel Cage and Grub Screw Location 1 inch shaft
Brand: SKF
SKU: YAR205-100-2FW/VA201-SKF
Price: 134.74 USD
Availability: InStock

$134.74 ex VAT

Sale Sold out

In stock

Price Break

10+ $90.26

19+ $85.19

29+ $84.17

39+ $83.16

49+ $82.14

74+ $81.13

99+ $76.06

199+ $75.04

249+ $74.03

499+ $73.02

999+ $70.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF High Temperature Bearing Inserts: VA201 types have pressed steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING
Benefits:High temp tolerance from -40 to +250 deg Celsius

Brand / Quality:: SKF - High Quality
Inside Diameter:: 25.4mm = 1 inch
Temperature Range:: High Temp

Technical

d	1 inch
D	52mm
B	34.1mm
C	15mm
d1	33.7mm
s1	19.8mm
r1r2 min	0.6mm
Dynamic load C	14 kN
Static load Co	7.8 kN
Weight	0.19 kg
