SKU: YAR208-2RF/HV-SKF

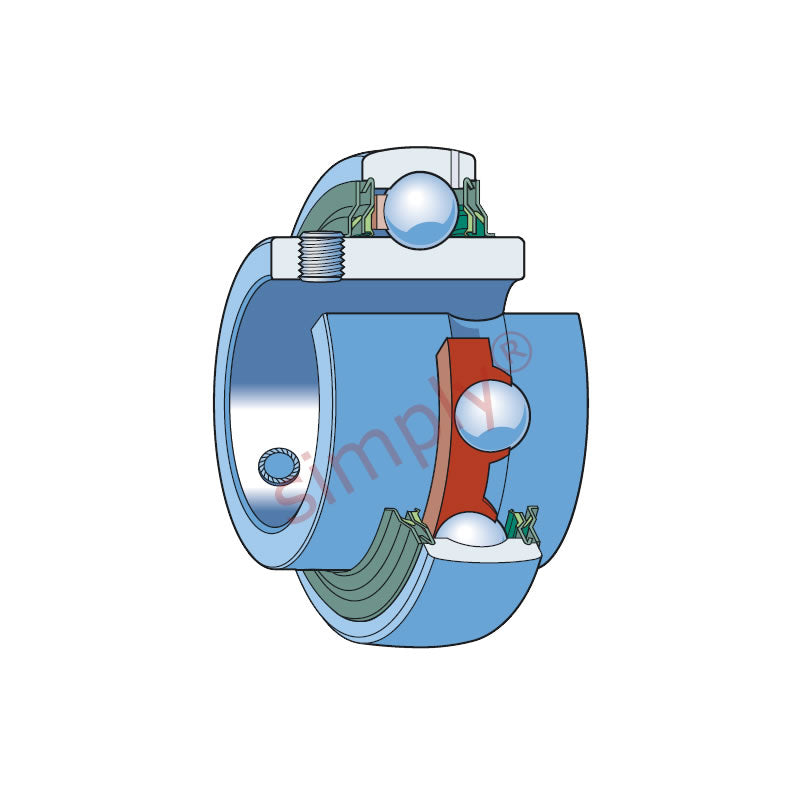

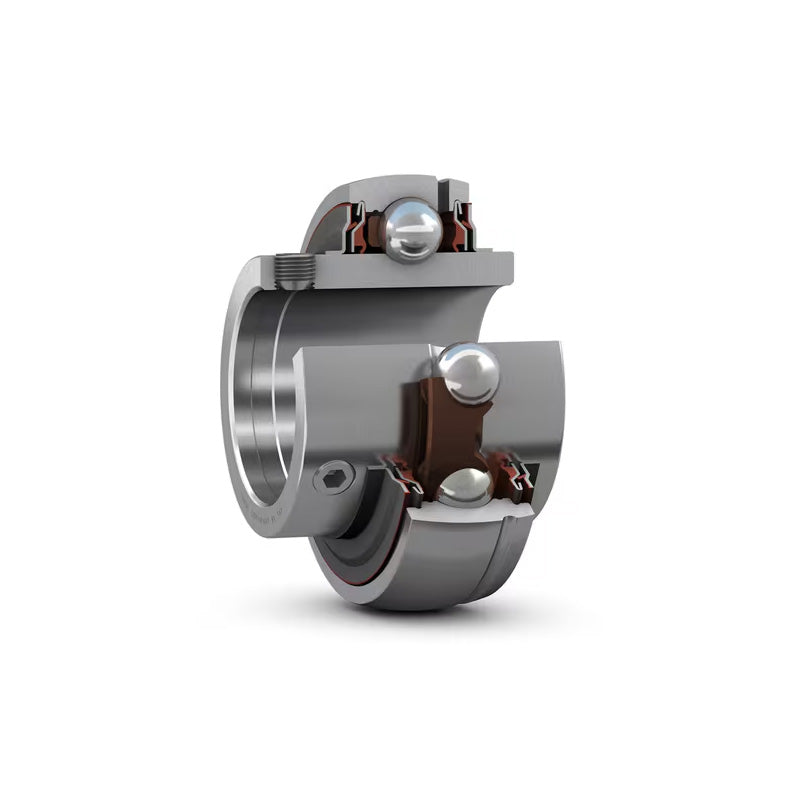

SKF YAR208-2RF/HV Grub Screw Bearing Insert with Food-Grade Grease 40mm Bore 80mm Outside Diameter
SKF YAR208-2RF/HV Grub Screw Bearing Insert with Food-Grade Grease 40mm Bore 80mm Outside Diameter
Regular price
$215.57
ex VAT
Regular price
Sale price
$215.57
ex VAT
In stock
Price Break
10+
$144.39
20+
$136.28
30+
$134.66
40+
$133.03
50+
$131.41
75+
$129.79
100+
$121.68
200+
$120.05
250+
$118.43
500+
$116.81
1000+
$113.57
Quantity
Couldn't load pickup availability
Description
Description
|
SKF YAR-2 Y-bearings with Grub Screws: These bearings are made of stainless steel. They are suitable for applications where the direction of rotation is constant or alternating. YAR 2 series bearings have an extended inner ring on both sides. This reduces the extent to which the inner ring can tilt on the shaft enabling the bearing to run smoothly. Benefits: Features highly efficient multiple seals made of food-compatible rubber, are filled with food-grade grease, can be re-lubricated through one lubrication hole in the outer ring Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Style:
- YAR
Technical
Technical
| d | 40mm |
|---|---|
| D | 80mm |
| B | 49.2mm |
| C | 21mm |
| d1 | 51.8mm |
| s1 | 30.2mm |
| r1r2 min | 1mm |
| Static load Cr | 19 kN |
| Dynamic load Cor | 24.7 kN |
| Fatigue load limit Pu | 0.8 kN |
| Limiting speed | 2800 rpm |
| Weight | 0.55 kg |
