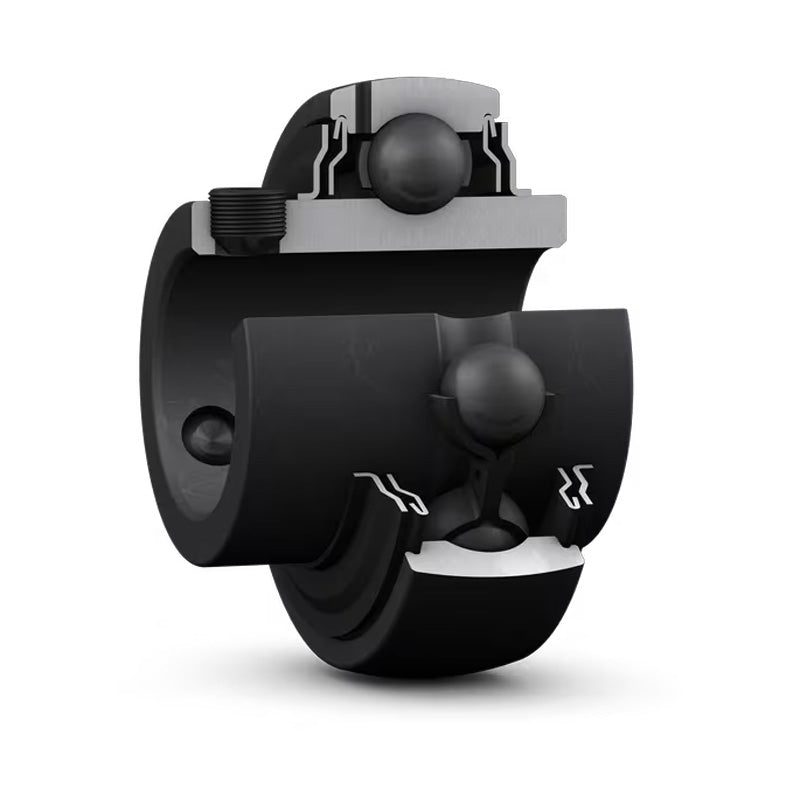

• SKF YAR2091122FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 1-3/4 inch shaft
1 1

SKU: YAR209-112-2FW/VA228-SKF

SKF YAR2091122FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 1-3/4 inch shaft

SKF YAR2091122FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 1-3/4 inch shaft
$277.50 ex VAT
$277.50 ex VAT
Sale Sold out

In stock

Price Break
10+ $185.88
19+ $175.43
29+ $173.35
39+ $171.26
49+ $169.17
74+ $167.08
99+ $156.64
199+ $154.55
249+ $152.46
499+ $150.37
999+ $146.19

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF High Temperature Bearing Inserts: VA228 types have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING. They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -50 to +350 deg Celsius
Brand / Quality:
SKF - High Quality
Inside Diameter:
44.45mm = 1.75 (1-3/4) inch
Temperature Range:
High Temp
Technical
d 1-3/4 inch
D 85mm
B 49.2mm
C 22mm
d1 56.8mm
s1 30.2mm
r1r2 min 1mm
Dynamic load C 33.2 kN
Static load Co 21.6 kN
Weight 0.62 kg
