SKU: YAT203-010-SKF

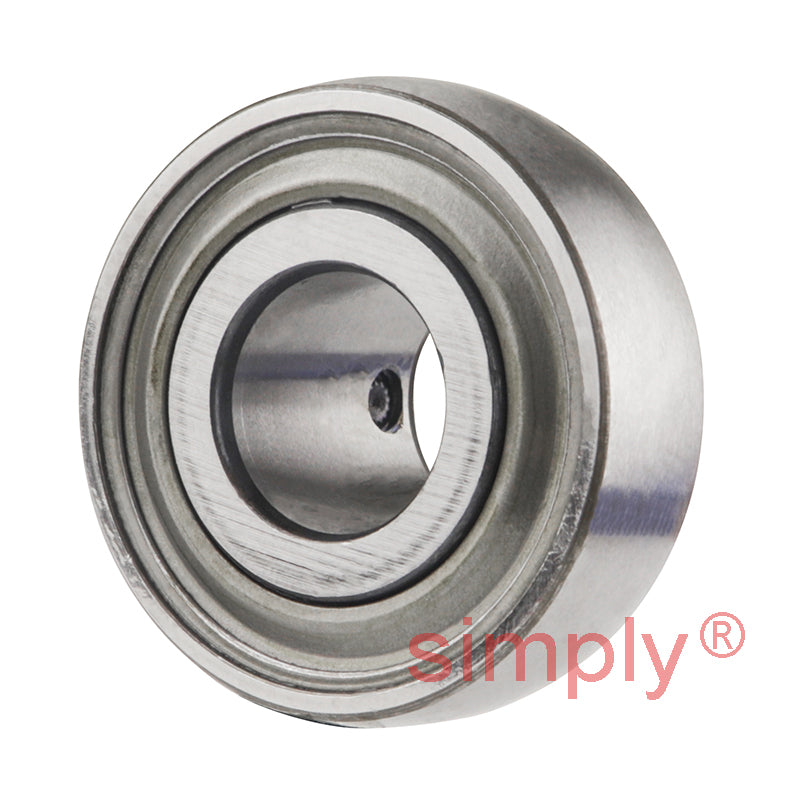

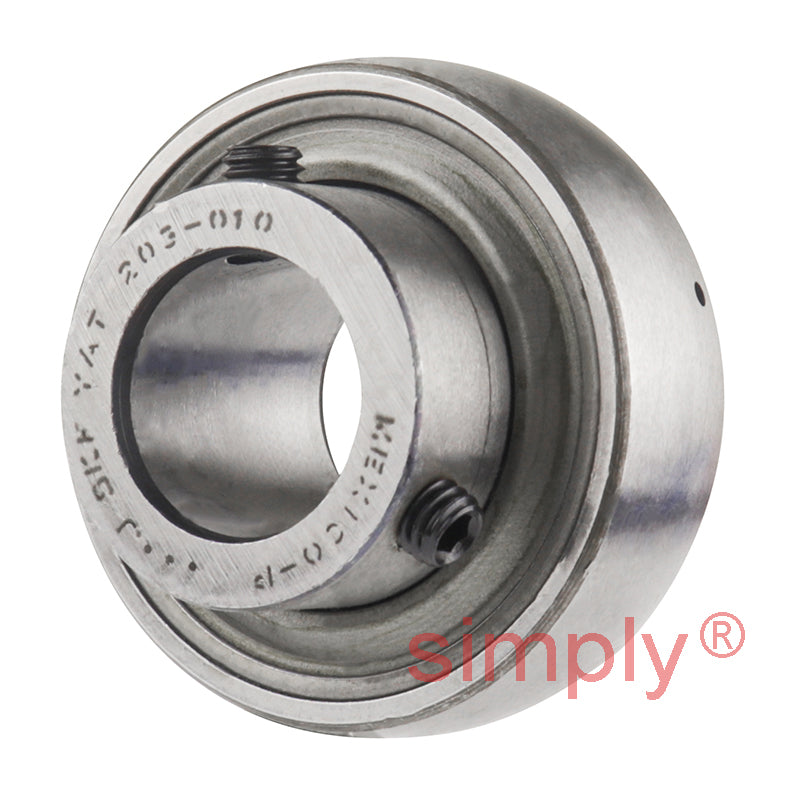

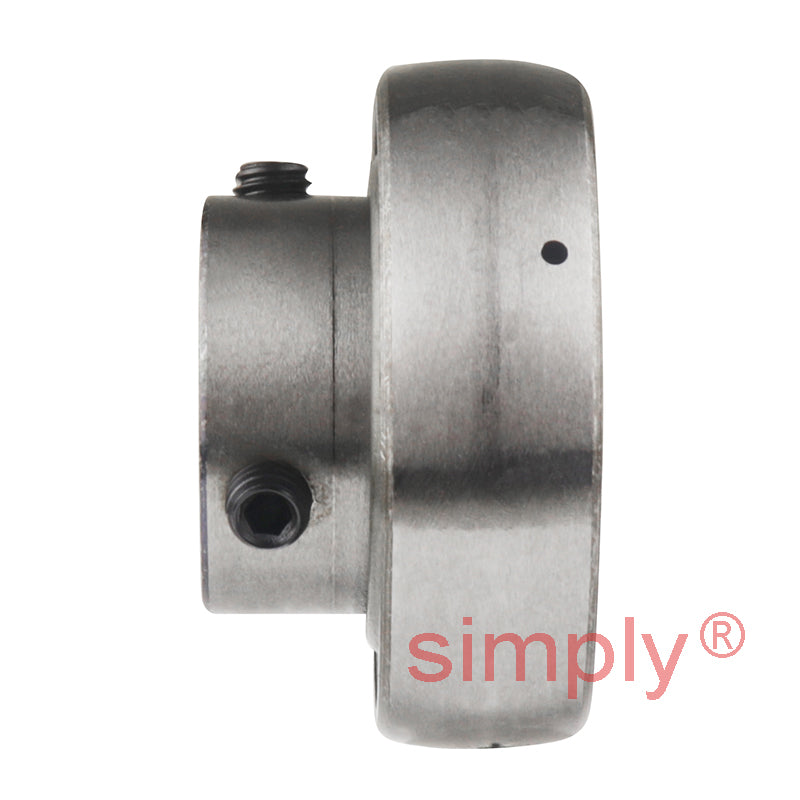

SKF YAT203-010 Grub Screw Type Bearing Insert 5/8 inch Bore 40mm Outside Diameter
SKF YAT203-010 Grub Screw Type Bearing Insert 5/8 inch Bore 40mm Outside Diameter
Regular price
$23.13
ex VAT
Regular price
Sale price
$23.13
ex VAT
In stock
Price Break
10+
$15.49
20+
$14.62
30+
$14.45
40+
$14.28
50+
$14.10
75+
$13.93
100+
$13.06
200+
$12.88
250+
$12.71
500+
$12.54
1000+
$12.19
Quantity
Couldn't load pickup availability
Description
Description
|
SKF YAT-2 Y-bearings with Grub Screws: These bearings are manufactured from high-grade carbon chromium steel. They are suitable for applications where the direction of rotation is constant or alternating. YAT 2 series bearings have an extended inner ring on one side and are sealed with the rugged standard integral seal. The outer ring has two lubrication holes as standard. Benefits: Lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Outside Diameter:
- 40mm
- Style:
- YAT
Technical
Technical
| d | 5/8 inch |
|---|---|
| D | 40mm |
| B | 22.5mm |
| C | 12mm |
| d1 | 24.2mm |
| s1 | 16mm |
| r1r2 min | 0.3mm |
| Static load Cr | 4.75 kN |
| Dynamic load Cor | 9.56 kN |
| Fatigue load limit Pu | 0.2 kN |
| Limiting speed | 9500 rpm |
| Weight | 0.1 kg |
