SKU: YAT204-012-SKF

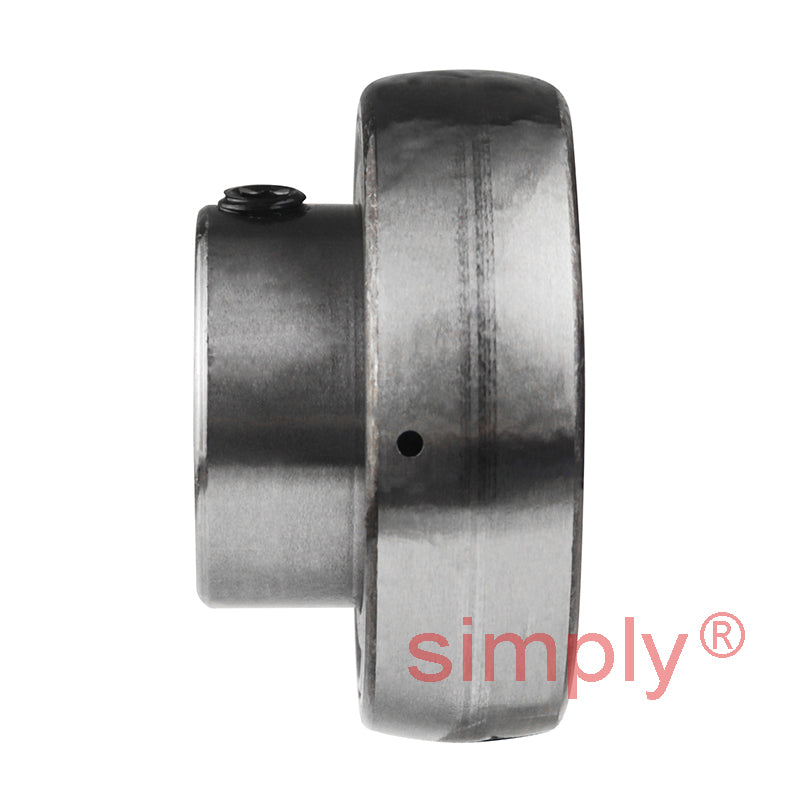

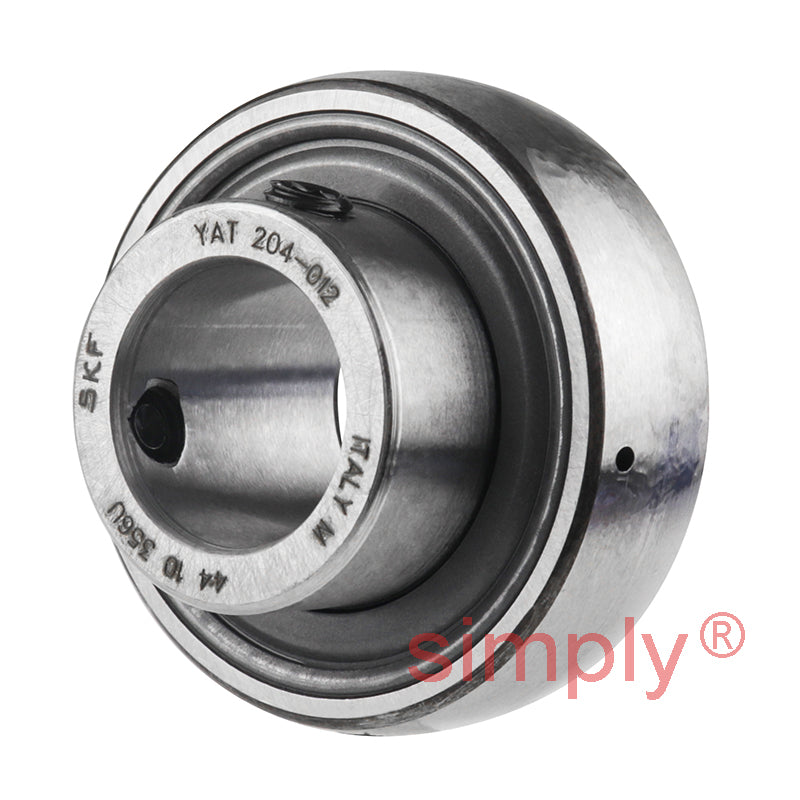

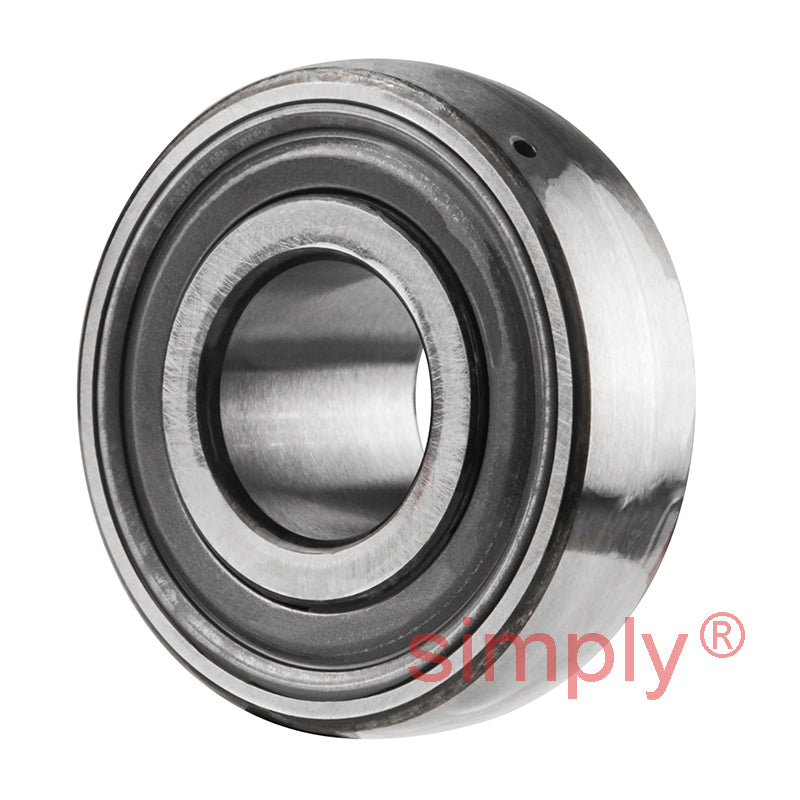

SKF YAT204-012 Grub Screw Type Bearing Insert 3/4 inch Bore 47mm Outside Diameter
SKF YAT204-012 Grub Screw Type Bearing Insert 3/4 inch Bore 47mm Outside Diameter
Regular price
$31.30
ex VAT
Regular price
Sale price
$31.30
ex VAT
In stock
Price Break
10+
$20.97
20+
$19.79
30+
$19.56
40+
$19.32
50+
$19.09
75+
$18.85
100+
$17.67
200+
$17.44
250+
$17.20
500+
$16.96
1000+
$16.49
Quantity
Couldn't load pickup availability
Description
Description
|
SKF YAT-2 Y-bearings with Grub Screws: These bearings are manufactured from high-grade carbon chromium steel. They are suitable for applications where the direction of rotation is constant or alternating. YAT 2 series bearings have an extended inner ring on one side and are sealed with the rugged standard integral seal. The outer ring has two lubrication holes as standard. Benefits: Lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Outside Diameter:
- 47mm
- Style:
- YAT
Technical
Technical
| d | 3/4 inch |
|---|---|
| D | 47mm |
| B | 25.5mm |
| C | 14mm |
| d1 | 28.2mm |
| s1 | 18.3mm |
| r1r2 min | 0.6mm |
| Static load Cr | 6.55 kN |
| Dynamic load Cor | 12.7 kN |
| Fatigue load limit Pu | 0.28 kN |
| Limiting speed | 8500 rpm |
| Weight | 0.14 kg |
