SKU: YAT204-SKF

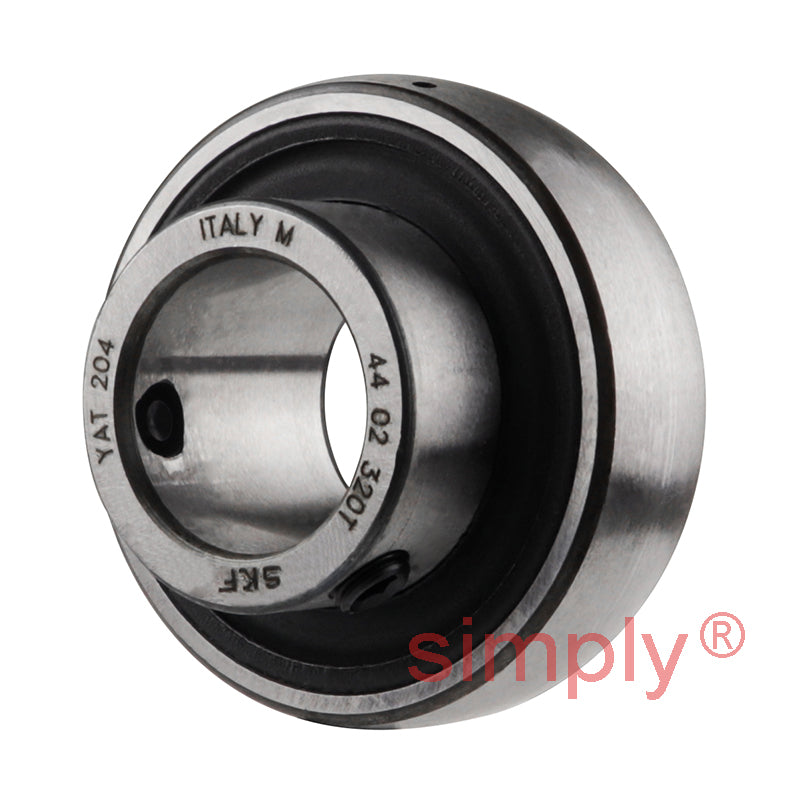

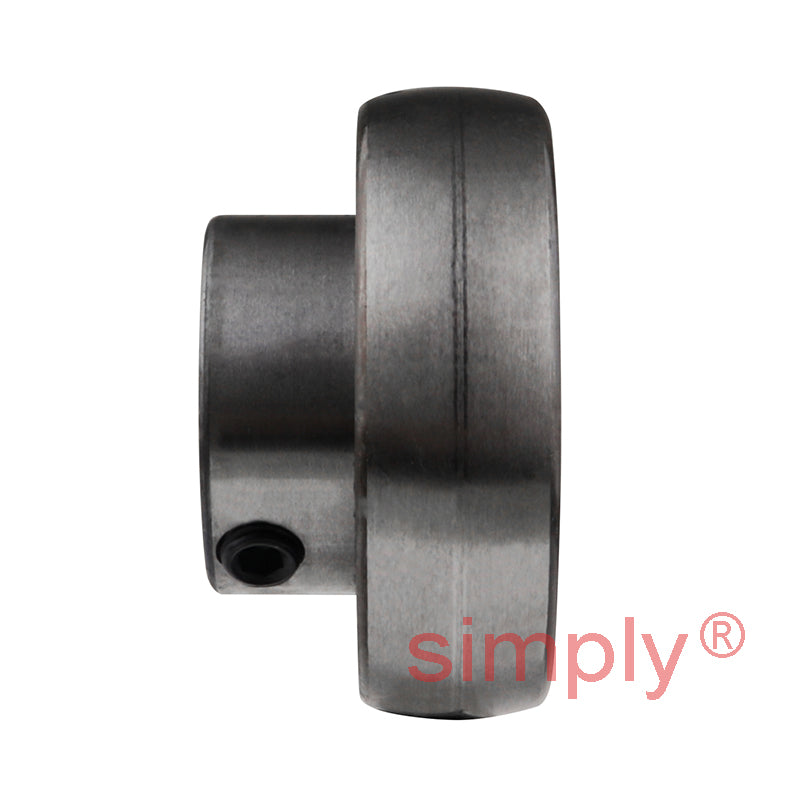

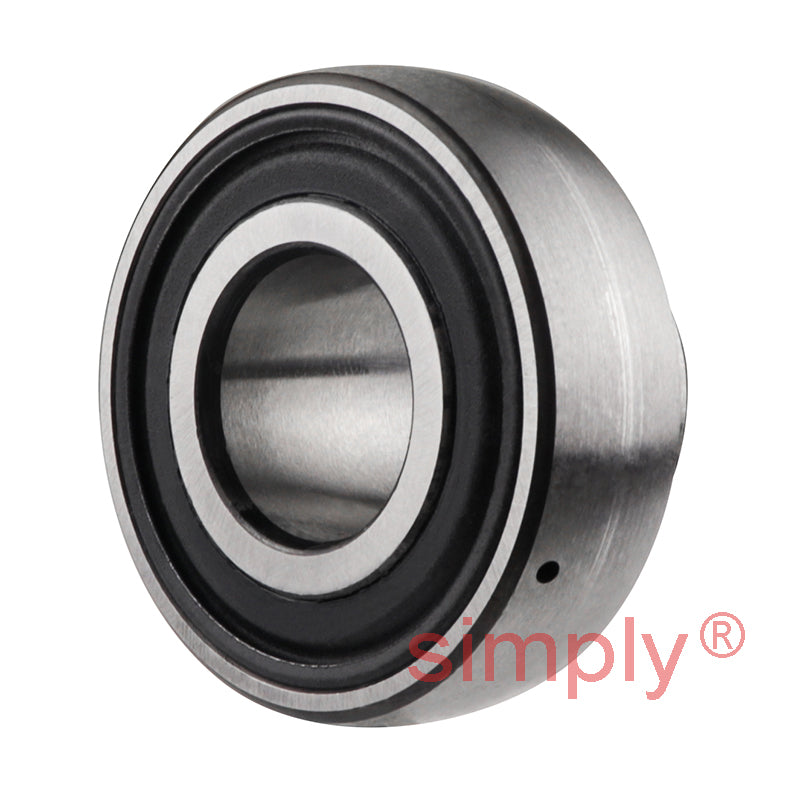

SKF YAT204 Grub Screw Type Bearing Insert with 20mm Bore 47mm Outside Diameter
SKF YAT204 Grub Screw Type Bearing Insert with 20mm Bore 47mm Outside Diameter
Regular price
$26.31
ex VAT
Regular price
Sale price
$26.31
ex VAT
In stock
Price Break
10+
$17.62
20+
$16.63
30+
$16.44
40+
$16.24
50+
$16.04
75+
$15.84
100+
$14.85
200+
$14.65
250+
$14.46
500+
$14.26
1000+
$13.86
Quantity
Couldn't load pickup availability
Description
Description
|
SKF YAT-2 Y-bearings with Grub Screws: These bearings are manufactured from high-grade carbon chromium steel. They are suitable for applications where the direction of rotation is constant or alternating. YAT 2 series bearings have an extended inner ring on one side and are sealed with the rugged standard integral seal. The outer ring has two lubrication holes as standard. Benefits: Lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Style:
- YAT
Technical
Technical
| d | 20mm |
|---|---|
| D | 47mm |
| B | 25.5mm |
| C | 14mm |
| d1 | 28.2mm |
| s1 | 18.3mm |
| r1r2 min | 0.6mm |
| Static load Cr | 6.55 kN |
| Dynamic load Cor | 12.7 kN |
| Fatigue load limit Pu | 0.28 kN |
| Limiting speed | 8500 rpm |
| Weight | 0.11 kg |
