SKU: YAT205-014-SKF

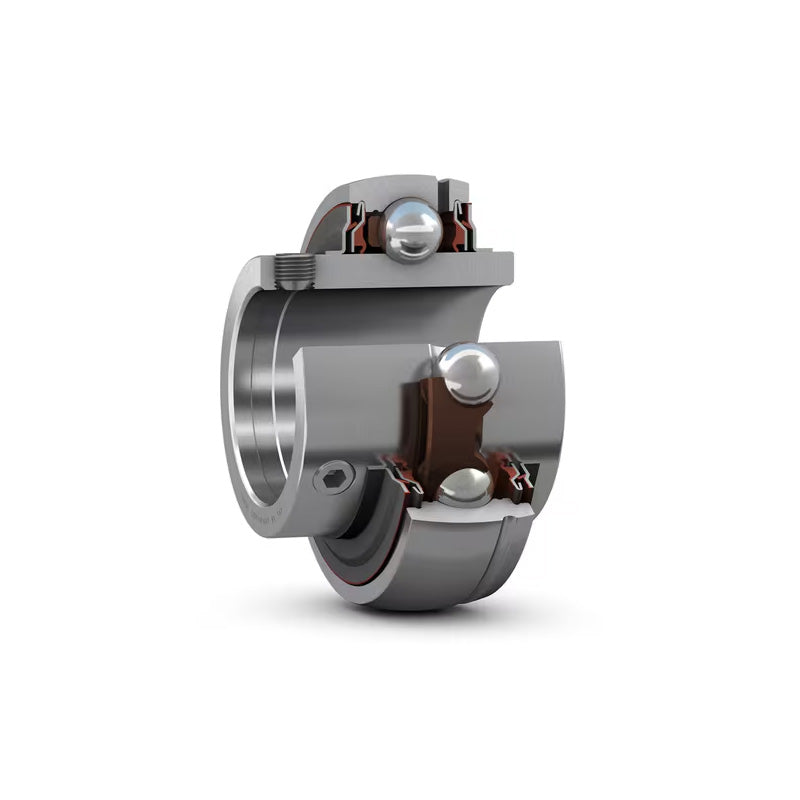

SKF YAT205-014 Grub Screw Type Bearing Insert 7/8 inch Bore 52mm Outside Diameter - Allow 2-3 Days
SKF YAT205-014 Grub Screw Type Bearing Insert 7/8 inch Bore 52mm Outside Diameter - Allow 2-3 Days
Regular price
$35.30
ex VAT
Regular price
Sale price
$35.30
ex VAT
In stock
Price Break
10+
$26.29
20+
$25.23
30+
$24.70
40+
$23.90
50+
$23.37
75+
$22.04
100+
$18.59
200+
$0.00
250+
$0.00
500+
$0.00
1000+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
SKF YAT-2 Y-bearings with Grub Screws: These bearings are manufactured from high-grade carbon chromium steel. They are suitable for applications where the direction of rotation is constant or alternating. YAT 2 series bearings have an extended inner ring on one side and are sealed with the rugged standard integral seal. The outer ring has two lubrication holes as standard. Benefits: Lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Outside Diameter:
- 52mm
- Style:
- YAT
Technical
Technical
| d | 7/8 inch |
|---|---|
| D | 52mm |
| B | 27.2mm |
| C | 15mm |
| d1 | 33.7mm |
| s1 | 19.5mm |
| r1r2 min | 0.6mm |
| Static load Cr | 7.8 kN |
| Dynamic load Cor | 14 kN |
| Fatigue load limit Pu | 335 kN |
| Limiting speed | 7000 rpm |
| Weight | 0.17 kg |
