SKU: YAT205-100-SKF

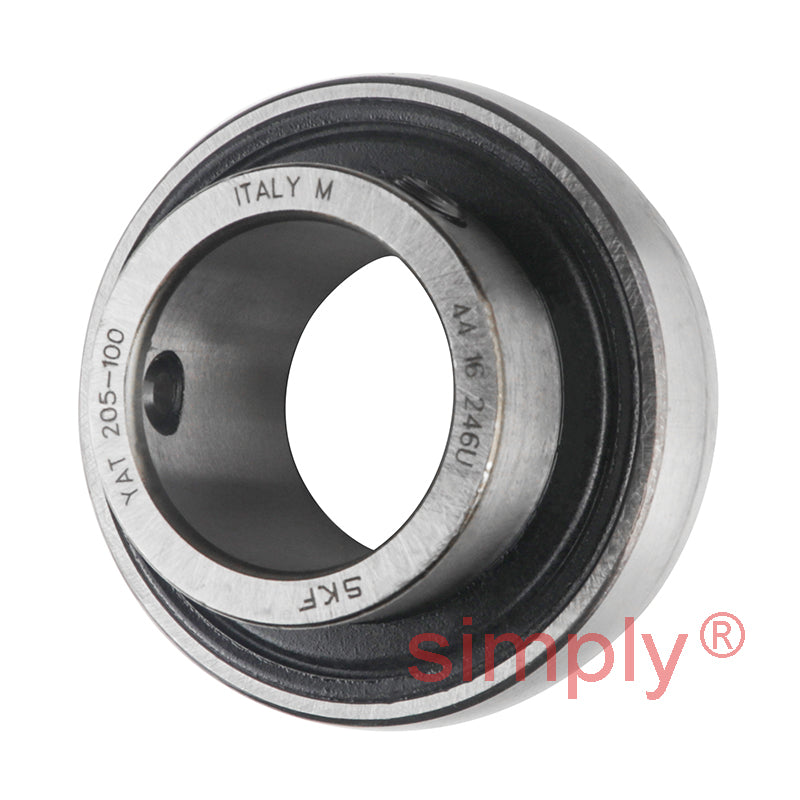

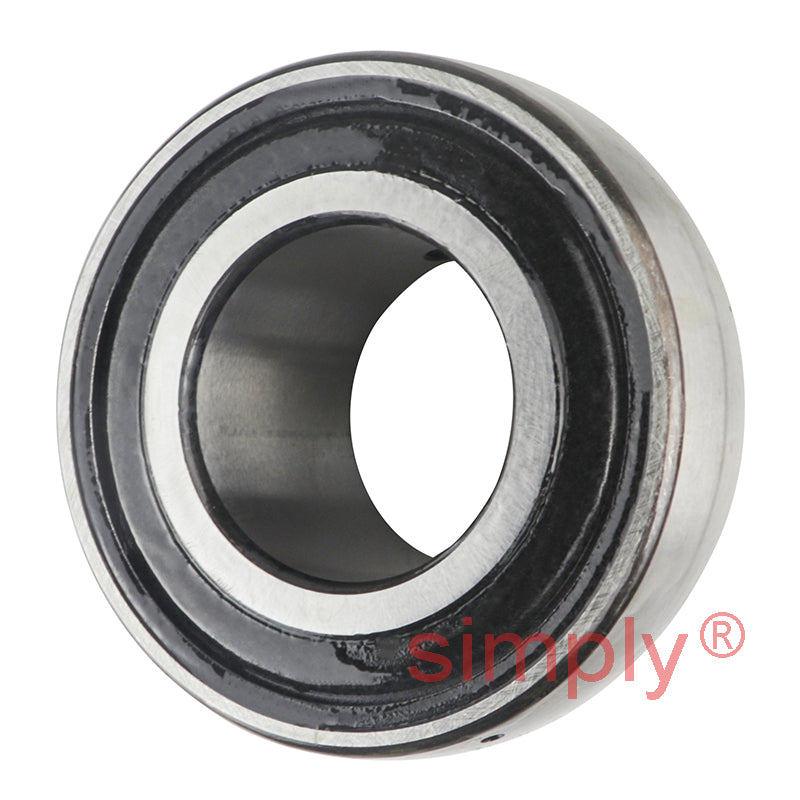

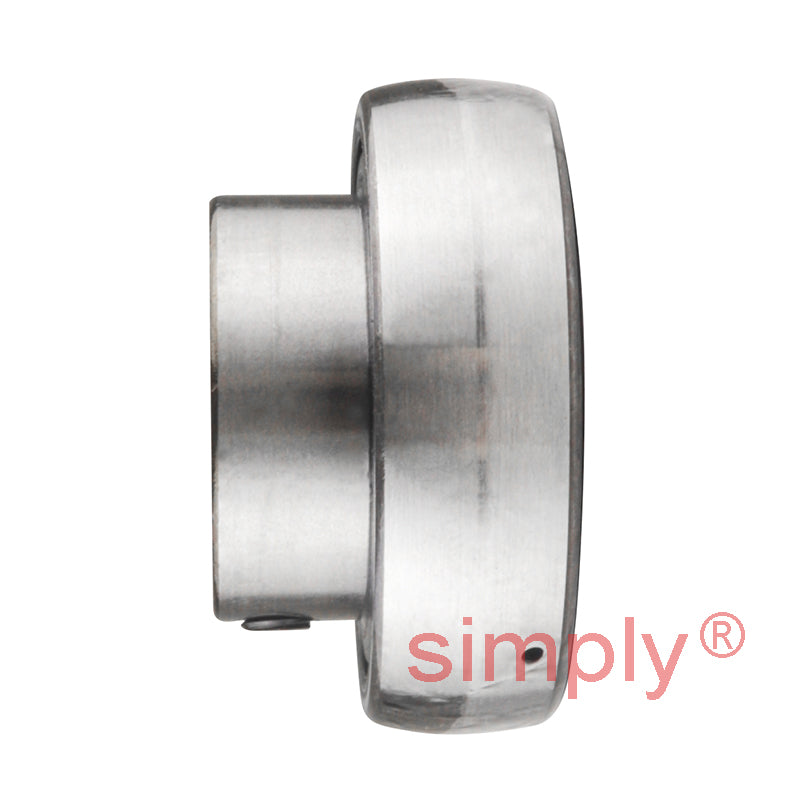

SKF YAT205-100 Grub Screw Type Bearing Insert 1 inch Bore 52mm Outside Diameter
SKF YAT205-100 Grub Screw Type Bearing Insert 1 inch Bore 52mm Outside Diameter
Regular price
$26.75
ex VAT
Regular price
Sale price
$26.75
ex VAT
In stock
Price Break
10+
$17.91
20+
$16.91
30+
$16.71
40+
$16.51
50+
$16.30
75+
$16.10
100+
$15.10
200+
$14.90
250+
$14.69
500+
$14.49
1000+
$14.09
Quantity
Couldn't load pickup availability
Description
Description
|
SKF YAT-2 Y-bearings with Grub Screws: These bearings are manufactured from high-grade carbon chromium steel. They are suitable for applications where the direction of rotation is constant or alternating. YAT 2 series bearings have an extended inner ring on one side and are sealed with the rugged standard integral seal. The outer ring has two lubrication holes as standard. Benefits: Lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 52mm
- Style:
- YAT
Technical
Technical
| d | 1 inch |
|---|---|
| D | 52mm |
| B | 27.2mm |
| C | 15mm |
| d1 | 33.7mm |
| s1 | 19.5mm |
| r1r2 min | 0.6mm |
| Static load Cr | 7.8 kN |
| Dynamic load Cor | 14 kN |
| Fatigue load limit Pu | 335 kN |
| Limiting speed | 7000 rpm |
| Weight | 0.16 kg |
