SKU: YAT206-103-SKF

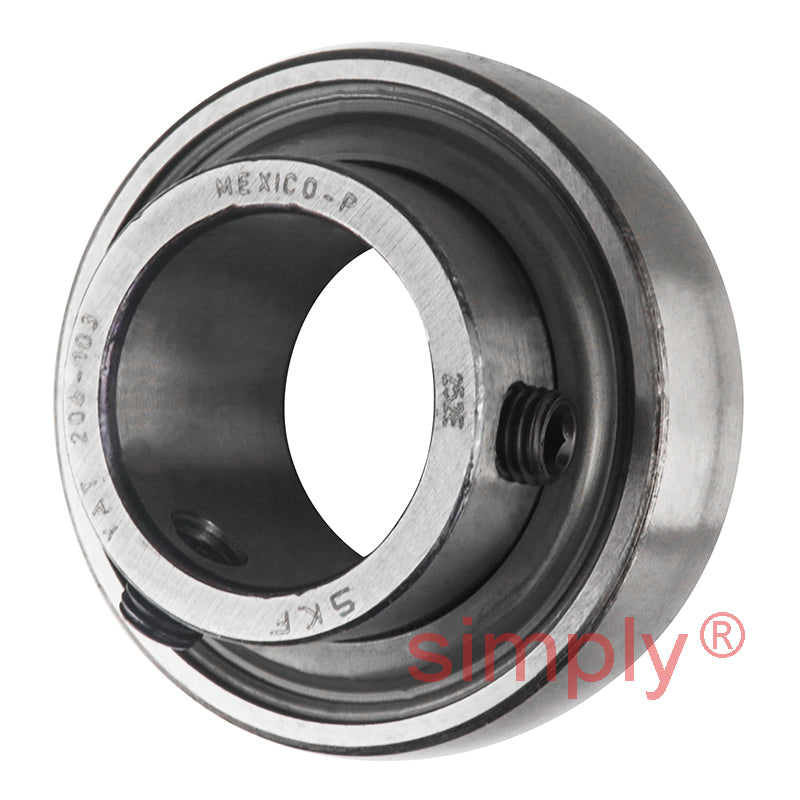

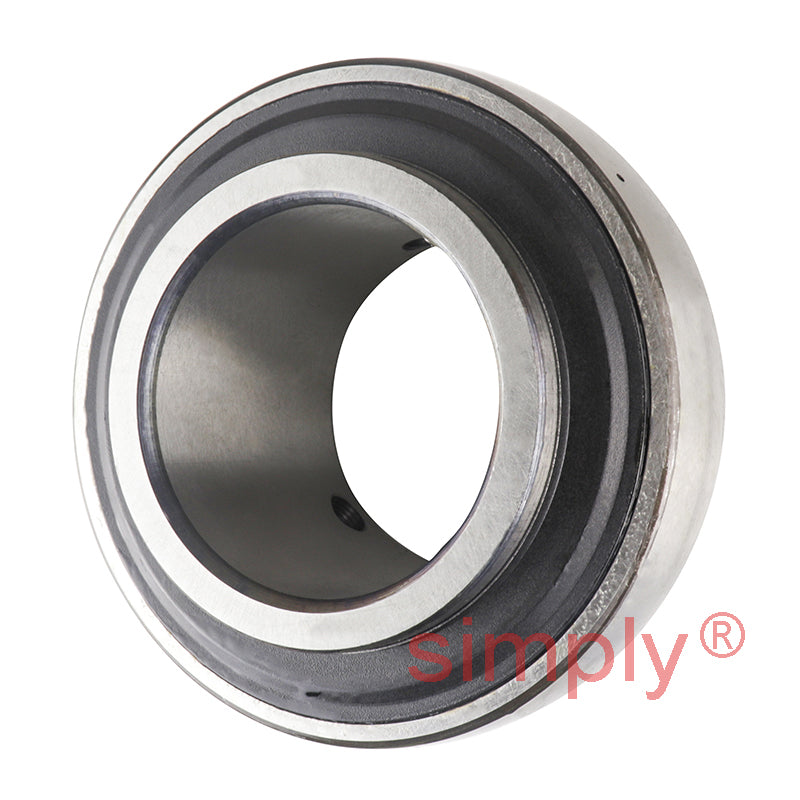

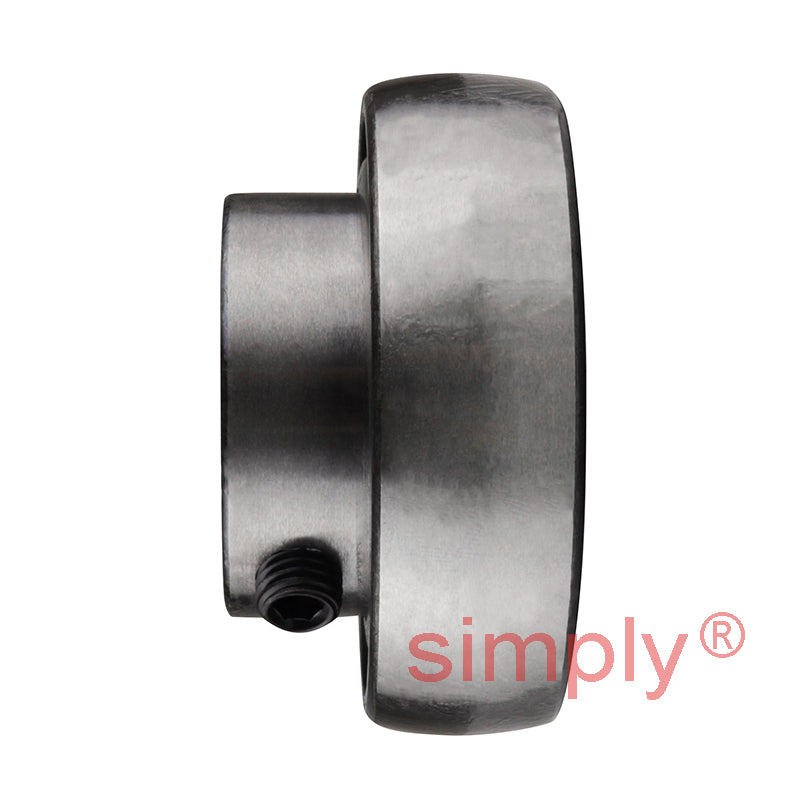

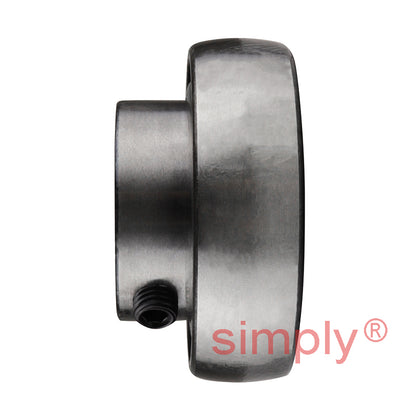

SKF YAT206-103 Grub Screw Type Bearing Insert 1-3/16 inch Bore 62mm Outside Diameter
SKF YAT206-103 Grub Screw Type Bearing Insert 1-3/16 inch Bore 62mm Outside Diameter
Regular price
$65.40
ex VAT
Regular price
Sale price
$65.40
ex VAT
In stock
Price Break
10+
$43.81
20+
$41.35
30+
$40.86
40+
$40.36
50+
$39.87
75+
$39.38
100+
$36.92
200+
$36.43
250+
$35.93
500+
$35.44
1000+
$34.46
Quantity
Couldn't load pickup availability
Description
Description
|
SKF YAT-2 Y-bearings with Grub Screws: These bearings are manufactured from high-grade carbon chromium steel. They are suitable for applications where the direction of rotation is constant or alternating. YAT 2 series bearings have an extended inner ring on one side and are sealed with the rugged standard integral seal. The outer ring has two lubrication holes as standard. Benefits: Lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Outside Diameter:
- 62mm
- Style:
- YAT
Technical
Technical
| d | 1-3/16 inch |
|---|---|
| D | 62mm |
| B | 31mm |
| C | 18mm |
| d1 | 39.7mm |
| s1 | 22mm |
| r1r2 min | 1mm |
| Static load Cr | 11.2 kN |
| Dynamic load Cor | 19.5 kN |
| Fatigue load limit Pu | 0.475 kN |
| Limiting speed | 6300 rpm |
| Weight | 0.28 kg |
