SKU: YAT206-104-SKF

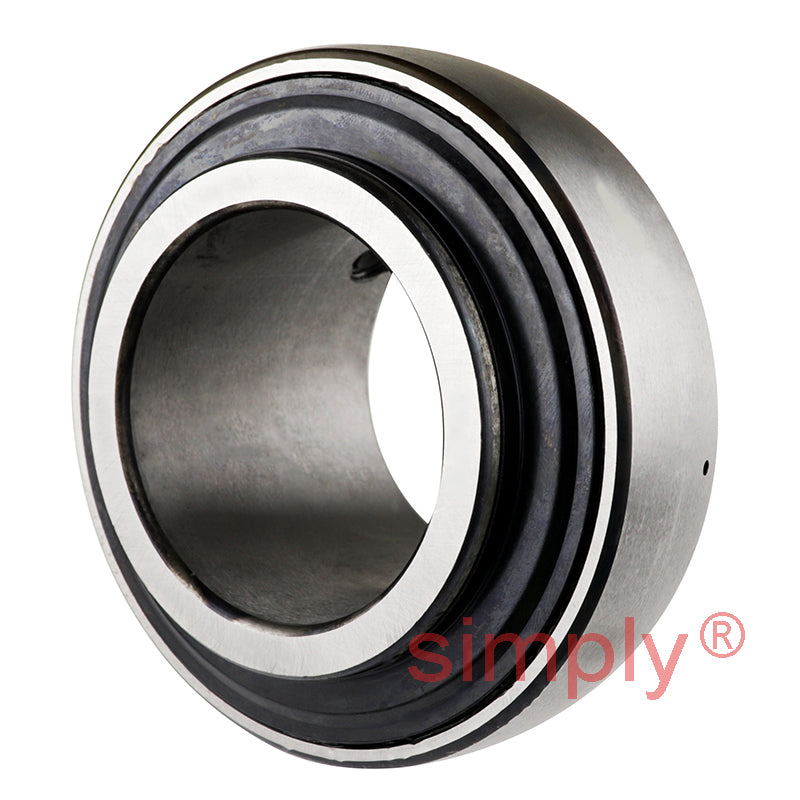

SKF YAT206-104 Grub Screw Type Bearing Insert 1-1/4 inch Bore 62mm Outside Diameter
SKF YAT206-104 Grub Screw Type Bearing Insert 1-1/4 inch Bore 62mm Outside Diameter
Regular price
$36.15
ex VAT
Regular price
Sale price
$36.15
ex VAT
In stock
Price Break
10+
$24.21
20+
$22.85
30+
$22.58
40+
$22.31
50+
$22.04
75+
$21.77
100+
$20.41
200+
$20.13
250+
$19.86
500+
$19.59
1000+
$19.05
Quantity
Couldn't load pickup availability
Description
Description
|

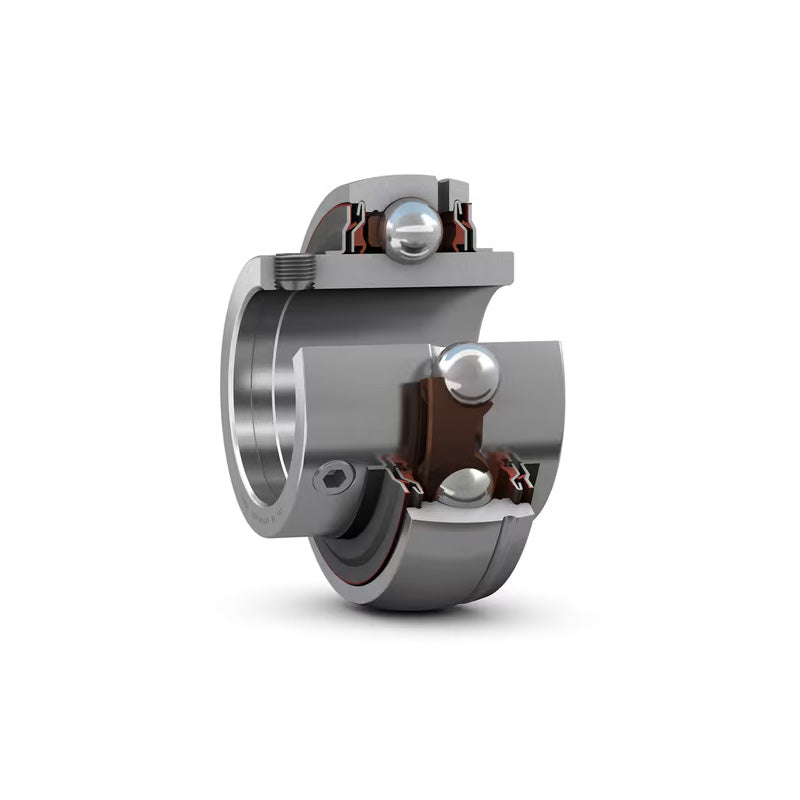

SKF YAT-2 Y-bearings with Grub Screws: These bearings are manufactured from high-grade carbon chromium steel. They are suitable for applications where the direction of rotation is constant or alternating. YAT 2 series bearings have an extended inner ring on one side and are sealed with the rugged standard integral seal. The outer ring has two lubrication holes as standard. Benefits: Lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 62mm
- Style:
- YAT
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| D | 62mm |
| B | 31mm |
| C | 18mm |
| d1 | 39.7mm |
| s1 | 22mm |
| r1r2 min | 1mm |
| Static load Cr | 11.2 kN |
| Dynamic load Cor | 19.5 kN |
| Fatigue load limit Pu | 0.475 kN |
| Limiting speed | 6300 rpm |
| Weight | 0.28 kg |
