SKU: YAT206-SKF

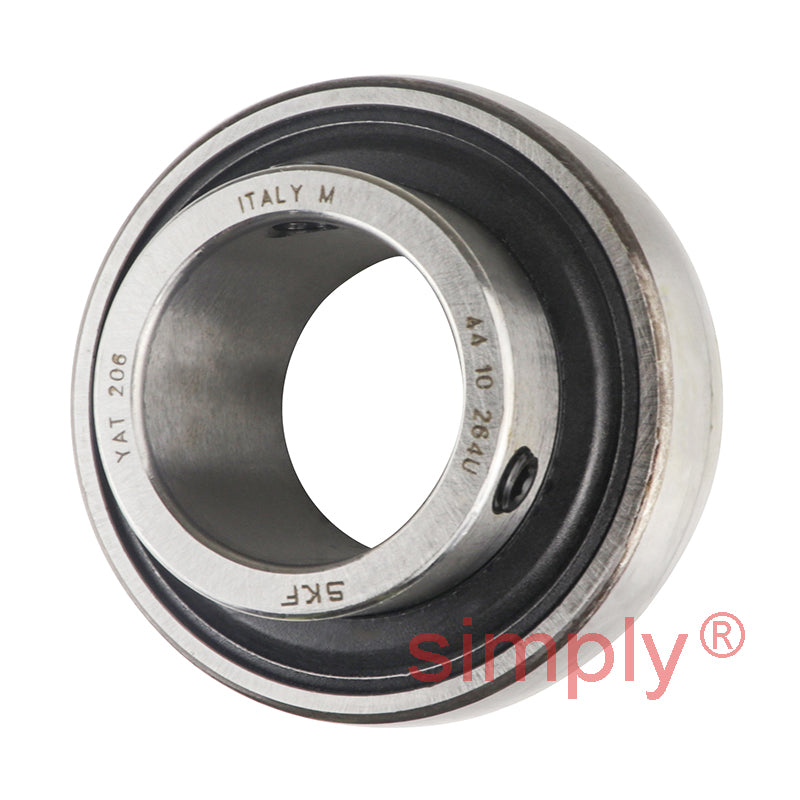

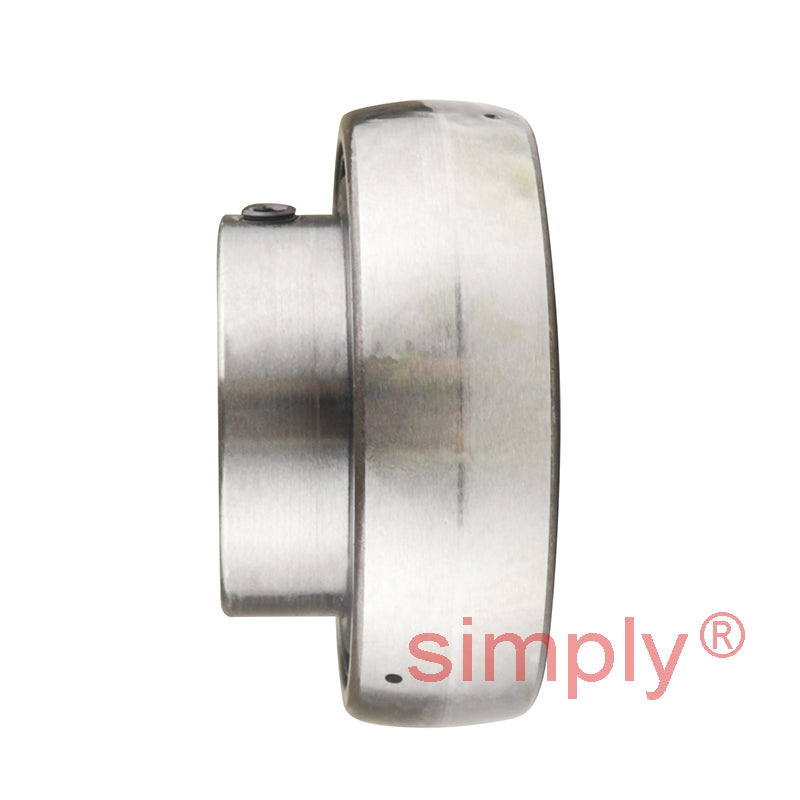

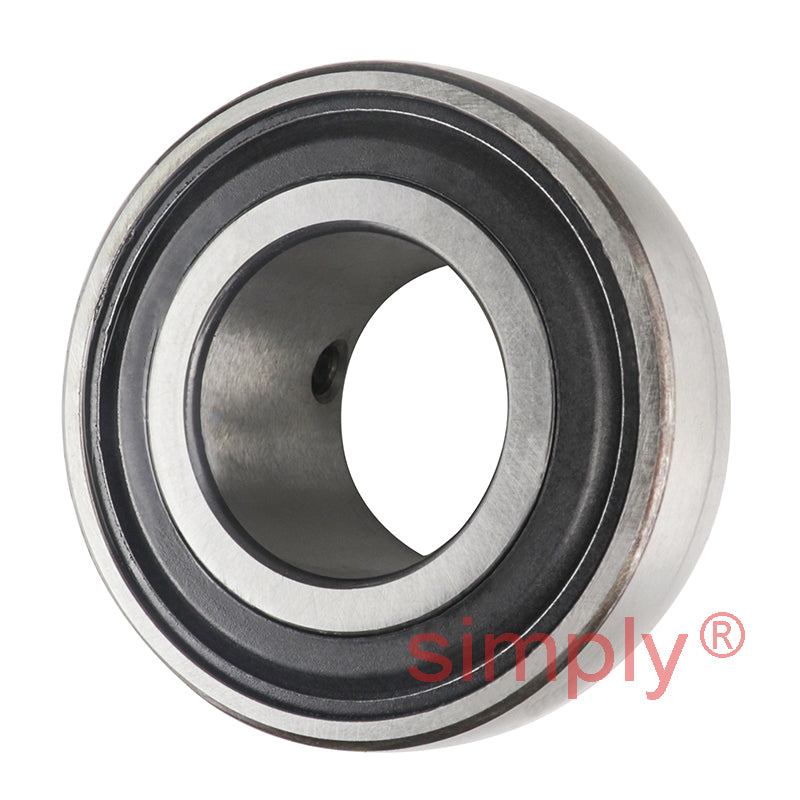

SKF YAT206 Grub Screw Type Bearing Insert with 30mm Bore 62mm Outside Diameter
SKF YAT206 Grub Screw Type Bearing Insert with 30mm Bore 62mm Outside Diameter
Regular price
$27.16
ex VAT
Regular price
Sale price
$27.16
ex VAT
In stock
Price Break
10+
$18.19
20+
$17.17
30+
$16.96
40+
$16.76
50+
$16.55
75+
$16.35
100+
$15.33
200+
$15.12
250+
$14.92
500+
$14.71
1000+
$14.30
Quantity
Couldn't load pickup availability
Description
Description
|
SKF YAT-2 Y-bearings with Grub Screws: These bearings are manufactured from high-grade carbon chromium steel. They are suitable for applications where the direction of rotation is constant or alternating. YAT 2 series bearings have an extended inner ring on one side and are sealed with the rugged standard integral seal. The outer ring has two lubrication holes as standard. Benefits: Lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Style:
- YAT
Technical
Technical
| d | 30mm |
|---|---|
| D | 62mm |
| B | 30.2mm |
| C | 18mm |
| d1 | 39.7mm |
| s1 | 21mm |
| r1r2 min | 0.6mm |
| Static load Cr | 11.2 kN |
| Dynamic load Cor | 19.5 kN |
| Fatigue load limit Pu | 0.475 kN |
| Limiting speed | 6300 rpm |
| Weight | 0.23 kg |
