SKU: YAT208-SKF

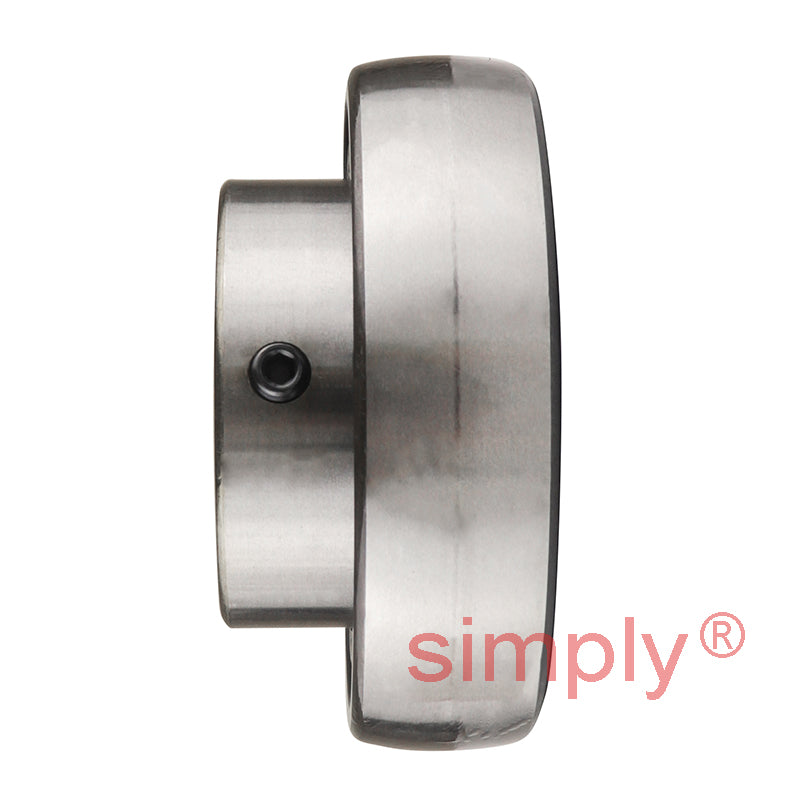

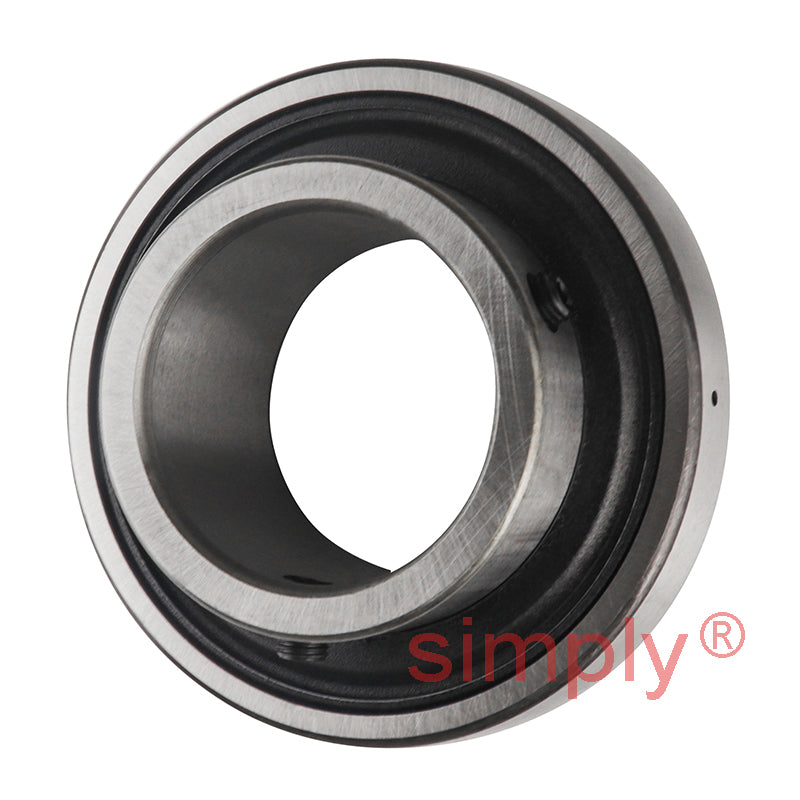

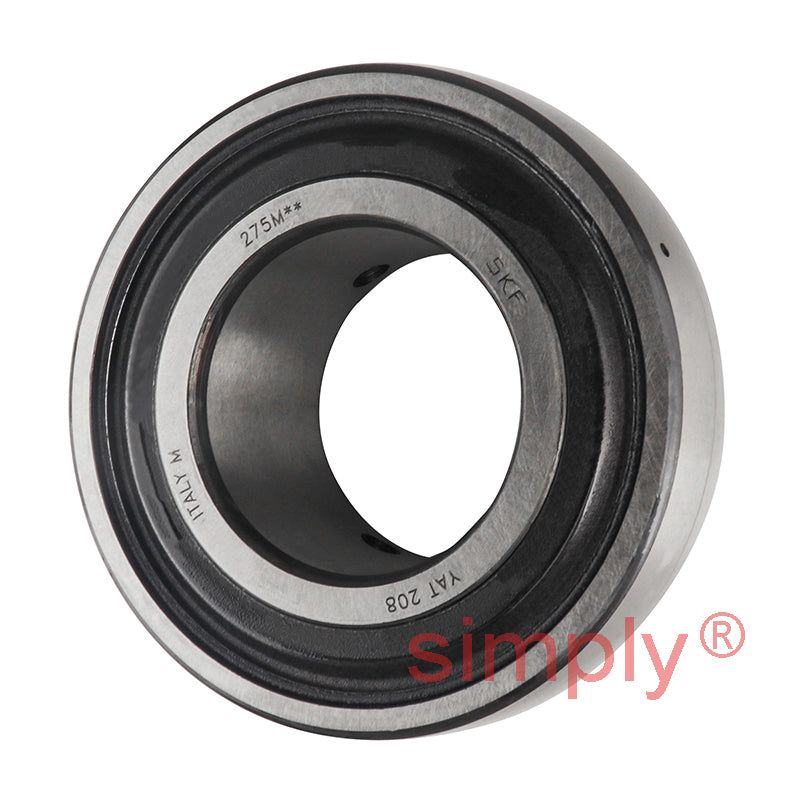

SKF YAT208 Grub Screw Type Bearing Insert with 40mm Bore 80mm Outside Diameter
SKF YAT208 Grub Screw Type Bearing Insert with 40mm Bore 80mm Outside Diameter
Regular price
$44.26
ex VAT
Regular price
Sale price
$44.26
ex VAT
In stock
Price Break
10+
$29.65
20+
$27.98
30+
$27.65
40+
$27.32
50+
$26.98
75+
$26.65
100+
$24.99
200+
$24.65
250+
$24.32
500+
$23.99
1000+
$23.32
Quantity
Couldn't load pickup availability
Description
Description
|
SKF YAT-2 Y-bearings with Grub Screws: These bearings are manufactured from high-grade carbon chromium steel. They are suitable for applications where the direction of rotation is constant or alternating. YAT 2 series bearings have an extended inner ring on one side and are sealed with the rugged standard integral seal. The outer ring has two lubrication holes as standard. Benefits: Lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Style:
- YAT
Technical
Technical
| d | 40mm |
|---|---|
| D | 80mm |
| B | 36mm |
| C | 21mm |
| d1 | 51.8mm |
| s1 | 25.3mm |
| r1r2 min | 1mm |
| Static load Cr | 19 kN |
| Dynamic load Cor | 30.7 kN |
| Fatigue load limit Pu | 0.8 kN |
| Limiting speed | 4800 rpm |
| Weight | 0.43 kg |
