SKU: YAT209-111-SKF

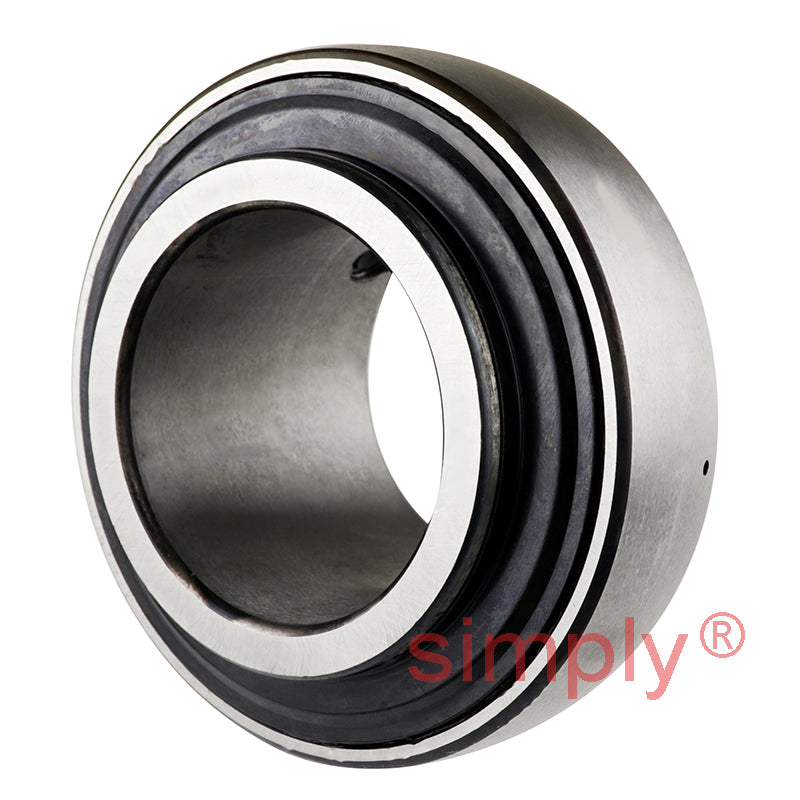

SKF YAT209-111 Grub Screw Type Bearing Insert 1-11/16 inch Bore 85mm Outside Diameter
SKF YAT209-111 Grub Screw Type Bearing Insert 1-11/16 inch Bore 85mm Outside Diameter
Regular price
$62.21
ex VAT
Regular price
Sale price
$62.21
ex VAT
In stock
Price Break
10+
$41.67
20+
$39.32
30+
$38.86
40+
$38.39
50+
$37.92
75+
$37.45
100+
$35.11
200+
$34.64
250+
$34.18
500+
$33.71
1000+
$32.77
Quantity
Couldn't load pickup availability
Description
Description
|
SKF YAT-2 Y-bearings with Grub Screws: These bearings are manufactured from high-grade carbon chromium steel. They are suitable for applications where the direction of rotation is constant or alternating. YAT 2 series bearings have an extended inner ring on one side and are sealed with the rugged standard integral seal. The outer ring has two lubrication holes as standard. Benefits: Lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 42.86mm = 1.687 (1-11/16) inch
- Outside Diameter:
- 85mm
- Style:
- YAT
Technical
Technical
| d | 1-11/16 inch |
|---|---|
| D | 85mm |
| B | 41.5mm |
| C | 22mm |
| d1 | 56.8mm |
| s1 | 30.5mm |
| r1r2 min | 1mm |
| Static load Cr | 21.6 kN |
| Dynamic load Cor | 33.2 kN |
| Fatigue load limit Pu | 0.915 kN |
| Limiting speed | 4300 rpm |
| Weight | 0.65 kg |
