SKU: YAT209-SKF
SKF YAT209 Grub Screw Type Bearing Insert with 45mm Bore 85mm Outside Diameter
SKF YAT209 Grub Screw Type Bearing Insert with 45mm Bore 85mm Outside Diameter
Regular price
$54.17
ex VAT
Regular price
Sale price
$54.17
ex VAT
In stock
Price Break
10+
$36.28
20+
$34.24
30+
$33.84
40+
$33.43
50+
$33.02
75+
$32.61
100+
$30.58
200+
$30.17
250+
$29.76
500+
$29.35
1000+
$28.54
Quantity
Couldn't load pickup availability
Description
Description
|

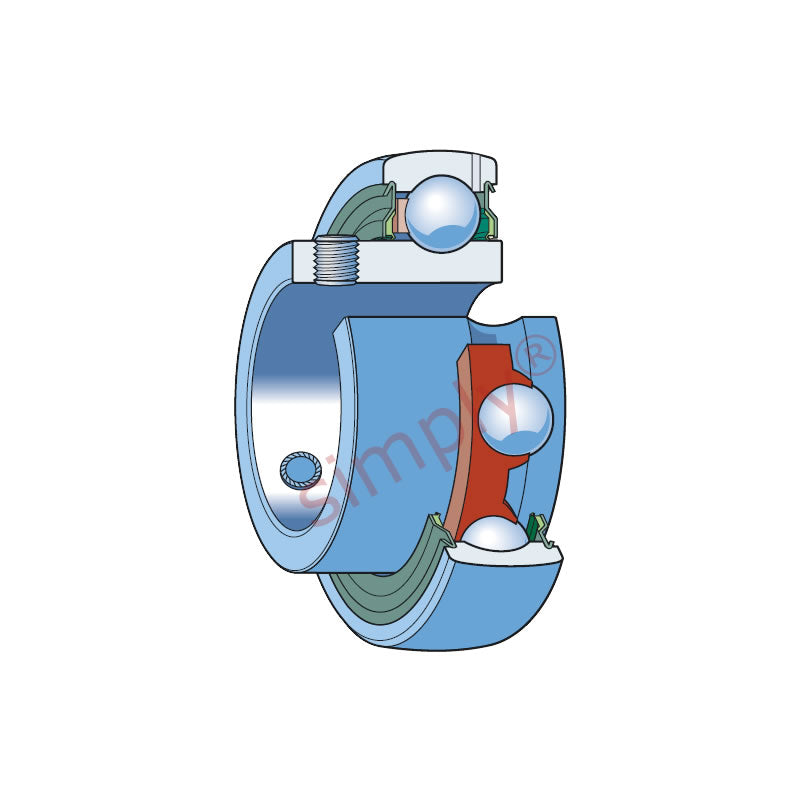

SKF YAT-2 Y-bearings with Grub Screws: These bearings are manufactured from high-grade carbon chromium steel. They are suitable for applications where the direction of rotation is constant or alternating. YAT 2 series bearings have an extended inner ring on one side and are sealed with the rugged standard integral seal. The outer ring has two lubrication holes as standard. Benefits: Lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Style:
- YAT
Technical
Technical
| d | 45mm |
|---|---|
| D | 85mm |
| B | 37mm |
| C | 22mm |
| d1 | 56.8mm |
| s1 | 25.8mm |
| r1r2 min | 1mm |
| Static load Cr | 21.6 kN |
| Dynamic load Cor | 33.2 kN |
| Fatigue load limit Pu | 0.915 kN |
| Limiting speed | 4300 rpm |
| Weight | 0.48 kg |
