SKU: YAT210-115-SKF

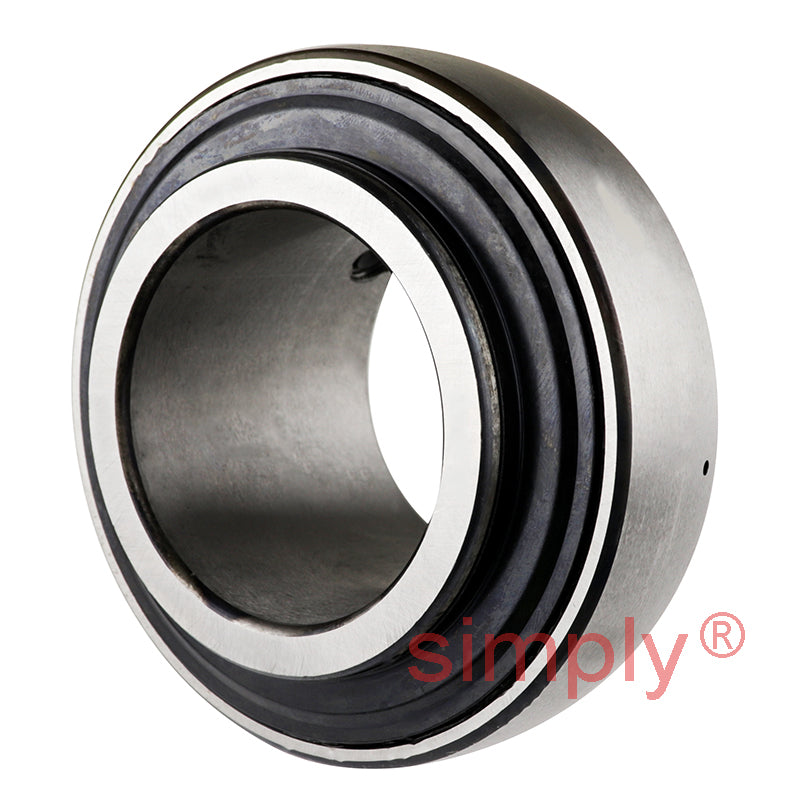

SKF YAT210-115 Grub Screw Type Bearing Insert 1-15/16 inch Bore 90mm Outside Diameter
SKF YAT210-115 Grub Screw Type Bearing Insert 1-15/16 inch Bore 90mm Outside Diameter
Regular price
$52.34
ex VAT
Regular price
Sale price
$52.34
ex VAT
In stock
Price Break
10+
$35.05
20+
$33.08
30+
$32.69
40+
$32.30
50+
$31.90
75+
$31.51
100+
$29.54
200+
$29.15
250+
$28.75
500+
$28.36
1000+
$27.57
Quantity
Couldn't load pickup availability
Description
Description
|

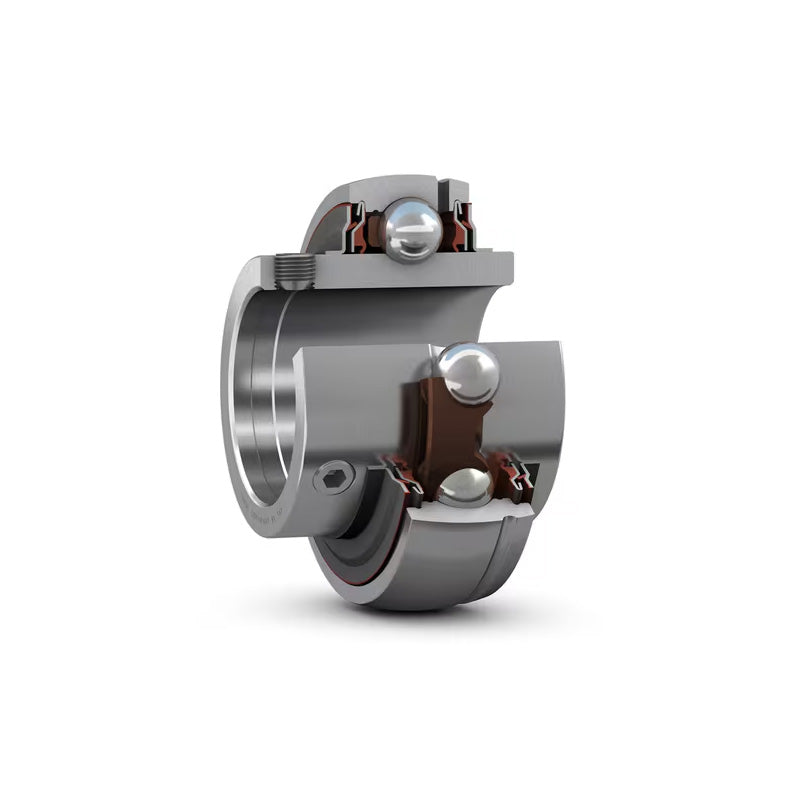

SKF YAT-2 Y-bearings with Grub Screws: These bearings are manufactured from high-grade carbon chromium steel. They are suitable for applications where the direction of rotation is constant or alternating. YAT 2 series bearings have an extended inner ring on one side and are sealed with the rugged standard integral seal. The outer ring has two lubrication holes as standard. Benefits: Lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 49.21mm = 1.937 (1-15/16) inch
- Outside Diameter:
- 90mm
- Style:
- YAT
Technical
Technical
| d | 1-15/16 inch |
|---|---|
| D | 90mm |
| B | 43mm |
| C | 22mm |
| d1 | 62.5mm |
| s1 | 32mm |
| r1r2 min | 1mm |
| Static load Cr | 23.2 kN |
| Dynamic load Cor | 35.1 kN |
| Fatigue load limit Pu | 0.98 kN |
| Limiting speed | 4000 rpm |
| Weight | 0.67 kg |
