SKU: YAT210-SKF

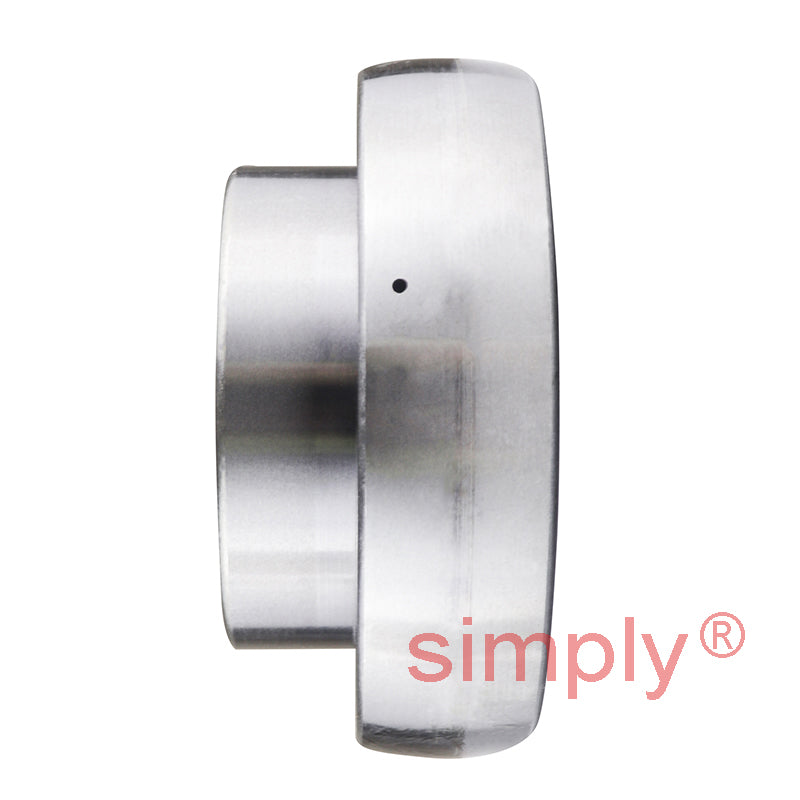

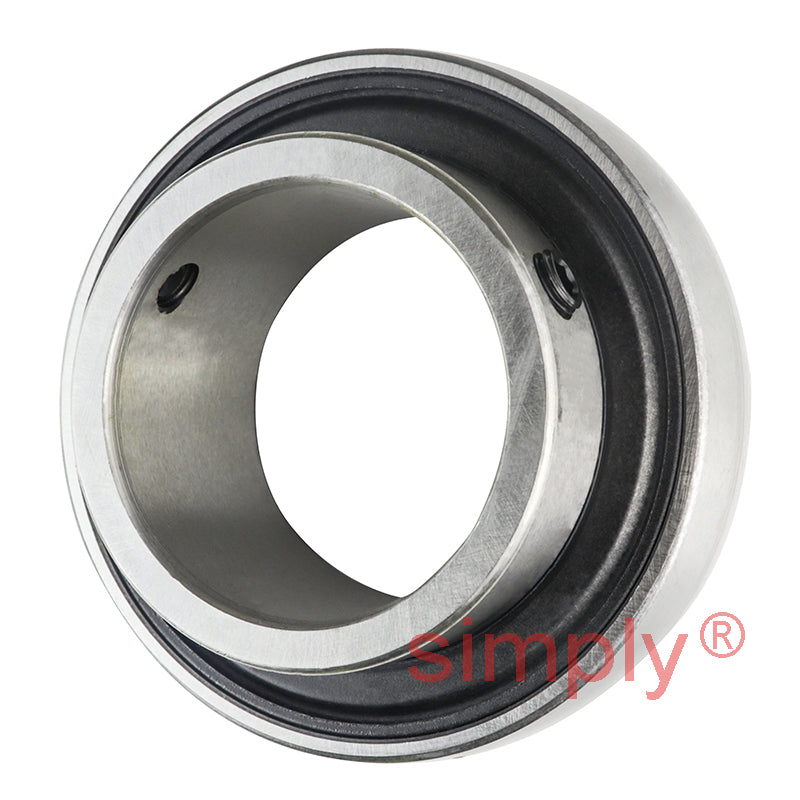

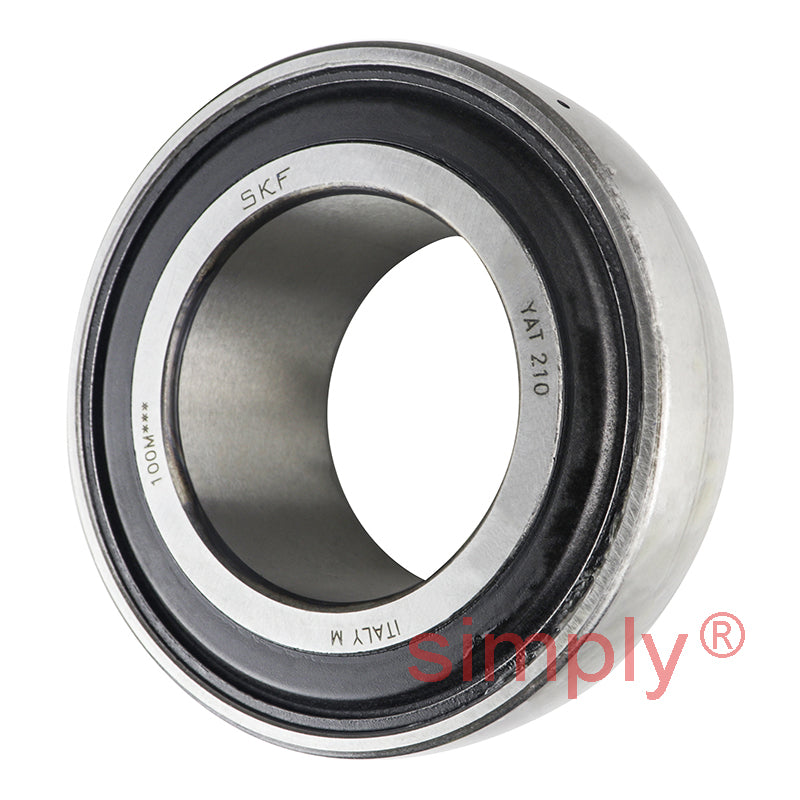

SKF YAT210 Grub Screw Type Bearing Insert with 50mm Bore 90mm Outside Diameter
SKF YAT210 Grub Screw Type Bearing Insert with 50mm Bore 90mm Outside Diameter
Regular price
$59.14
ex VAT
Regular price
Sale price
$59.14
ex VAT
In stock
Price Break
10+
$39.62
20+
$37.39
30+
$36.95
40+
$36.50
50+
$36.06
75+
$35.61
100+
$33.39
200+
$32.94
250+
$32.49
500+
$32.05
1000+
$31.16
Quantity
Couldn't load pickup availability
Description
Description
|
SKF YAT-2 Y-bearings with Grub Screws: These bearings are manufactured from high-grade carbon chromium steel. They are suitable for applications where the direction of rotation is constant or alternating. YAT 2 series bearings have an extended inner ring on one side and are sealed with the rugged standard integral seal. The outer ring has two lubrication holes as standard. Benefits: Lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 90mm
- Style:
- YAT
Technical
Technical
| d | 50mm |
|---|---|
| D | 90mm |
| B | 38.8mm |
| C | 22mm |
| d1 | 62.5mm |
| s1 | 27.6mm |
| r1r2 min | 1mm |
| Static load Cr | 23.2 kN |
| Dynamic load Cor | 35.1 kN |
| Fatigue load limit Pu | 0.98 kN |
| Limiting speed | 4000 rpm |
| Weight | 9.54 kg |
