SKU: YAT211-200-SKF

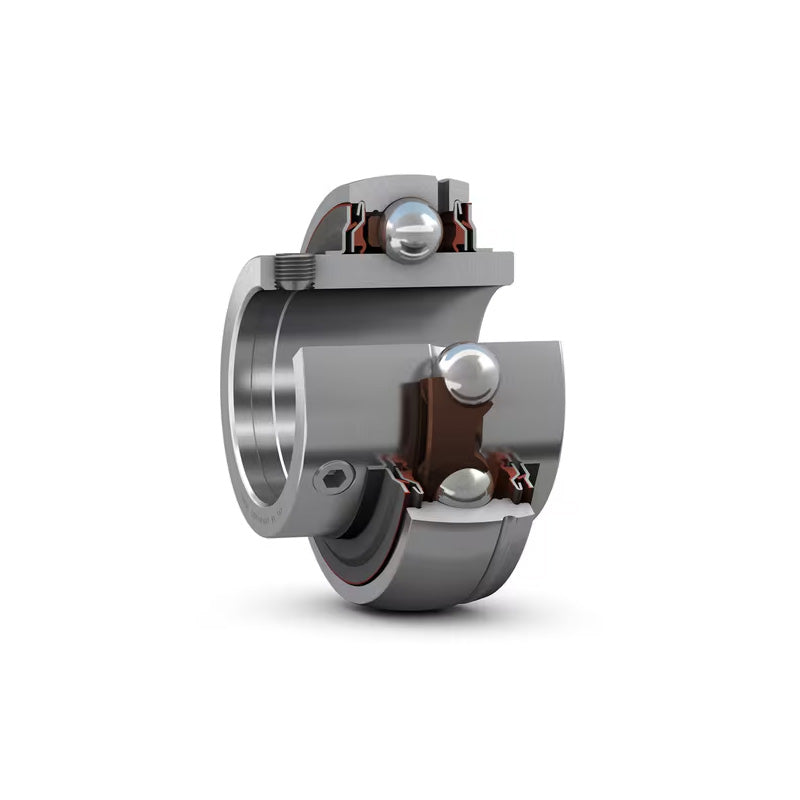

SKF YAT211-200 Grub Screw Type Bearing Insert 2 inch Bore 100mm Outside Diameter - Allow 2-3 Days
SKF YAT211-200 Grub Screw Type Bearing Insert 2 inch Bore 100mm Outside Diameter - Allow 2-3 Days
Regular price
$117.74
ex VAT
Regular price
Sale price
$117.74
ex VAT
In stock
Price Break
10+
$87.71
20+
$84.17
30+
$82.40
40+
$79.74
50+
$77.97
75+
$73.54
100+
$62.02
200+
$0.00
250+
$0.00
500+
$0.00
1000+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
SKF YAT-2 Y-bearings with Grub Screws: These bearings are manufactured from high-grade carbon chromium steel. They are suitable for applications where the direction of rotation is constant or alternating. YAT 2 series bearings have an extended inner ring on one side and are sealed with the rugged standard integral seal. The outer ring has two lubrication holes as standard. Benefits: Lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Outside Diameter:
- 100mm
- Style:
- YAT
Technical
Technical
| d | 2 inch |
|---|---|
| D | 100mm |
| B | 45mm |
| C | 25mm |
| d1 | 69.1mm |
| s1 | 32.5mm |
| r1r2 min | 1mm |
| Static load Cr | 29 kN |
| Dynamic load Cor | 43.6 kN |
| Fatigue load limit Pu | 1.25 kN |
| Limiting speed | 3600 rpm |
| Weight | 1.05 kg |
