SKU: YNB-36-S-IKO

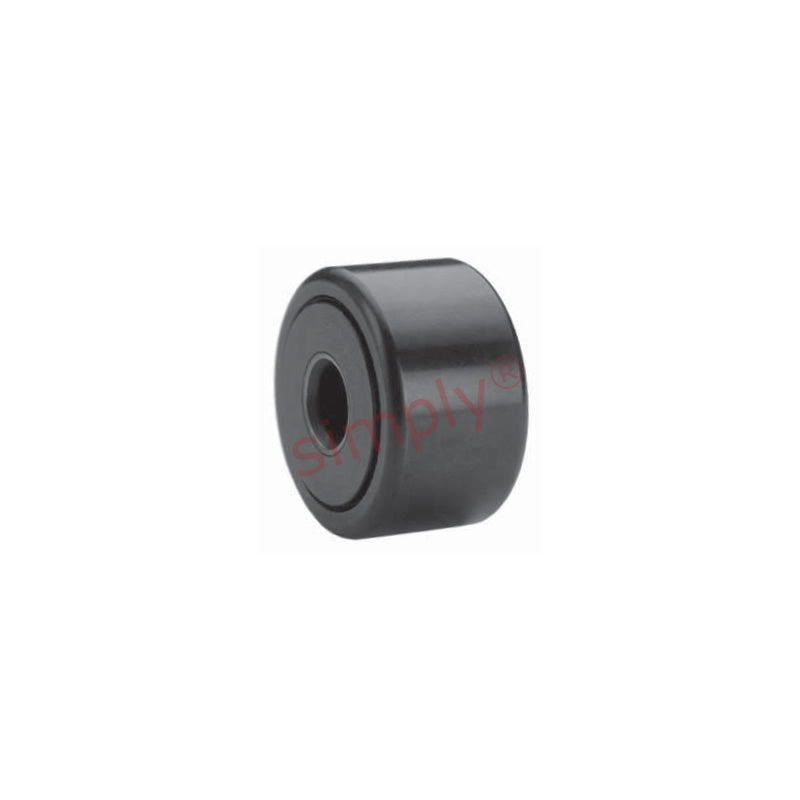

IKO YNB36S Sealed Cylindrical Cam Yoke Roller 0.3125x1.125x0.6875 inch
IKO YNB36S Sealed Cylindrical Cam Yoke Roller 0.3125x1.125x0.6875 inch
Out of stock
Description
Description
| Cam Yoke Roller: These bearings are easily mounted and ideally suited for many Cam or Track roller applications with moderate loading and shock. The bearings are sealed to help prevent contamination and retain lubrication. |
- Brand / Quality:
- IKO - High Quality
- Outside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Width:
- 17.46mm = 0.687 (11/16) inch
Technical
Technical
| A | 1.125 inch |
|---|---|
| B | 0.3125 inch |
| C | 0.625 inch |
| D | 0.6875 inch |
| E | 23/32 inch |
| F | 3/32 inch |
| Recommended shaft diameter | 0.3122 inch |
| Max static capacity | 6120 lbs |
| Basic dynamic rating | 2225 lbs |
