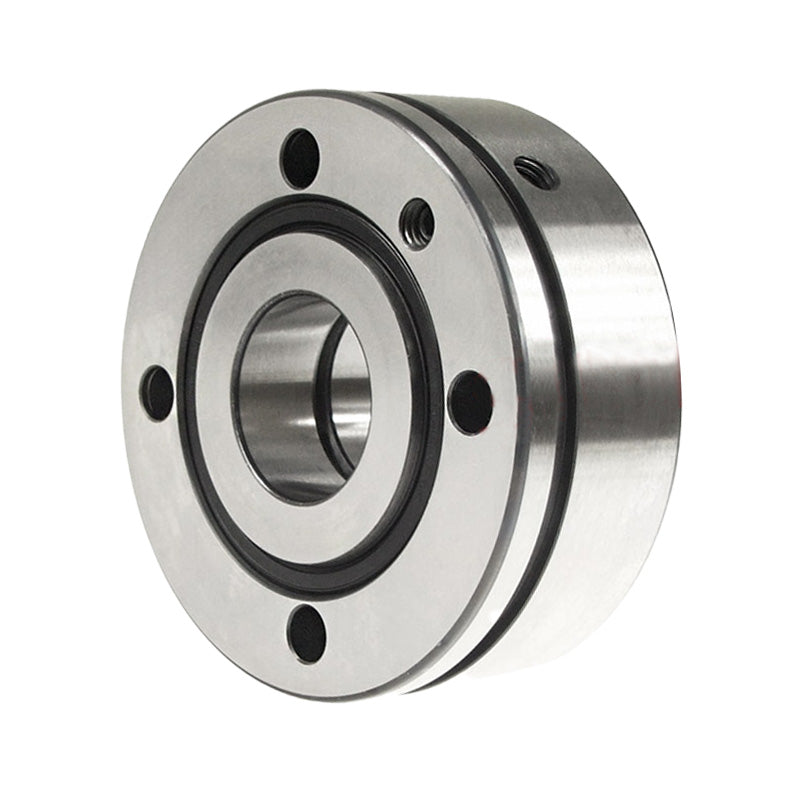

• INA ZKLF12552Z Shielded Double Row Axial Angular Contact Ball Bearing 12x55x25mm Allow 2-3 Days
  • INA
1 2

SKU: ZKLF.1255.2Z

INA ZKLF12552Z Shielded Double Row Axial Angular Contact Ball Bearing 12x55x25mm Allow 2-3 Days

INA ZKLF12552Z Shielded Double Row Axial Angular Contact Ball Bearing 12x55x25mm Allow 2-3 Days
$517.29 ex VAT
$517.29 ex VAT
Sale Sold out

In stock

Price Break
4+ $346.49
9+ $327.03
19+ $323.14
29+ $319.24
39+ $315.35
49+ $311.46
59+ $291.99
69+ $288.10
79+ $284.20
89+ $280.31
99+ $272.52

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
12mm
Outside Diameter:
55mm
Width:
25mm
Seals / Shields:
Metal Shielded
Clearance:
* Standard
Technical
d 12mm (Tolerance -0.005)
D 55mm (Tolerance -0.01)
B 25mm (Tolerance -0.25)
1) Extraction Slot Yes
b 3mm
Da max 33mm
d1 25mm
d2 6.8mm
da min 16mm
I 17mm
J 42mm
r1 min 0.6mm
r min 0.3mm
t 3 X 120°
m 0.37 kg
Basic dynamic load rating, axial 16900 N
Basic static load rating, axial 24700 N
nG Fett 7600 rpm
MRL 0.08 Nm
caL 375 Nm
ckL 50 Nm/mrad
Mm 0.068 kg x cm^2
Axial runout 2 micrometres
Qty fix screws 3 x M6
Locknut ZM12
MA 8 Nm
Axial Preload 5038 N
