SKU: ZKLF.1560.2RS

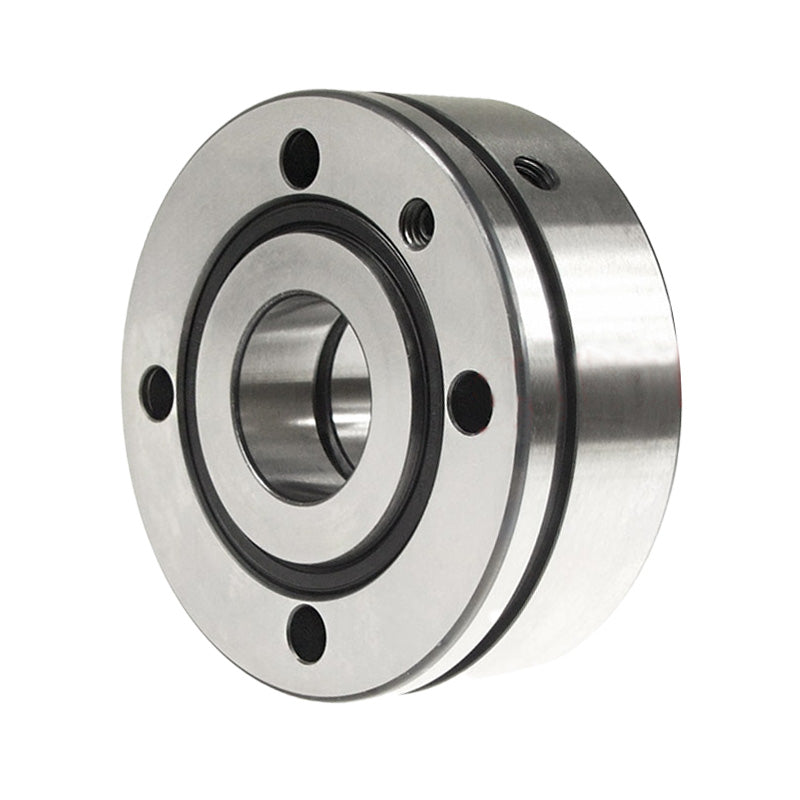

INA ZKLF15602RS Rubber Sealed Double Row Axial Angular Contact Ball Bearing 15x60x25mm Allow 2-3 Days
INA ZKLF15602RS Rubber Sealed Double Row Axial Angular Contact Ball Bearing 15x60x25mm Allow 2-3 Days
Regular price
$530.83
ex VAT
Regular price
Sale price
$530.83
ex VAT
In stock
Price Break
4+
$355.56
9+
$335.59
19+
$331.59
29+
$327.60
39+
$323.60
49+
$319.61
59+
$299.63
69+
$295.64
79+
$291.64
89+
$287.65
99+
$279.66
Quantity
Couldn't load pickup availability
Share this product
Description
Description
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 60mm
- Width:
- 25mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 15mm (Tolerance -0.005) |
|---|---|
| D | 60mm (Tolerance -0.01) |
| B | 25mm (Tolerance -0.25) |
| 1) Extraction Slot | Yes |
| b | 3mm |
| Da max | 35mm |
| d1 | 28mm |
| d2 | 6.8mm |
| da min | 20mm |
| I | 17mm |
| J | 46mm |
| r1 min | 0.6mm |
| r min | 0.3mm |
| t | 3 X 120° |
| m | 0.43 kg |
| Basic dynamic load rating, axial | 17900 N |
| Basic static load rating, axial | 28000 N |
| nG Fett | 3500 rpm |
| MRL | 0.2 Nm |
| caL | 400 Nm |
| ckL | 65 Nm/mrad |
| Mm | 0.102 kg x cm^2 |
| Axial runout | 2 micrometres |
| Qty fix screws | 3 x M6 |
| Locknut | ZM15, AM15 |
| MA | 10 Nm |
| Axial Preload | 5484 N |
