SKU: ZKLF.1762.2RS.PE

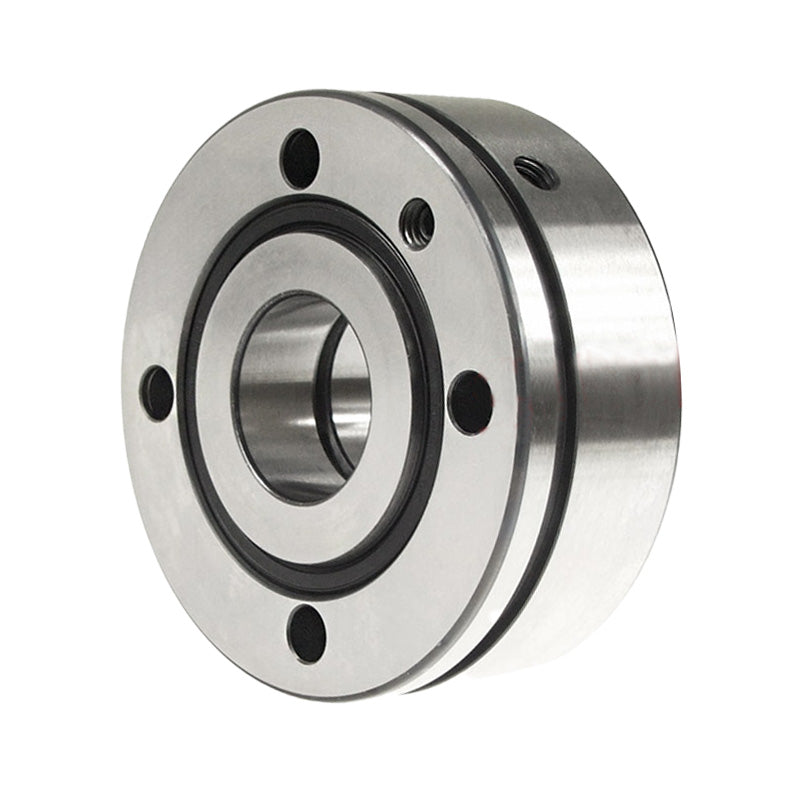

INA ZKLF17622RSPE Rubber Sealed Double Row Axial Angular Contact Ball Bearing 17x62x25mm Allow 2-3 Days
INA ZKLF17622RSPE Rubber Sealed Double Row Axial Angular Contact Ball Bearing 17x62x25mm Allow 2-3 Days
Regular price
$312.02
ex VAT
Regular price
Sale price
$312.02
ex VAT
In stock
Price Break
4+
$209.00
9+
$197.26
19+
$194.91
29+
$192.56
39+
$190.21
49+
$187.86
59+
$176.12
69+
$173.77
79+
$171.43
89+
$169.08
99+
$164.38
Quantity
Couldn't load pickup availability
Share this product
Description
Description
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 62mm
- Width:
- 25mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 17mm (Tolerance -0.01) |
|---|---|
| D | 62mm (Tolerance -0.013) |
| B | 25mm (Tolerance -0.25) |
| 1) Extraction Slot | Yes |
| b | 3mm |
| Da max | 37mm |
| d1 | 30mm |
| d2 | 6.8mm |
| da min | 23mm |
| I | 17mm |
| J | 48mm |
| r1 min | 0.6mm |
| r min | 0.3mm |
| t | 3 X 120° |
| m | 0.45 kg |
| Basic dynamic load rating, axial | 18800 N |
| Basic static load rating, axial | 31000 N |
| nG Fett | 3300 rpm |
| MRL | 0.24 Nm |
| caL | 450 Nm |
| ckL | 80 Nm/mrad |
| Mm | 0.132 kg x cm^2 |
| Axial runout | 5 micrometres |
| Qty fix screws | 3 x M6 |
| Locknut | ZM17, AM17 |
| MA | 15 Nm |
| Axial Preload | 7157 N |
