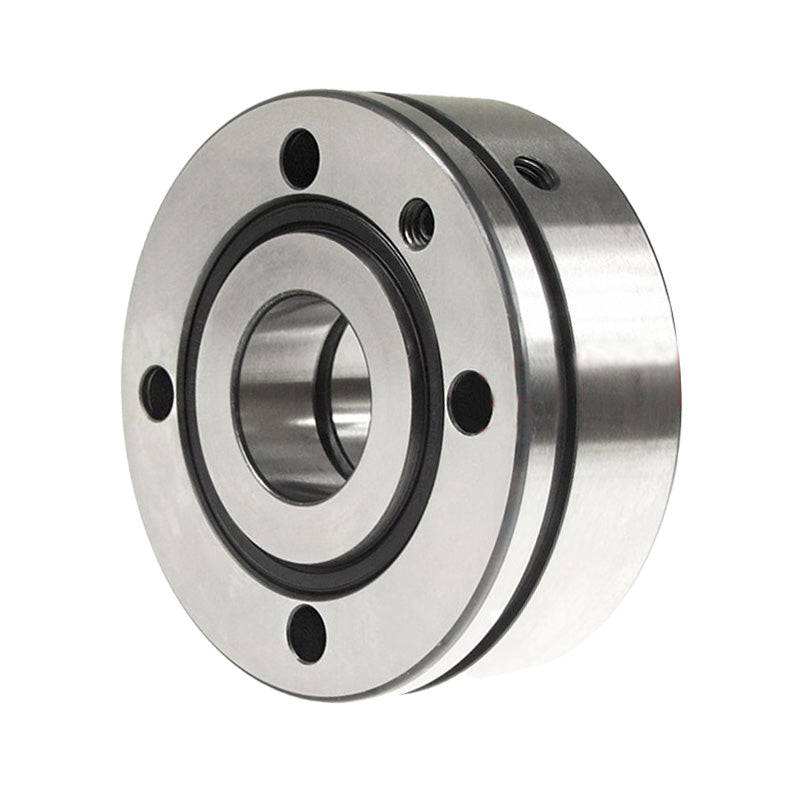

• INA ZKLF20682Z Shielded Double Row Axial Angular Contact Ball Bearing 20x68x28mm Allow 2-3 Days
  • INA
1 2

SKU: ZKLF.2068.2Z

INA ZKLF20682Z Shielded Double Row Axial Angular Contact Ball Bearing 20x68x28mm Allow 2-3 Days

INA ZKLF20682Z Shielded Double Row Axial Angular Contact Ball Bearing 20x68x28mm Allow 2-3 Days
$543.44 ex VAT
$543.44 ex VAT
Sale Sold out

Equivalent to: ZKLF40100-2Z-XL

In stock

Price Break
4+ $364.01
9+ $343.56
19+ $339.47
29+ $335.38
39+ $331.29
49+ $327.20
59+ $306.75
69+ $302.66
79+ $298.57
89+ $294.48
99+ $286.30

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
20mm
Outside Diameter:
68mm
Width:
28mm
Seals / Shields:
Metal Shielded
Clearance:
* Standard
Technical
d 20mm (Tolerance -0.005)
D 68mm (Tolerance -0.01)
B 28mm (Tolerance -0.25)
1) Extraction Slot Yes
b 3mm
Da max 43mm
d1 34.5mm
d2 6.8mm
da min 25mm
I 19mm
J 53mm
r1 min 0.6mm
r min 0.3mm
t 4 X 90°
m 0.61 kg
Basic dynamic load rating, axial 26000 N
Basic static load rating, axial 47000 N
nG Fett 5400 rpm
MRL 0.15 Nm
caL 650 Nm
ckL 140 Nm/mrad
Mm 0.273 kg x cm^2
Axial runout 2 micrometres
Qty fix screws 4 x M6
Locknut ZM20, AM20
MA 18 Nm
Axial Preload 9079 N
