• INA ZKLF25752RS Rubber Sealed Double Row Axial Angular Contact Ball Bearing 25x75x28mm Allow 2-3 Days
  • INA
1 2

SKU: ZKLF.2575.2RS

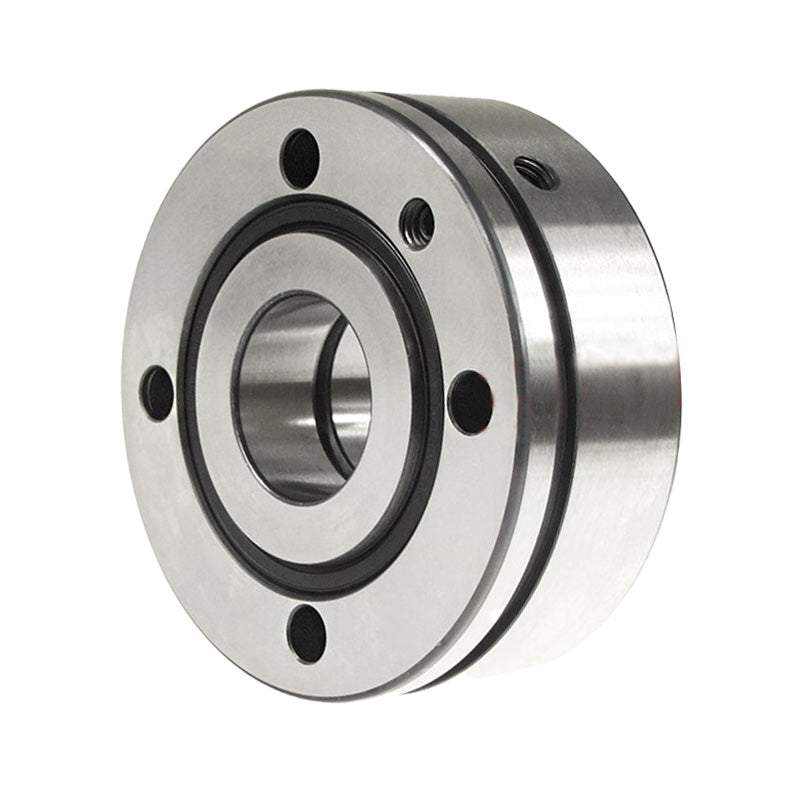

INA ZKLF25752RS Rubber Sealed Double Row Axial Angular Contact Ball Bearing 25x75x28mm Allow 2-3 Days

INA ZKLF25752RS Rubber Sealed Double Row Axial Angular Contact Ball Bearing 25x75x28mm Allow 2-3 Days
$563.79 ex VAT
$563.79 ex VAT
Sale Sold out

In stock

Price Break
4+ $377.64
9+ $356.43
19+ $352.19
29+ $347.94
39+ $343.70
49+ $339.46
59+ $318.24
69+ $314.00
79+ $309.75
89+ $305.51
99+ $297.02

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
25mm
Outside Diameter:
75mm
Width:
28mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Technical
d 25mm (Tolerance -0.005)
D 75mm (Tolerance -0.01)
B 28mm (Tolerance -0.25)
1) Extraction Slot Yes
b 3mm
Da max 48mm
d1 40.5mm
d2 6.8mm
da min 32mm
I 19mm
J 58mm
r1 min 0.6mm
r min 0.3mm
t 4 X 90°
m 0.72 kg
Basic dynamic load rating, axial 27500 N
Basic static load rating, axial 55000 N
nG Fett 2600 rpm
MRL 0.4 Nm
caL 750 Nm
ckL 200 Nm/mrad
Mm 0.486 kg x cm^2
Axial runout 2 micrometres
Qty fix screws 4 x M6
Locknut ZM25, AM25
MA 25 Nm
Axial Preload 9410 N
