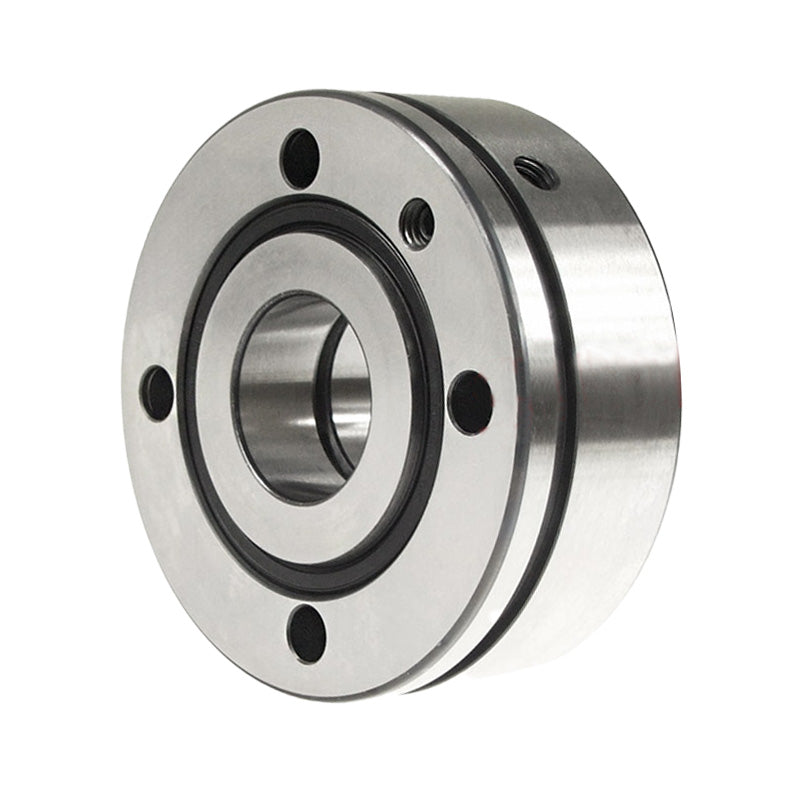

• INA ZKLF301002RS Rubber Sealed Double Row Axial Angular Contact Ball Bearing 30x100x38mm Allow 2-3 Days
  • INA
1 2

SKU: ZKLF.30100.2RS

INA ZKLF301002RS Rubber Sealed Double Row Axial Angular Contact Ball Bearing 30x100x38mm Allow 2-3 Days

INA ZKLF301002RS Rubber Sealed Double Row Axial Angular Contact Ball Bearing 30x100x38mm Allow 2-3 Days
$1,099.59 ex VAT
$1,099.59 ex VAT
Sale Sold out

In stock

Price Break
4+ $736.54
9+ $695.16
19+ $686.88
29+ $678.61
39+ $670.33
49+ $662.06
59+ $620.68
69+ $612.40
79+ $604.13
89+ $595.85
99+ $579.30

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
30mm
Outside Diameter:
100mm
Width:
38mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Technical
d 30mm (Tolerance -0.005)
D 100mm (Tolerance -0.01)
B 38mm (Tolerance -0.25)
1) Extraction Slot Yes
b 3mm
Da max 64mm
d1 51mm
d2 8.8mm
da min 47mm
I 30mm
J 80mm
r1 min 0.6mm
r min 0.3mm
t 8X 45°
m 1.63 kg
Basic dynamic load rating, axial 59000 N
Basic static load rating, axial 108000 N
nG Fett 2100 rpm
MRL 0.5 Nm
caL 950 Nm
ckL 400 Nm/mrad
Mm 1.91 kg x cm^2
Axial runout 2.5 micrometres
Qty fix screws 8 x M8
Locknut ZM30/52, AM30
MA 65 Nm
Axial Preload 19509 N
