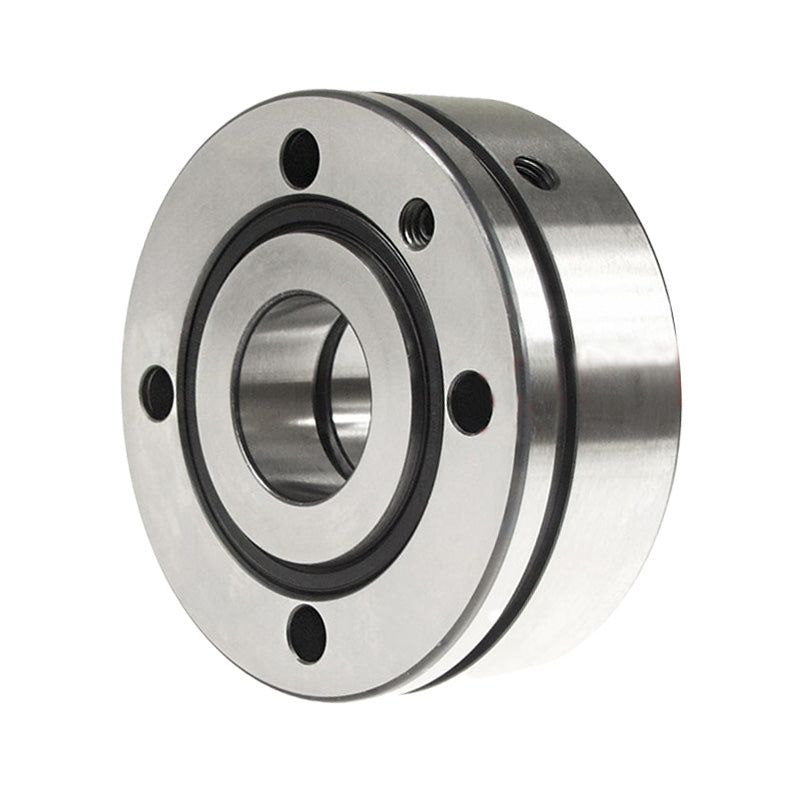

• INA ZKLF30802RS Rubber Sealed Double Row Axial Angular Contact Ball Bearing 30x80x28mm Allow 2-3 Days
  • INA
1 2

SKU: ZKLF.3080.2RS

INA ZKLF30802RS Rubber Sealed Double Row Axial Angular Contact Ball Bearing 30x80x28mm Allow 2-3 Days

INA ZKLF30802RS Rubber Sealed Double Row Axial Angular Contact Ball Bearing 30x80x28mm Allow 2-3 Days
$619.12 ex VAT
$619.12 ex VAT
Sale Sold out

In stock

Price Break
4+ $414.70
9+ $391.41
19+ $386.75
29+ $382.09
39+ $377.43
49+ $372.77
59+ $349.47
69+ $344.81
79+ $340.15
89+ $335.49
99+ $326.17

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
30mm
Outside Diameter:
80mm
Width:
28mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Technical
d 30mm (Tolerance -0.005)
D 80mm (Tolerance -0.01)
B 28mm (Tolerance -0.25)
1) Extraction Slot Yes
b 3mm
Da max 53mm
d1 45.5mm
d2 6.8mm
da min 40mm
I 19mm
J 63mm
r1 min 0.6mm
r min 0.3mm
t 6 X 60°
m 0.78 kg
Basic dynamic load rating, axial 29000 N
Basic static load rating, axial 64000 N
nG Fett 2200 rpm
MRL 0.5 Nm
caL 850 Nm
ckL 300 Nm/mrad
Mm 0.73 kg x cm^2
Axial runout 2.5 micrometres
Qty fix screws 6 x M6
Locknut ZM30, AM30
MA 32 Nm
Axial Preload 10451 N
