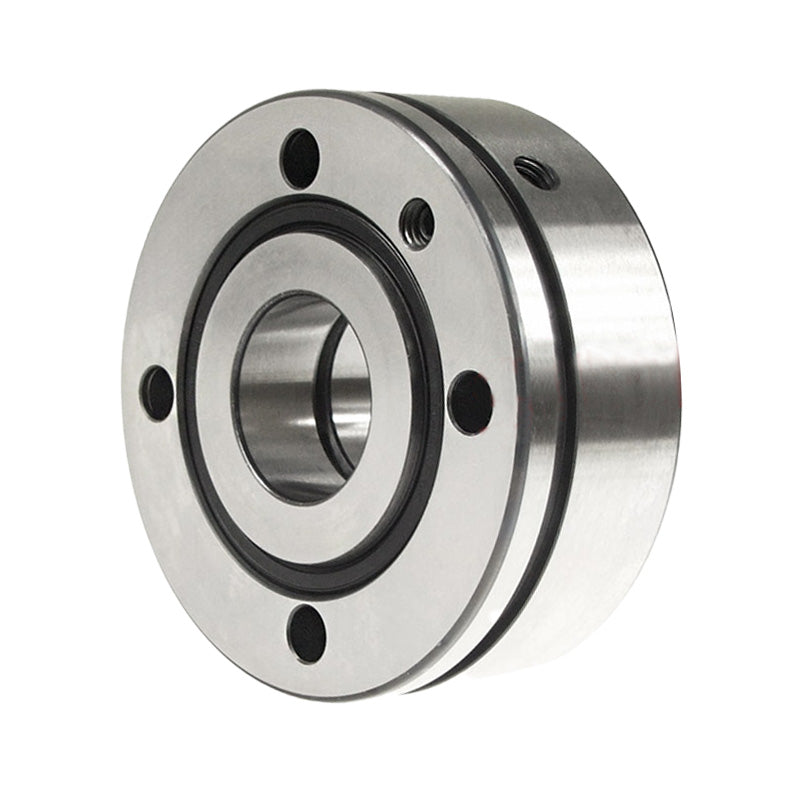

• INA ZKLF35902Z Shielded Double Row Axial Angular Contact Ball Bearing 35x90x34mm Allow 2-3 Days
  • INA
1 2

SKU: ZKLF.3590.2Z

INA ZKLF35902Z Shielded Double Row Axial Angular Contact Ball Bearing 35x90x34mm Allow 2-3 Days

INA ZKLF35902Z Shielded Double Row Axial Angular Contact Ball Bearing 35x90x34mm Allow 2-3 Days
$636.38 ex VAT
$636.38 ex VAT
Sale Sold out

In stock

Price Break
4+ $426.27
9+ $402.32
19+ $397.53
29+ $392.74
39+ $387.95
49+ $383.16
59+ $359.21
69+ $354.42
79+ $349.63
89+ $344.84
99+ $335.27

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
35mm
Outside Diameter:
90mm
Width:
34mm
Seals / Shields:
Metal Shielded
Clearance:
* Standard
Technical
d 35mm (Tolerance -0.005)
D 90mm (Tolerance -0.01)
B 34mm (Tolerance -0.25)
1) Extraction Slot Yes
b 3mm
Da max 62mm
d1 52mm
d2 8.8mm
da min 45mm
I 25mm
J 75mm
r1 min 0.6mm
r min 0.3mm
t 4 X 90°
m 1.13 kg
Basic dynamic load rating, axial 41000 N
Basic static load rating, axial 89000 N
nG Fett 3800 rpm
MRL 0.3 Nm
caL 900 Nm
ckL 400 Nm/mrad
Mm 1.51 kg x cm^2
Axial runout 2.5 micrometres
Qty fix screws 4 x M8
Locknut ZM35, AM35/58
MA 40 Nm
Axial Preload 10770 N
