SKU: ZKLF.40115.2RS

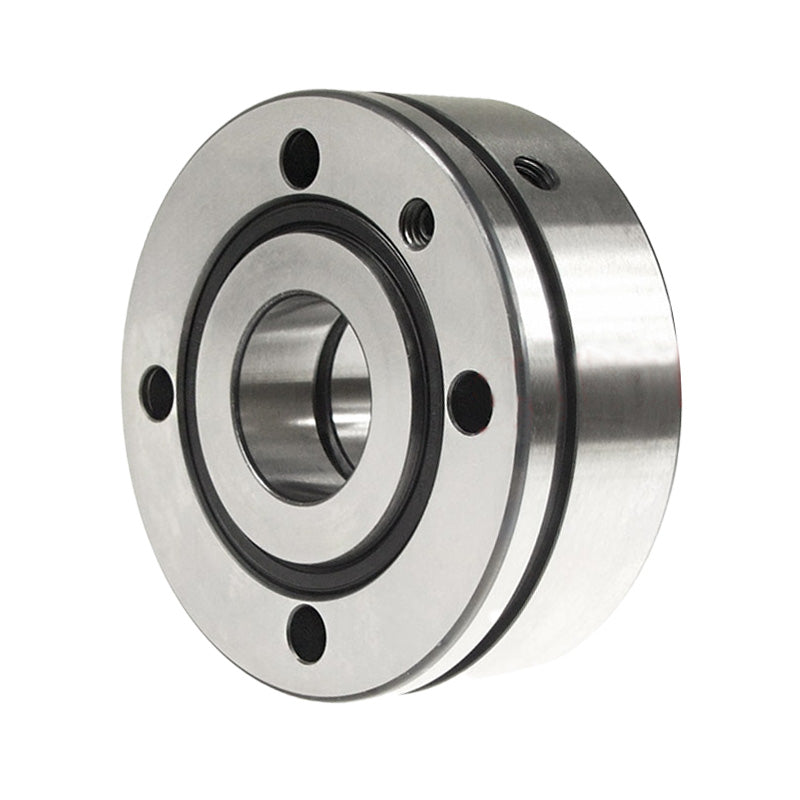

INA ZKLF401152RS Rubber Sealed Double Row Axial Angular Contact Ball Bearing 50x115x46mm Allow 2-3 Days

Name: INA ZKLF401152RS Rubber Sealed Double Row Axial Angular Contact Ball Bearing 50x115x46mm Allow 2-3 Days
Brand: INA
SKU: ZKLF.40115.2RS
Price: 1404.99 USD
Availability: InStock

$1,404.99 ex VAT

Sale Sold out

In stock

Price Break

4+ $941.10

9+ $888.23

19+ $877.66

29+ $867.08

39+ $856.51

49+ $845.94

59+ $793.07

69+ $782.49

79+ $771.92

89+ $761.34

99+ $740.19

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: INA - High Quality
Inside Diameter:: 50mm
Outside Diameter:: 115mm
Width:: 46mm
Seals / Shields:: Rubber Sealed
Clearance:: * Standard

Technical

d	50mm (Tolerance -0.005)
D	115mm (Tolerance -0.01)
B	46mm (Tolerance -0.25)
1) Extraction Slot	Yes
b	3mm
Da max	80mm
d1	65mm
d2	8.8mm
da min	56mm
I	36mm
J	94mm
r1 min	0.6mm
r min	0.6mm
t	12 X 30°
m	2.2 kg
Basic dynamic load rating, axial	72000 N
Basic static load rating, axial	149000 N
nG Fett	1600 rpm
MRL	1.3 Nm
caL	1200 Nm
ckL	750 Nm/mrad
Mm	5.5 kg x cm^2
Axial runout	2.5 micrometres
Qty fix screws	12 x M8
Locknut	ZMA40/62, AM40
MA	110 Nm
Axial Preload	25185 N
