SKU: ZKLF.50115.2Z

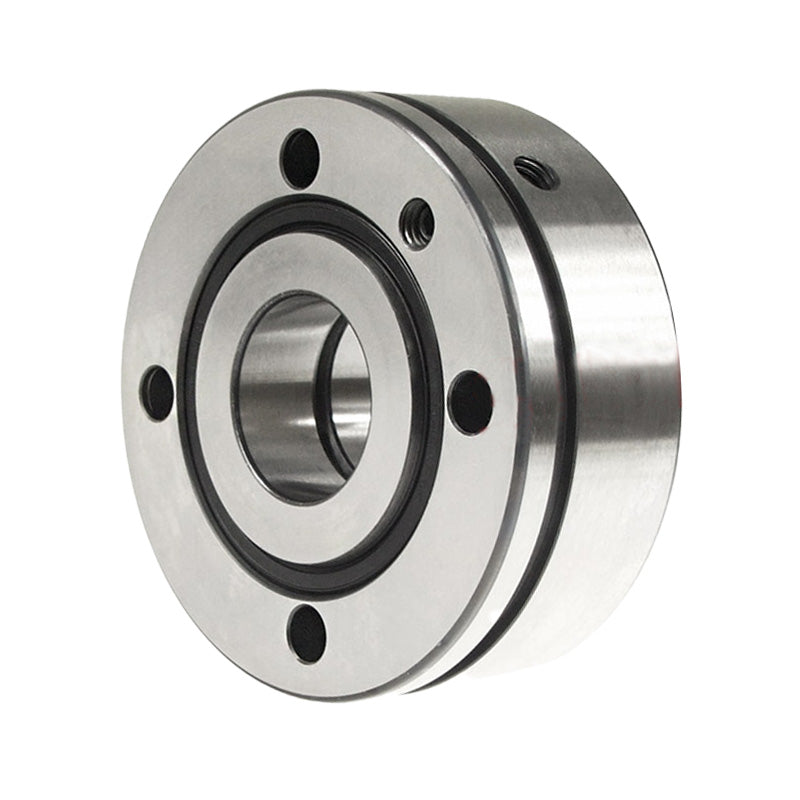

INA ZKLF501152Z Shielded Double Row Axial Angular Contact Ball Bearing 50x115x34mm Allow 2-3 Days
INA ZKLF501152Z Shielded Double Row Axial Angular Contact Ball Bearing 50x115x34mm Allow 2-3 Days
Regular price
$1,215.68
ex VAT
Regular price
Sale price
$1,215.68
ex VAT
In stock
Price Break
4+
$814.30
9+
$768.55
19+
$759.40
29+
$750.25
39+
$741.10
49+
$731.95
59+
$686.21
69+
$677.06
79+
$667.91
89+
$658.76
99+
$640.46
Quantity
Couldn't load pickup availability
Share this product
Description
Description
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 115mm
- Width:
- 34mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 50mm (Tolerance -0.005) |
|---|---|
| D | 115mm (Tolerance -0.01) |
| B | 34mm (Tolerance -0.25) |
| 1) Extraction Slot | Yes |
| b | 3mm |
| Da max | 82mm |
| d1 | 72mm |
| d2 | 8.8mm |
| da min | 63mm |
| I | 25mm |
| J | 94mm |
| r1 min | 0.6mm |
| r min | 0.3mm |
| t | 6 X 60° |
| m | 1.86 kg |
| Basic dynamic load rating, axial | 46500 N |
| Basic static load rating, axial | 126000 N |
| nG Fett | 1500 rpm |
| MRL | 0.9 Nm |
| caL | 1250 Nm |
| ckL | 1000 Nm/mrad |
| Mm | 5.24 kg x cm^2 |
| Axial runout | 2.5 micrometres |
| Qty fix screws | 6 x M8 |
| Locknut | ZM50, AM50 |
| MA | 85 Nm |
| Axial Preload | 17009 N |
