• INA ZKLN0624ZZ Shielded Double Row Axial Angular Contact Ball Bearing 6x24x15mm Allow 2-3 Days
  • INA
1 2

SKU: ZKLN.0624.ZZ

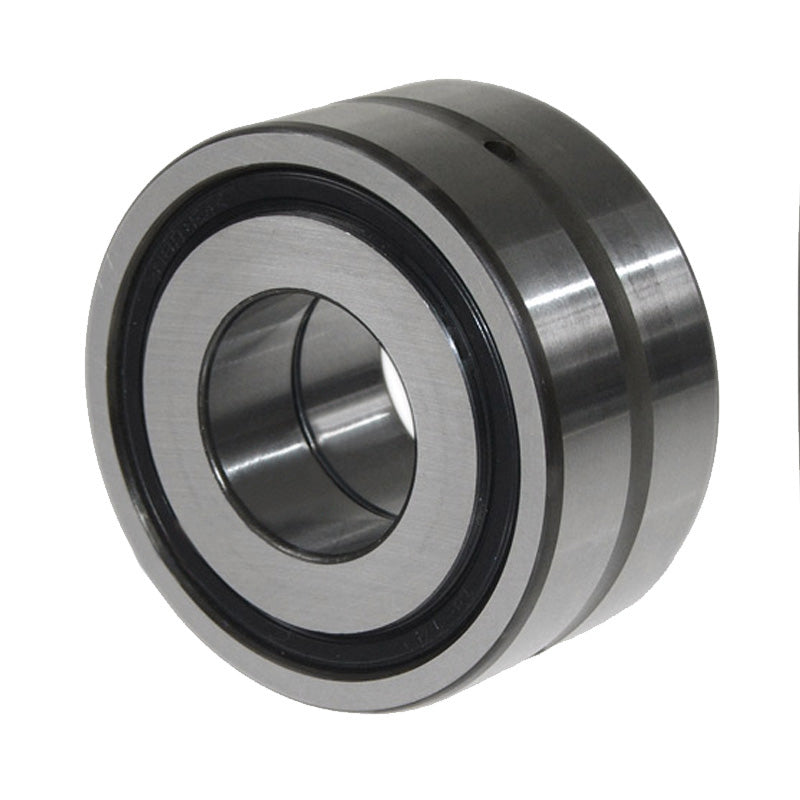

INA ZKLN0624ZZ Shielded Double Row Axial Angular Contact Ball Bearing 6x24x15mm Allow 2-3 Days

INA ZKLN0624ZZ Shielded Double Row Axial Angular Contact Ball Bearing 6x24x15mm Allow 2-3 Days
$214.44 ex VAT
$214.44 ex VAT
Sale Sold out

In stock

Price Break
4+ $143.64
9+ $135.57
19+ $133.95
29+ $132.34
39+ $130.73
49+ $129.11
59+ $121.04
69+ $119.43
79+ $117.81
89+ $116.20
99+ $112.97

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
6mm
Outside Diameter:
24mm
Width:
15mm
Seals / Shields:
Metal Shielded
Clearance:
* Standard
Technical
d 6mm (Tolerance +0.002 / -0.003)
D 24mm (Tolerance -0.01)
B 15mm (Tolerance -0.25)
Da max 19mm
d1 14mm
da min 9mm
r1 min 0.6mm
r min 0.3mm
Basic dynamic load rating, axial 6900 N
Basic static load rating, axial 8500 N
nG Fett 12000 rpm
MRL 0.02 Nm
caL 200 N/micrometres
ckL 8 Nm/mrad
Mm 0.0044 kg x cm^2
Axial runout 2 micrometres
Locknut ZM06
MA 2 Nm
Axial preload force 2404 N
