• INA ZKLN10342RSPE Rubber Sealed Double Row Axial Angular Contact Ball Bearing 10x34x20mm Allow 2-3 Days
  • INA
1 2

SKU: ZKLN.1034.2RS.PE

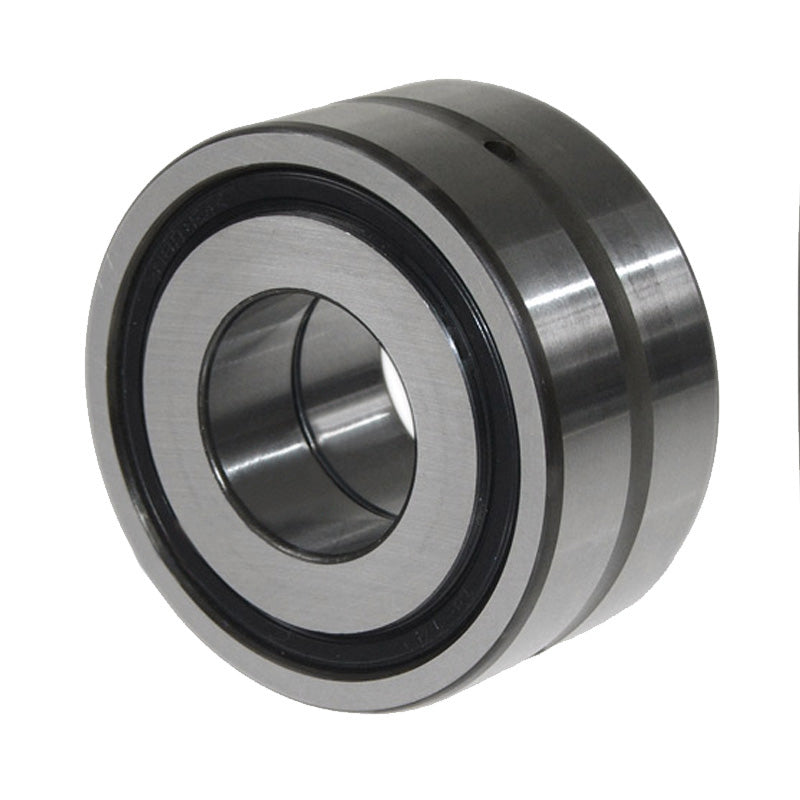

INA ZKLN10342RSPE Rubber Sealed Double Row Axial Angular Contact Ball Bearing 10x34x20mm Allow 2-3 Days

INA ZKLN10342RSPE Rubber Sealed Double Row Axial Angular Contact Ball Bearing 10x34x20mm Allow 2-3 Days
$277.67 ex VAT
$277.67 ex VAT
Sale Sold out

In stock

Price Break
4+ $185.99
9+ $175.54
19+ $173.45
29+ $171.36
39+ $169.27
49+ $167.18
59+ $156.74
69+ $154.65
79+ $152.56
89+ $150.47
99+ $146.29

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
10mm
Outside Diameter:
34mm
Width:
20mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Technical
d 10mm (Tolerance -0.008)
D 34mm (Tolerance -0.011)
B 20mm (Tolerance -0.25)
Da max 28mm
d1 21mm
da min 14mm
r1 min 0.6mm
r min 0.3mm
Basic dynamic load rating, axial 13400 N
Basic static load rating, axial 18800 N
nG Fett 4600 rpm
MRL 0.12 Nm
caL 325 N/micrometres
ckL 25 Nm/mrad
Mm 0.029 kg x cm^2
Axial runout 5 micrometres
Locknut ZM10
MA 6 Nm
Axial preload force 4891 N
