• INA ZKLN1034ZZ Shielded Double Row Axial Angular Contact Ball Bearing 10x34x20mm Allow 2-3 Days
  • INA
1 2

SKU: ZKLN.1034.ZZ

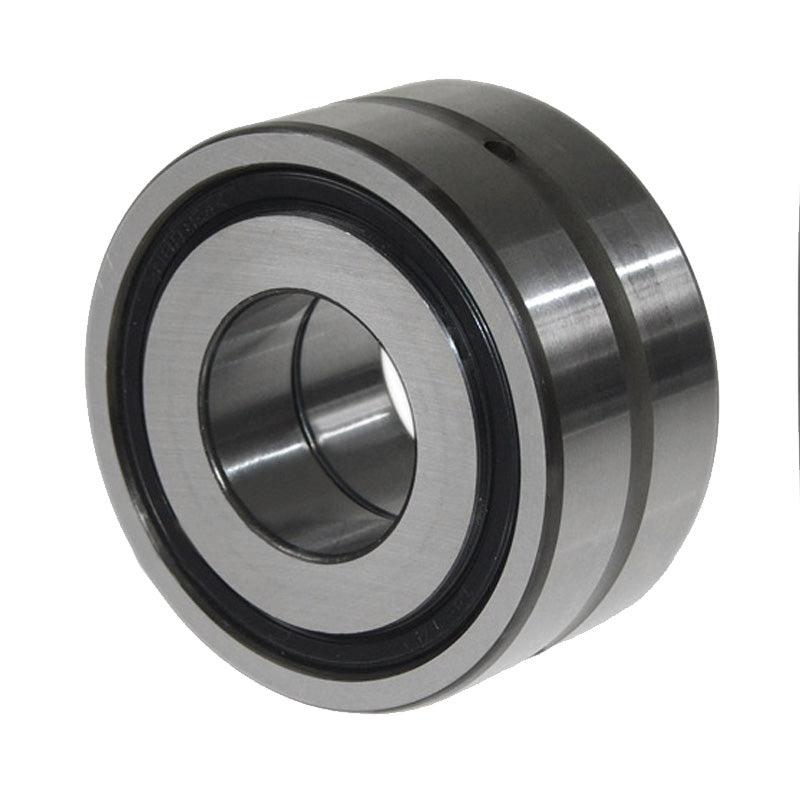

INA ZKLN1034ZZ Shielded Double Row Axial Angular Contact Ball Bearing 10x34x20mm Allow 2-3 Days

INA ZKLN1034ZZ Shielded Double Row Axial Angular Contact Ball Bearing 10x34x20mm Allow 2-3 Days
$395.38 ex VAT
$395.38 ex VAT
Sale Sold out

In stock

Price Break
4+ $264.84
9+ $249.96
19+ $246.98
29+ $244.01
39+ $241.03
49+ $238.06
59+ $223.18
69+ $220.20
79+ $217.23
89+ $214.25
99+ $208.30

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
10mm
Outside Diameter:
34mm
Width:
20mm
Seals / Shields:
Metal Shielded
Clearance:
* Standard
Technical
d 10mm (Tolerance -0.005)
D 34mm (Tolerance -0.01)
B 20mm (Tolerance -0.25)
Da max 28mm
d1 21mm
da min 14mm
r1 min 0.6mm
r min 0.3mm
Basic dynamic load rating, axial 13400 N
Basic static load rating, axial 18800 N
nG Fett 8600 rpm
MRL 0.06 Nm
caL 325 N/micrometres
ckL 25 Nm/mrad
Mm 0.029 kg x cm^2
Axial runout 2 micrometres
Locknut ZM10
MA 6 Nm
Axial preload force 4891 N
