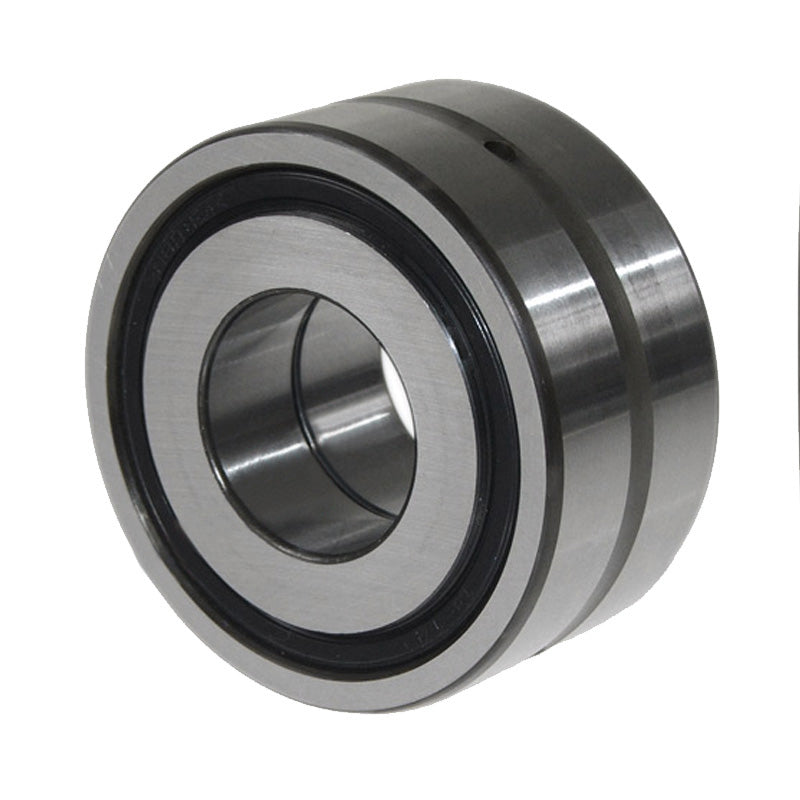

• INA ZKLN20522RSPE Rubber Sealed Double Row Axial Angular Contact Ball Bearing 20x52x28mm Allow 2-3 Days
  • INA
1 2

SKU: ZKLN.2052.2RS.PE

INA ZKLN20522RSPE Rubber Sealed Double Row Axial Angular Contact Ball Bearing 20x52x28mm Allow 2-3 Days

INA ZKLN20522RSPE Rubber Sealed Double Row Axial Angular Contact Ball Bearing 20x52x28mm Allow 2-3 Days
$580.43 ex VAT
$580.43 ex VAT
Sale Sold out

In stock

Price Break
4+ $388.79
9+ $366.95
19+ $362.58
29+ $358.21
39+ $353.84
49+ $349.47
59+ $327.63
69+ $323.26
79+ $318.89
89+ $314.52
99+ $305.79

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
20mm
Outside Diameter:
52mm
Width:
28mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Technical
d 20mm (Tolerance -0.01)
D 52mm (Tolerance -0.013)
B 28mm (Tolerance -0.25)
Da max 43mm
d1 34.5mm
da min 25mm
r1 min 0.6mm
r min 0.3mm
Basic dynamic load rating, axial 26000 N
Basic static load rating, axial 47000 N
nG Fett 3000 rpm
MRL 0.3 Nm
caL 650 N/micrometres
ckL 140 Nm/mrad
Mm 0.273 kg x cm^2
Axial runout 5 micrometres
Locknut ZM20, AM20
MA 18 Nm
Axial preload force 9079 N
