SKU: ZKLN.2052.ZZ

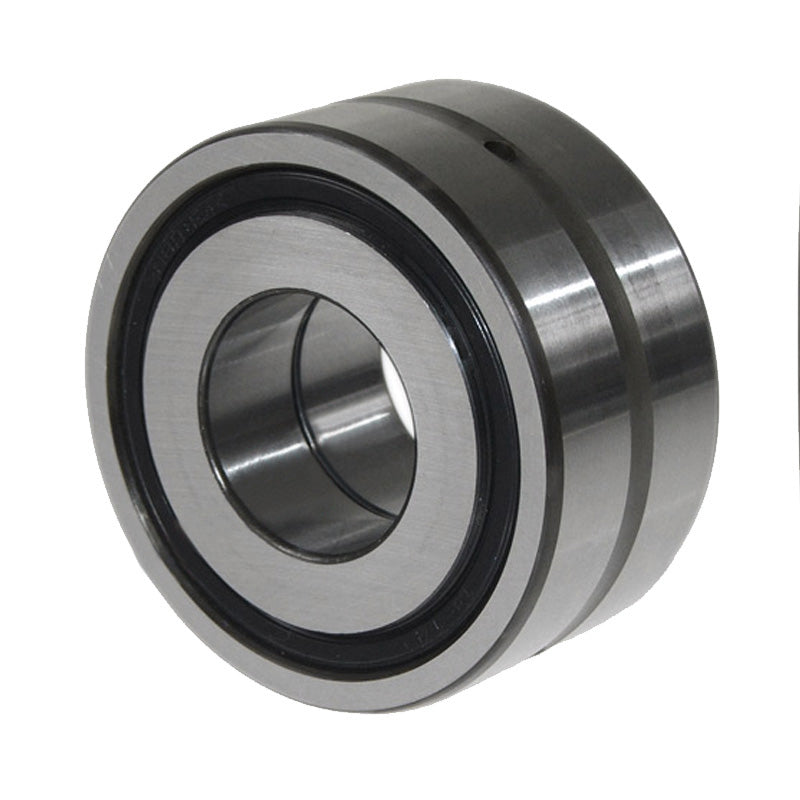

INA ZKLN2052ZZ Shielded Double Row Axial Angular Contact Ball Bearing 20x52x28mm

Name: INA ZKLN2052ZZ Shielded Double Row Axial Angular Contact Ball Bearing 20x52x28mm
Brand: INA
SKU: ZKLN.2052.ZZ
Price: 467.57 USD
Availability: InStock

$467.57 ex VAT

Sale Sold out

In stock

Price Break

4+ $313.19

9+ $295.60

19+ $292.08

29+ $288.56

39+ $285.04

49+ $281.52

59+ $263.93

69+ $260.41

79+ $256.89

89+ $253.37

99+ $246.33

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: INA - High Quality
Inside Diameter:: 20mm
Outside Diameter:: 52mm
Width:: 28mm
Seals / Shields:: Metal Shielded
Clearance:: * Standard

Technical

d	20mm (Tolerance -0.005)
D	52mm (Tolerance -0.01)
B	28mm (Tolerance -0.25)
Da max	43mm
d1	34.5mm
da min	25mm
r1 min	0.6mm
r min	0.3mm
Basic dynamic load rating, axial	26000 N
Basic static load rating, axial	47000 N
nG Fett	5400 rpm
MRL	0.15 Nm
caL	650 N/micrometres
ckL	140 Nm/mrad
Mm	0.273 kg x cm^2
Axial runout	2 micrometres
Locknut	ZM20, AM20
MA	18 Nm
Axial preload force	9079 N
