SKU: ZKLN.4090.ZZ

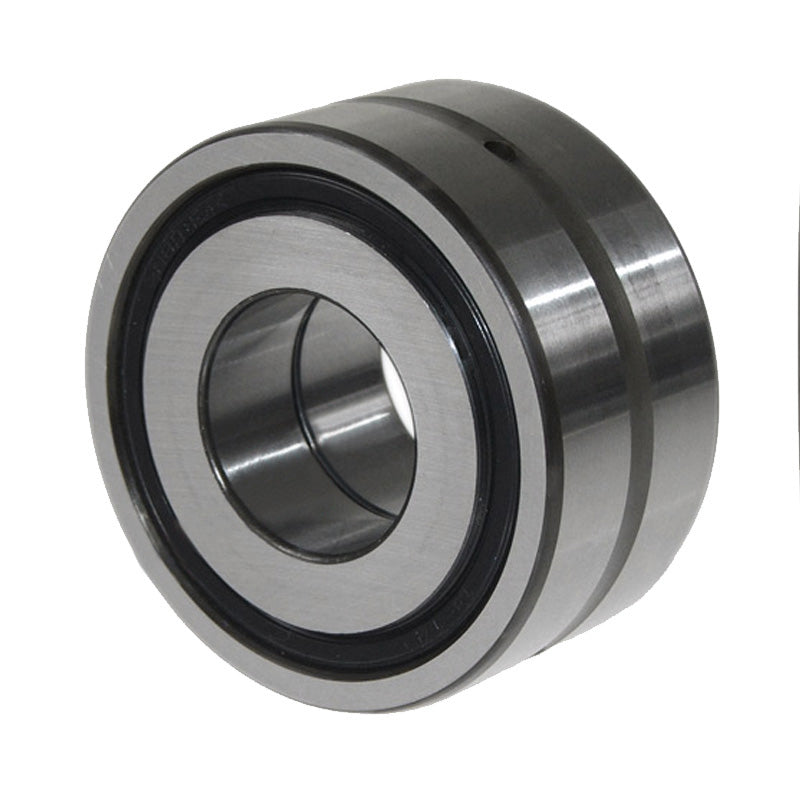

INA ZKLN4090ZZ Shielded Double Row Axial Angular Contact Ball Bearing 40x90x46mm Allow 2-3 Days

Name: INA ZKLN4090ZZ Shielded Double Row Axial Angular Contact Ball Bearing 40x90x46mm Allow 2-3 Days
Brand: INA
SKU: ZKLN.4090.ZZ
Price: 1485.85 USD
Availability: InStock

$1,485.85 ex VAT

Sale Sold out

In stock

Price Break

4+ $995.27

9+ $939.36

19+ $928.17

29+ $916.99

39+ $905.81

49+ $894.62

59+ $838.71

69+ $827.53

79+ $816.34

89+ $805.16

99+ $782.80

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: INA - High Quality
Inside Diameter:: 40mm
Outside Diameter:: 90mm
Width:: 46mm
Seals / Shields:: Metal Shielded
Clearance:: * Standard

Technical

d	40mm (Tolerance -0.005)
D	90mm (Tolerance -0.01)
B	46mm (Tolerance -0.25)
Da max	80mm
d1	65mm
da min	56mm
r1 min	0.6mm
r min	0.6mm
Basic dynamic load rating, axial	72000 N
Basic static load rating, axial	149000 N
nG Fett	3100 rpm
MRL	0.65 Nm
caL	1200 N/micrometres
ckL	750 Nm/mrad
Mm	5.5 kg x cm^2
Axial runout	2.5 micrometres
Locknut	ZMA40/62, AM40
MA	110 Nm
Axial preload force	25185 N
