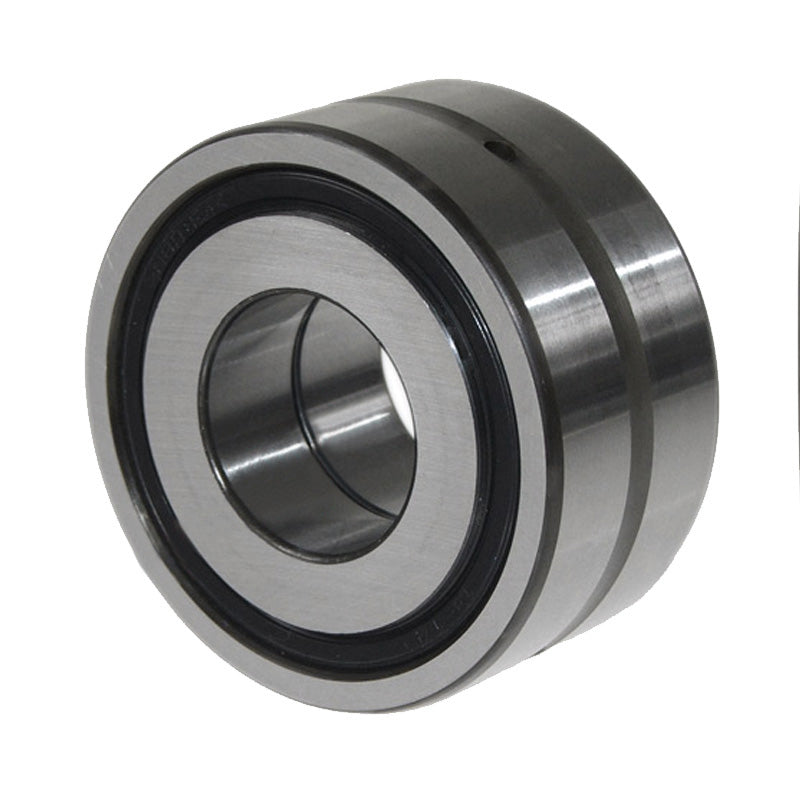

• INA ZKLN90190ZZ Shielded Double Row Axial Angular Contact Ball Bearing 90x150x55mm Allow 2-3 Days
  • INA
1 2

SKU: ZKLN.90190.ZZ

INA ZKLN90190ZZ Shielded Double Row Axial Angular Contact Ball Bearing 90x150x55mm Allow 2-3 Days

INA ZKLN90190ZZ Shielded Double Row Axial Angular Contact Ball Bearing 90x150x55mm Allow 2-3 Days
$3,011.64 ex VAT
$3,011.64 ex VAT
Sale Sold out

In stock

Price Break
4+ $2,017.28
9+ $1,903.95
19+ $1,881.29
29+ $1,858.62
39+ $1,835.95
49+ $1,813.29
59+ $1,699.96
69+ $1,677.29
79+ $1,654.63
89+ $1,631.96
99+ $1,586.63

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
90mm
Outside Diameter:
150mm
Width:
55mm
Seals / Shields:
Metal Shielded
Clearance:
* Standard
Technical
d 90mm (Tolerance -0.008)
D 150mm (Tolerance -0.015)
B 55mm (Tolerance -0.25)
Da max 138mm
d1 120mm
da min 116mm
r1 min 0.6mm
r min 0.6mm
Basic dynamic load rating, axial 135000 N
Basic static load rating, axial 395000 N
nG Fett 2300 rpm
MRL 2.3 Nm
caL 1700 N/micrometres
ckL 4400 Nm/mrad
Mm 59.9 kg x cm^2
Axial runout 3 micrometres
Locknut ZMA90/130, AM90
MA 200 Nm
Axial preload force 25198 N
