SKU: ZUC206FG-SNR

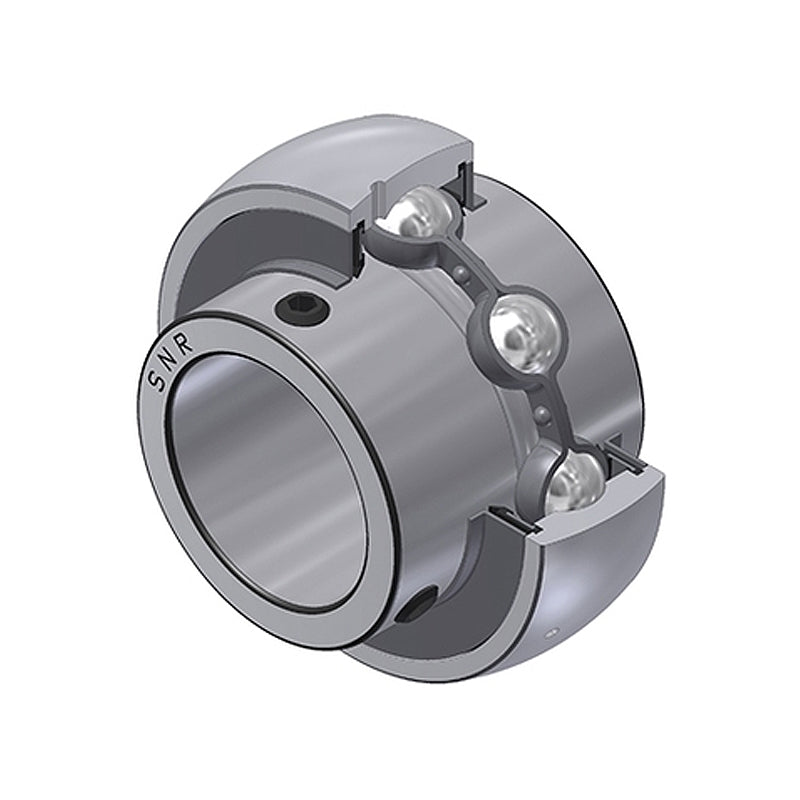

SNR ZUC206FG Metric Full Width Spherical Outer Food Safe Bearing Insert 30mm Bore 62mm Outside Diameter with Grub Screws - Allow 2-3 Days
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
SNR ZUC-FG Full Width Spherical Outer Bearing Insert with Grub Screws: This bearing insert offers a reliable solution for food applications where direct contact with foodstuffs is not required. Each steel insert is equipped with a single lip seal and slinger on both sides and features a wide inner ring design. It is zinc-coated and filled with food-grade grease, providing a cost-effective alternative for food applications. Additionally, it provides additional protection against particles and is suitable for medium to high rotation speeds, ensuring dependable performance in various food-related environments.
Benefits: High-quality brand, high-performance, precision-engineered
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- M6x1
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Width:
- 38.1mm
- Style:
- ZUC
Technical
| d | 30mm |
|---|---|
| D | 62mm |
| C | 19mm |
| B | 38.1mm |
| S | 15.9mm |
| m | 5.5mm |
| C1 | 5mm |
| r min | 0.6mm |
| G | M6x1 |
| Wrench Size | 3mm |
| Set screw torque | 5.5 Nm |
| Min Temp | -20 deg C |
| Max Temp | 100 deg C |
| Dynamic load rating C | 19.5kN |
| Static load rating C0 | 11.2kN |
| Weight | 0.3kg |
