SKU: ZUC208FG-SNR

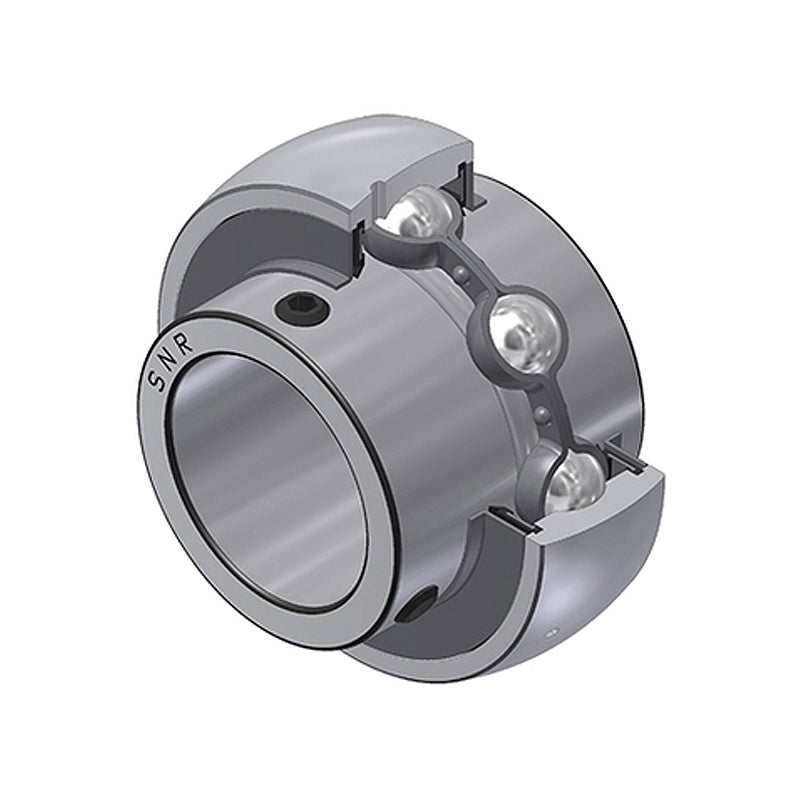

SNR ZUC208FG Metric Full Width Spherical Outer Food Safe Bearing Insert 40mm Bore 80mm Outside Diameter with Grub Screws - Allow 2-3 Days
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
SNR ZUC-FG Full Width Spherical Outer Bearing Insert with Grub Screws: This bearing insert offers a reliable solution for food applications where direct contact with foodstuffs is not required. Each steel insert is equipped with a single lip seal and slinger on both sides and features a wide inner ring design. It is zinc-coated and filled with food-grade grease, providing a cost-effective alternative for food applications. Additionally, it provides additional protection against particles and is suitable for medium to high rotation speeds, ensuring dependable performance in various food-related environments.
Benefits: High-quality brand, high-performance, precision-engineered
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- M8x1
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Width:
- 49.2mm
- Style:
- ZUC

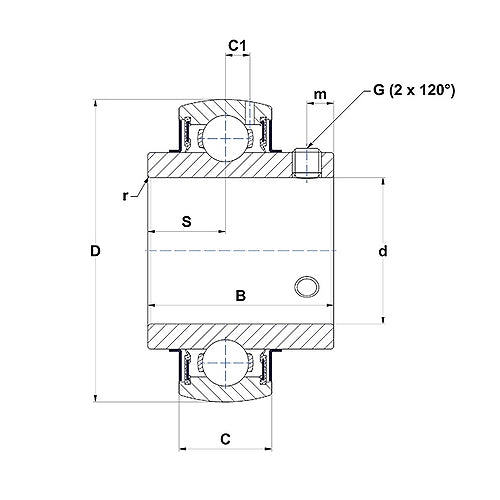

Technical
| d | 40mm |
|---|---|
| D | 80mm |
| C | 21mm |
| B | 49.2mm |
| S | 19mm |
| m | 8mm |
| C1 | 6.3mm |
| r min | 1.1mm |
| G | M8x1 |
| Wrench Size | 4mm |
| Set screw torque | 11.5 Nm |
| Min Temp | -20 deg C |
| Max Temp | 100 deg C |
| Dynamic load rating C | 29.6kN |
| Static load rating C0 | 18.2kN |
| Weight | 0.7kg |
